3.2V high power LiFePo4 Battery cells with long lifecycle, lifepo4 cells, li-polymer high power battery cells

Specifications

1, 3.2V high lifepo4 battery cells
2.long life li-polymer cells
3.lifepo4 3.2V battery cells
4.li-polymer high power battery

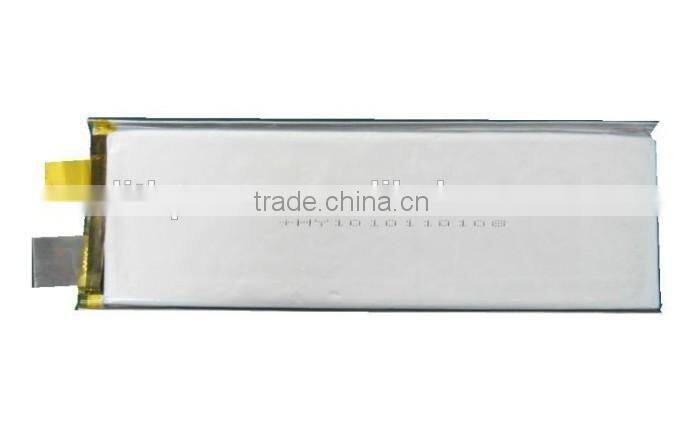

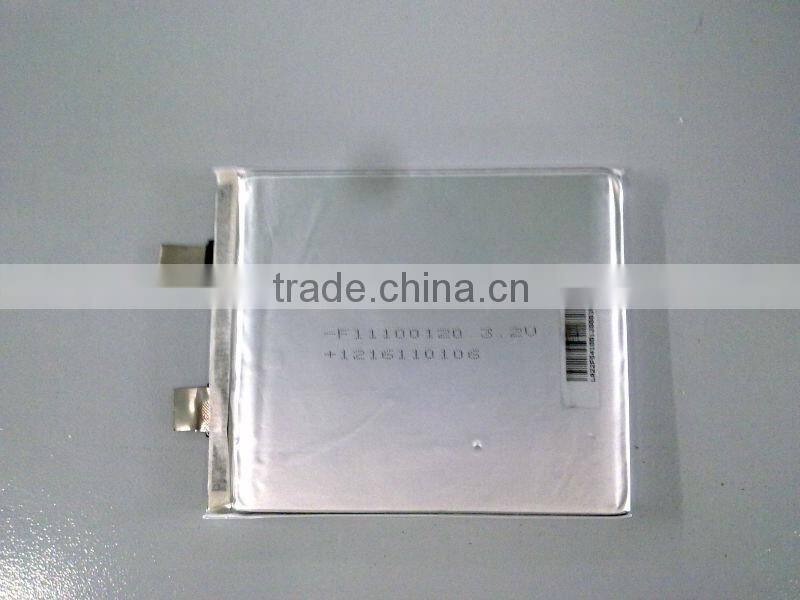

3.2V Designed High Power LiFePO4 Battery cells with Long Lifecycle, Li-polymer lifepo4 high power battery cells, soft pack lifepo4  battery cells 3.2V 5AH/6AH/8AH 10AH and 20AH models

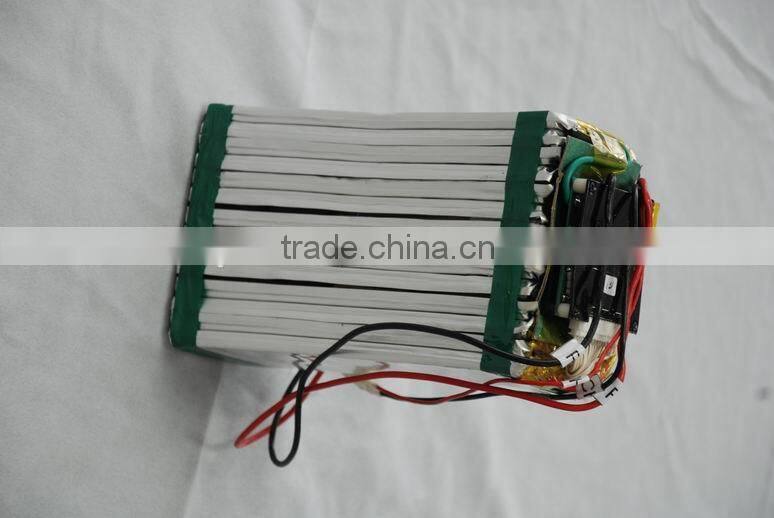

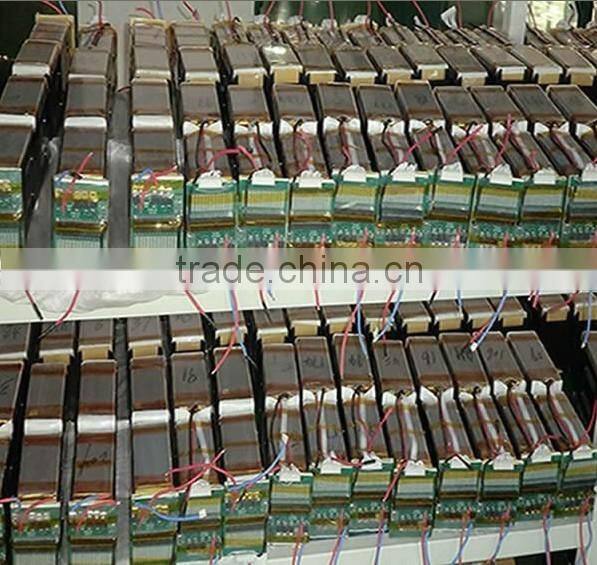

SHENZHNE LITHPOWER provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution.We provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution for our customers.



Model	LP-1S50E	LP-1S60E	LP-1S80E	LP-1S100E
Nominal Capacity	5Ah	6Ah	8Ah	10Ah
Nominal Voltage(V)	3.2V	3.2V	3.2V	3.2V
Max. Voltage(V)	3.65V	3.65V	3.65V	3.65V
Battery Housing	SOFT PACK	SOFT PACK	SOFT PACK	SOFT PACK
Approx. Weight(g)	150g	180G	230G	300G
Approx. Dimensions	Flexible/ Custom as per requests	Flexible/ Custom as per requests	Flexible/Custom as per requests	Flexible/Custom as per requests
Cycle Life(80% DOD)	>2000 cycles	>2000 cycles	>2000 cycles	>2000 cycles
Self-discharge Ratio/month	≤3%	<3%	<3%	<3%



Battery Comparison :

• Smaller size, normally 1/3 as large as conventional SLA battery;
• Lighter weight, normally 1/3 as conventional SLA battery;
• Longer cycle-life, SLA battery is about 300cycles while LiFePO4 battery can be 2000 cycles or more;
• Good performance in deep discharge,LiFePO4 battery can be 100%DOD while SLA battery is 60%∼70%DOD,which means LiFePO4 battery will need less capacity in the same condition;
• Totally environmental-friendly



Features:

A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

B. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.

C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

D. Good performance at high temperature and high temperature resistance

E. Low self-discharge rate, less than 3% monthly.

F. No memory effects and highly efficient charge.

G. Environment friendly: Clean and Green energy poses no pollution on our environment.
