Help CenterLight Weight High Strength Carbon Fiber Pipe 12x10x1000mm 10x8x1000mm 8x6mm 6x4mm
Related Products
-
3K Woven Carbon Fiber TubeUS$ 5 - 50MOQ: 300 Pieces -
Carbon Tube( Roll Wrapped) Not Easy SpitedUS$ 5 - 50MOQ: 300 Pieces
-
Carbon Fiber Roll Wrapped TubeUS$ 5 - 50MOQ: 300 Pieces
-
3K Woven Carbon Fibre Round Tube,pipeUS$ 5 - 100MOQ: 200 Pieces
-
3K Carbon Fiber Tube Pain/twill With Glossy or Matte FinishUS$ 5 - 100MOQ: 200 Pieces
Specifications
1. Light weight , High strength.2. Different size for RC hobby
3. UV Resistant
4.Factory direct made

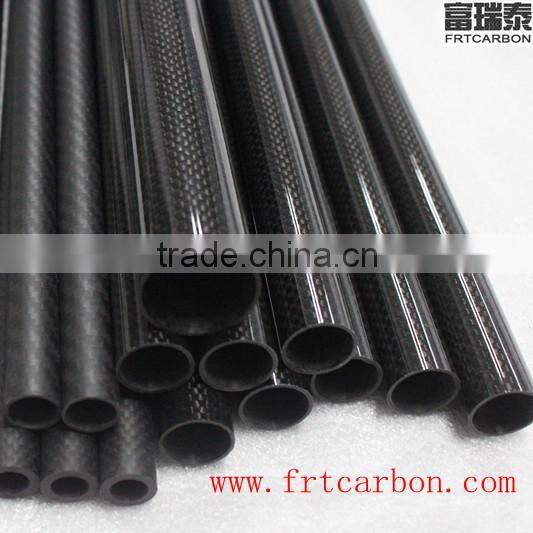

Full carbon fiber tube: This beautiful plain/twill carbon fiber tubing is fabricated from unidirectional carbon fiber with a 3K plain/twill carbon weave outer layer.
The unidirectional layers are oriented to provide high bending stiffness and axial strength,as well as high hoop strength (resistance to crushing from a side load).
The woven plain outer layer provides a support layer with attractive appearance. This product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential and appearance is also important.

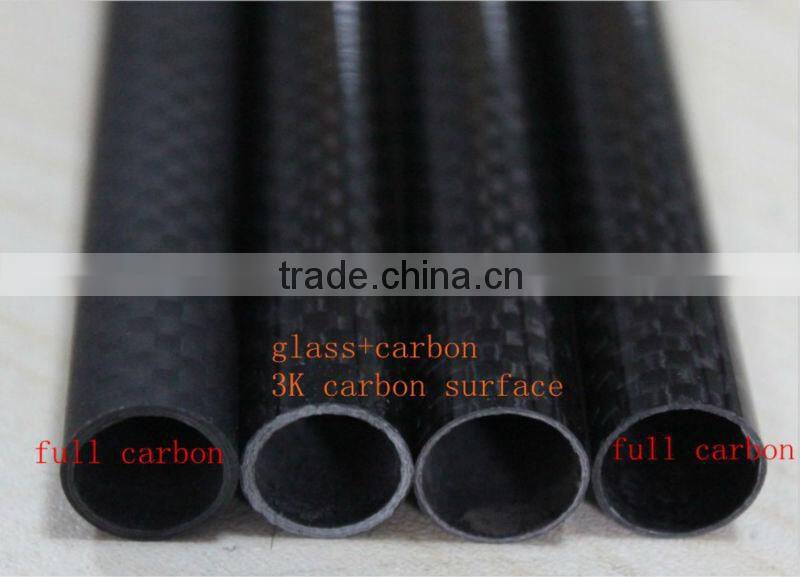

Fake carbon fiber tube(carbon glass tube): is fabricated from glass fiber with a 3K plain/twill carbon weave outer layer.
Specifications: (diameter, outer diameter, length) according to the customer's request .
| FRT CARBON--Round Roll Wrapped Tube Specification Table | |||
| Item NO: | O.D.*I.D.*L(MM) | Wall Thickness(MM) | Material |
| FRT-RWT-001 | 6*4*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-002 | 7*5*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-003 | 8*6*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-004 | 9*7.5*1000 | 0.75mm | Pure Carbon Fiber |
| FRT-RWT-005 | 10*8*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-006 | 11*9*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-007 | 12*10*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-008 | 13*11*1300 | 1mm | Pure Carbon Fiber |
| FRT-RWT-009 | 14*12*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-010 | 15*13*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-011 | 16*15*1000 | 0.5mm | Pure Carbon Fiber |
| FRT-RWT-012 | 16*14*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-013 | 18*16*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-014 | 20*18*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-015 | 22*20*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-016 | 25*23*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-017 | 25*19*1000 | 3mm | Pure Carbon Fiber |
| FRT-RWT-018 | 22*19.5*1000 | 0.75mm | Pure Carbon Fiber |
| FRT-RWT-019 | 25*22*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-020 | 30*28*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-021 | 35*32*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-022 | 40*38*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-023 | 43*41*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-024 | 46*44*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-025 | 53*50*1000 | 1.5mm | Pure Carbon Fiber |
| please contact us for more specifications | |||
Fake carbon fiber tube:
Performance:
|
|
Applications:
|
|
About our factory:
FRT specializing in the manufacture and export of carbon fiber products for 8 years
8 years Alibaba honest member
We take part in different International Exhibition
