RD 80 2D Barcode Scanner Module Support All 1D and 2 D Barcodes

Name: RD 80 2D Barcode Scanner Module Support All 1D and 2 D Barcodes
Brand: Radall
SKU: 101145871
Availability: InStock

US$ 1 - 95 MOQ: 100 Pieces

Key Specifications

Products Status:

Stock

Type:

Barcode Scanner

Scan Element Type:

CMOS

Shenzhen Radall IOT Tech Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Barcode Scanner

Scan Element Type CMOS

Colour Depth Other

Interface Type COM, PS/2, USB, Other, COM, PS/2, USB, RS232

Max Paper Size 4A

Optical Resolution ≥3 mil ( 0.076mm )

Scan Speed 200times/sec

Brand Name Radall

Model Number RD-80

Place of Origin Guangdong, China

Product Description

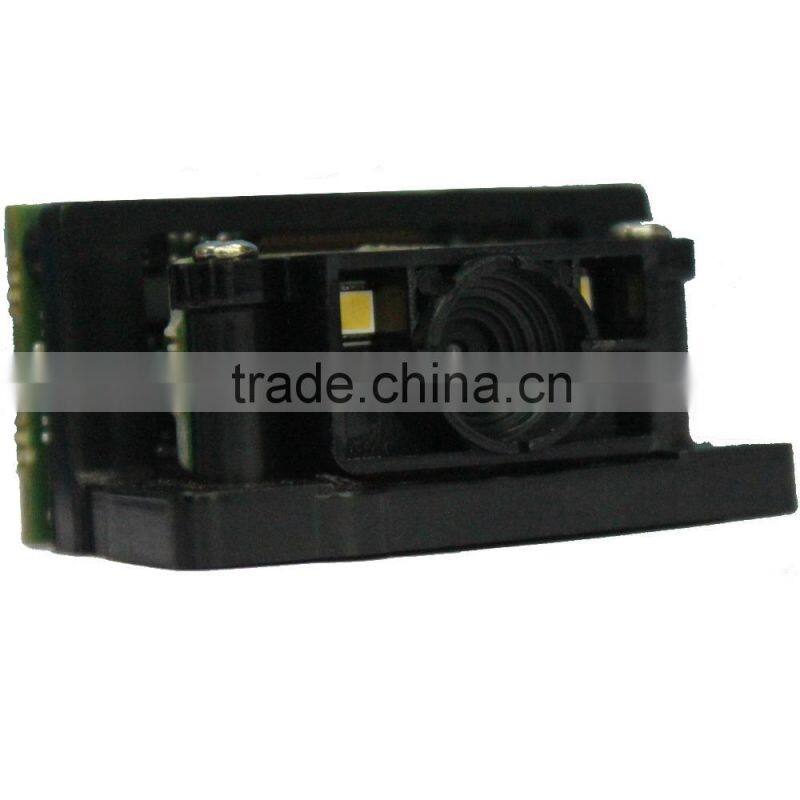

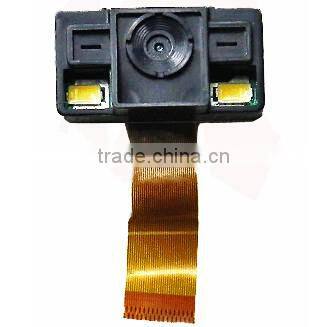

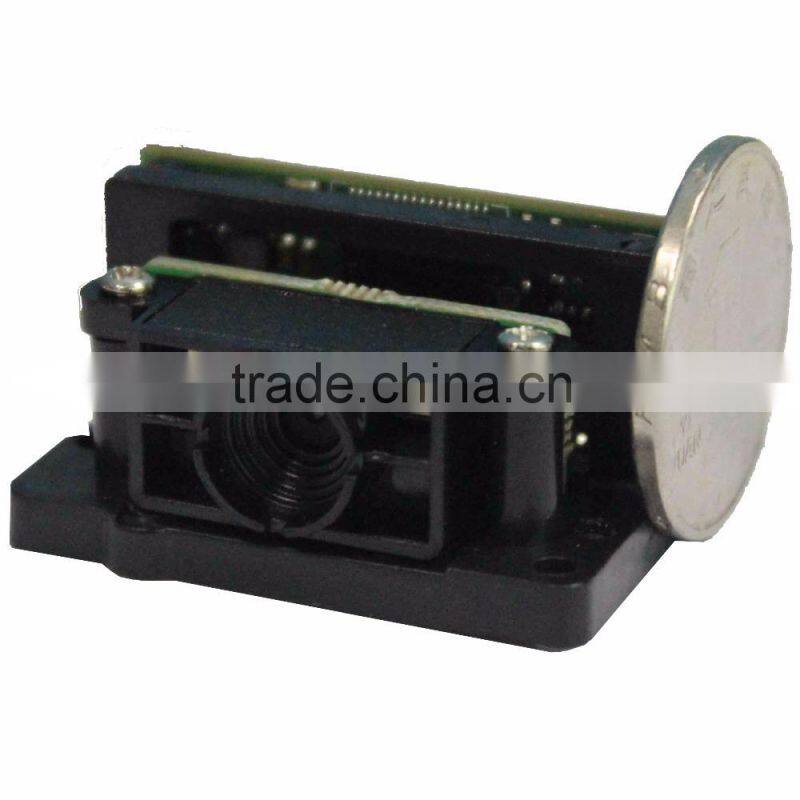

RD-80 2D barcode scanner module QR barcode scanner module

Feature:

Performance
Illumination	630 nm LED
Aiming	528 nm LED
Field of View	34° V x 46° H( (Vertical*Horizontal)
Scan Angles	Tilt: 360°, Pitch: ±65°, Skew: ± 60°
Symbologies	UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32
PDF417 (and Variants)	PDF417, microPDF417 and composite codes
Postal	U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch
2-D	MaxiCode, DataMatrix (ECC 200), and QR Code
Print Contrast	25% minimum reflectance
Motion Tolerance	Horizontal velocity: 5 in. (12.7 cm) per second
Interface	Imager 12- pin board-to- board

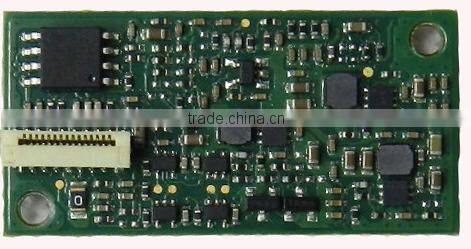

Decoder	RS-232C; USB (Standard, IBM SurePOS, Macintosh)
Interfaces Supported	RS-232C; USB (Standard, IBM SurePOS, Macintosh)
Imaging Characteristics
Image (Pixels)	0.35 Megapixel 752 pixels H x 480 pixels V
Graphics Format Support	Images can be exported as Bitmap, Jpeg, and Tiff
Image Transfer Speed	USB 1.1: Up to 12 Megabits/second RS232: Up to 115 kb baud rate
Image Transfer Time	Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb
User Environment
Operating Temperature	32° to 122° F / 0° to 50° C
Storage Temperature	-40° to 158° F / -40° to 70° C
Humidity	5% to 95%, non-condensing
Drop/Shock Specifications	Withstands 2000g to concrete
Ambient Light Immunity	Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.
