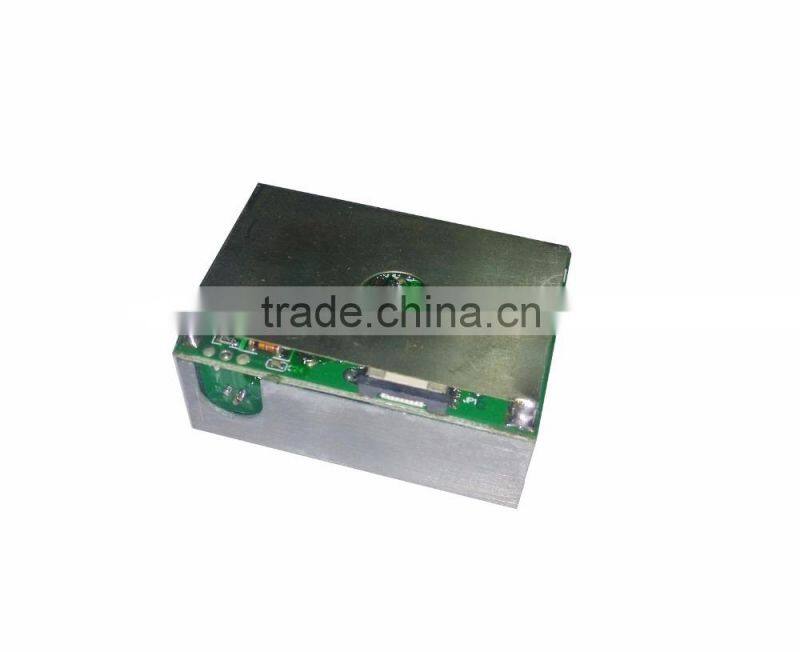

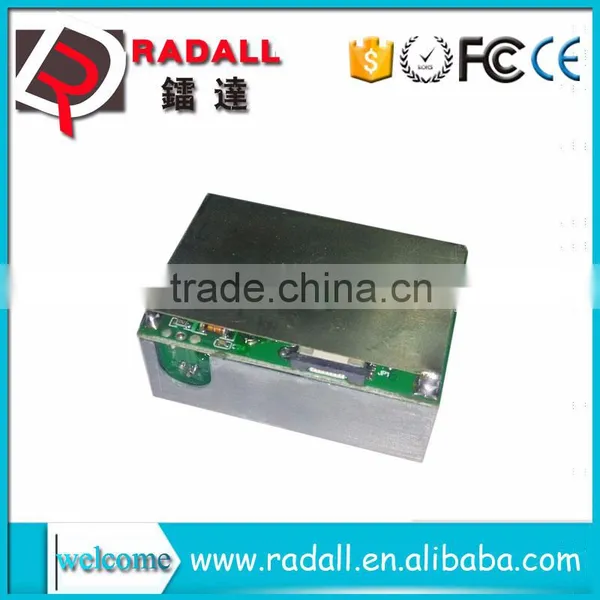

RD1055 32bit Laser Barcode Scanner Engine Including Decoding Function

Name: RD1055 32bit Laser Barcode Scanner Engine Including Decoding Function
Brand: Radall
SKU: 101145803
Availability: InStock

US$ 1 - 20.5 MOQ: 100 Pieces

Key Specifications

Products Status:

Stock

Type:

Barcode Scanner

Scan Element Type:

Other, Laser

Shenzhen Radall IOT Tech Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Barcode Scanner

Scan Element Type Other, Laser

Colour Depth 32 Bit

Interface Type COM, PS/2, USB, Other, COM, PS/2, USB, RS232

Max Paper Size 4A

Optical Resolution 0.10mm(4mil)

Scan Speed 280times/sec

Brand Name Radall

Model Number RD-1055G

Place of Origin Guangdong, China

Trade Assurance!!! RD-1055G 32 bit Laser barcode scanner engine( Including decoding function) laser barcode scanner module

Feature:

Performance Parameter:

Functionality Item	Parameter
Type of illuminant	650nm laser
Use type	manual
Bit error rate (BER)	1/8 million
Safety performance	Meet the Grade II National Criteria for Laser Safety
Barcode types	EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc.
Supported interfaces	RS232, PS2 keyboard, USB, etc.
Scanning method	Manual
Transmission rate	RS232 Baudeate:2400-38400
Resolution (pcs0.9)	0.10mm(4mil)
Depth of field	10-350mm (pos09 density 0.25)
decode speed	280 times/second
Reading preciseness	0.40-0.825mm
Reading distance	10-800mm
Reading angle of elevation	60°
Reading angle of dip	45°
Operating temperature	-20°C-45°C
Storage temperature	20°C-45°C
Operating humidity	5%-85%
Storage humidity	5%-85%
Power voltage	5V
Working current	57mA
Static current	36mA
Fall test	100 times/1.5m
Light intensity	Daylight, 4000Lux
Electromagnetic interference	Complying with en50081, par1 criteria
External electromagnetic interference resistance	Complying with en50081, par1criteria
Dustproofing and waterproofing	Complying with en50081, par1 criteria
Exterior dimension	LengthWidthHeight: 40mm * 33mm * 17mm
Materials	electronic
Weight	34g
