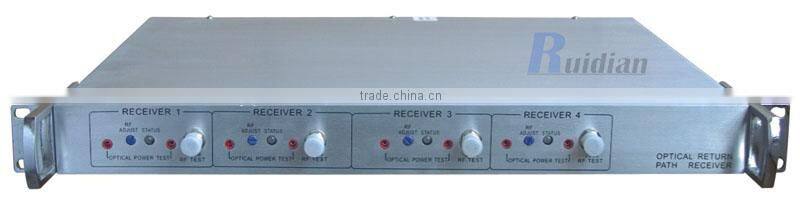

Four ways 1550nm tv optical receiver
1. Designed for receiving upstream signal and transmitting return signal to distribution hub or head-end.
2. Can accept video, audio or the mix of these signals.
3. RF test point and optical photocurrent test points for each receiver on the front of the chassis.
4. RF output level can be manually adjusted through the use of an adjustable attenuator on the front panel.
Optical |
Index |
Optical wavelength |
1290nm to 1600nm |
Optical input range |
-15dB to 0dB |
Fiber connector |
SC/APC or FC/APC |
RF |
|
Optical output level |
>100dBuV |
Bandwidth |
5-200MHz/5-65MHz |
RF impedance |
75Ω |
Flatness |
±0.75Db |
Manual Attenuation Range |
20dB |
Output return loss |
>16dB |
Test points |
-20dB |
More about our service:
1) Welcome to order on the alibaba Wholesale Checkout Service,you can play order on line and pay,it's easy to do it.
2) For More Sport order,please contact us about your order with your demand and we give more competitive price to you and will send order invoice for you,after your confirm,and then make the payment,at last ship to you after the payment be confirmed.We keep big stocks every day!
3) OEM/ODM service available and custom designs are welcomed! We can offer you premium quality,competitive price,print your LOGO free ,Quality for your any request.
1) Sport order shipment time: we ship to you at 1-2 days (Depends on the Qty) after advanced payment received
2) Production time:7-15days with OEM order (Depends on the Qty) after advanced payment received
3) Shipping ways: ship by Fedex,DHL,UPS,TNT,EMS,Hong Kong Airmail Post,China Post Air and so on.
1) Escrow on line
2) Paypal
3) T/T ( Bank Transfer)
4) Western Union
5) Credit card
For Large quantity or OEM order service, 30% first, 70% balance before delivery.
we offer more buyer protection for you,so you don't worry about your order:
1) Full Refund if you don't receive your order
2) Refund or Keep items not as described
If you need 1550nm optical receiver/tv optical receiver ,Please contact with me without hesitation!
