L band satellite optical receiver made in china
- 10000 Piece / Pieces per Month
- Shanghai/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- SF-9505C HD 1080P digital hd satfinder
- SF-9505C HD Signal Finder Meter Digital Satellite Finder
- Wholesale Satlink SF-9505C satellite finder digital
- Factory Price Satlink Satellite Finder Meter
- HD Satellite Finder Signal Sat Finder Meter With Short Patch
- Cheap Price Wholesale Light Weight Sat Dish TV Satellite Amplifier Signal Finder
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Ruidian | Model Number: | RD-120F |
FTA(Free To Air): | Yes | Type: | Digital | High Definition: | Yes |
Product Description
Specifications
1.L band satellite optical receiver made in china2.Standard type
3.-13~+2dBm input power range
4.950~2600MHz
5.Wall type

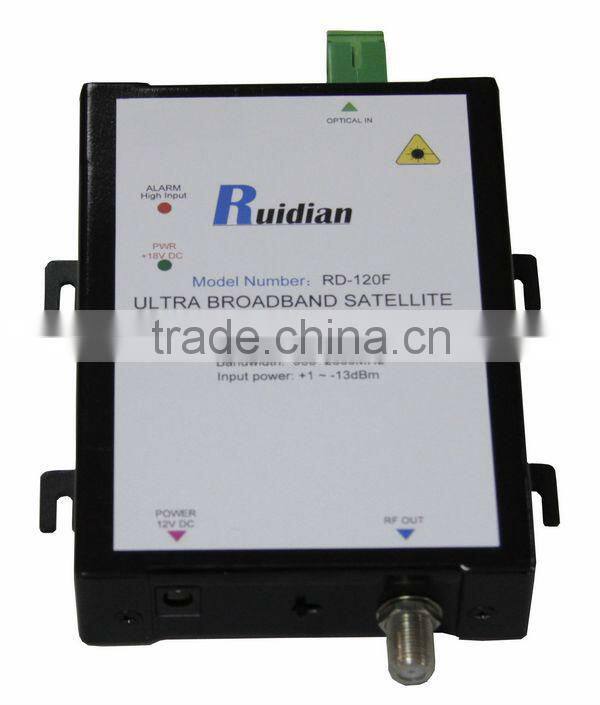

L band satellite optical receiver made in china
(Build-in Filter)
The RD-120R L-Band Satellite Product Series is a kind of SAT-IF Optical Receiver with high performance and high index. Working in 950-2600MHz bandwidth, with low power consumption, suitable for FTTH, FTTP fiber access network. It is really an excellent cost performance DBS network ONU.
RF Typical Performance | |||||||
Parameter | Units | Min Typical Max Supplement | |||||
Frequency | MHz | 950 | 2600 | ||||
Output Level | dBµv | 68 | 88 | ||||
Flatness | dB | ±1.75 | 950~2600MHz | ||||
Port | 1 | ||||||
RF port | F-female | ||||||
Return loss | dB | -13 | |||||
Output Impedance | Ω | 75 | |||||
CNR | dB | 40 | |||||
IMD | dB | 40 | |||||
Optical Typical Performance | |||||||
Parameter | Units | Min Typical Max Supplement | |||||
Wavelength | nm | 1530 | 1550 | 1570 | |||
Responsivity | A/W | ≥0.9 |
| ||||
Return loss | dB | ≥55 | |||||
Input optical power | dBm | -13 | +2 | ||||
Optical connector | SC/APC | SC/APC or FC/APC | |||||
General feature | |||||||
Parameter | Units | Min Typical Max Supplement | |||||
Power supply | V | 12 | |||||
Power consume | mA | 80 | 90 | 100 | |||
Work temp | °C | -20 | +55 | ||||
Storage temp | °C | -40 | +85 | ||||
Size | cm | 16*10.5*2.8 | W×D×H |
Key Features |
High bandwidth 950~2600MHz |
Low light-receiving -13dBm |
Wavelength 1260~1600nm |
Wall-mounted metal housing |
F-female 75ohm RF Output |
Main application |
Satellite FTTH networks |
L-Band fiber distribution networks |
we offer more buyer protection for you,so you don't worry about your order:
1) Full Refund if you don't receive your order
2) Refund or Keep items not as described
1) Escrow on line
2) Paypal
3) T/T ( Bank Transfer)
4) Western Union
5) Credit card
For Large quantity or OEM order service, 30% first, 70% balance before delivery.
If you need L band satellite optical receiver made in china ,please contact with me without hesitation:
