FTTH Two Ways CATV Fiber Optic AGC Receiver price

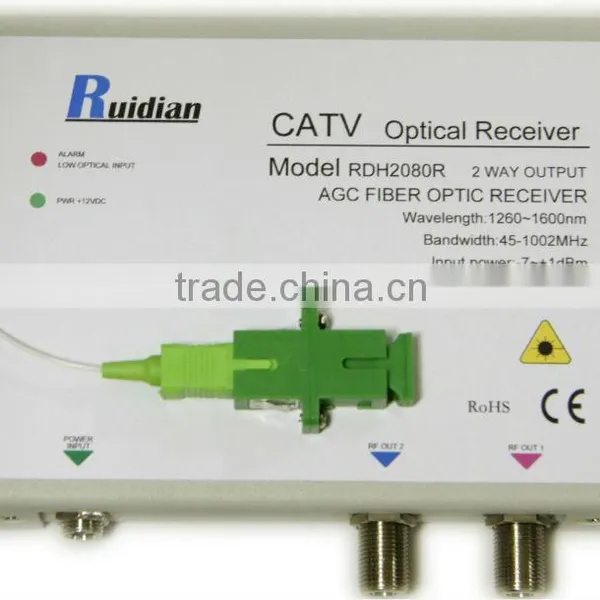

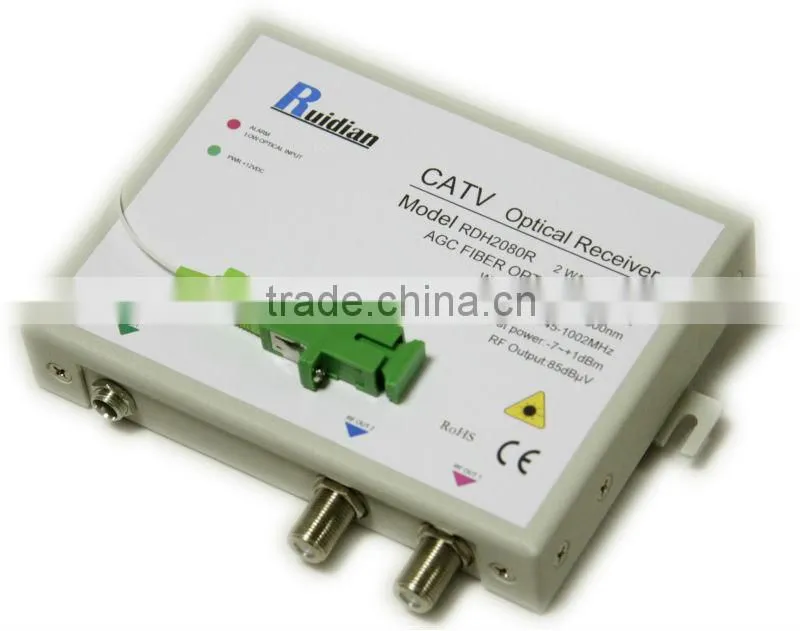

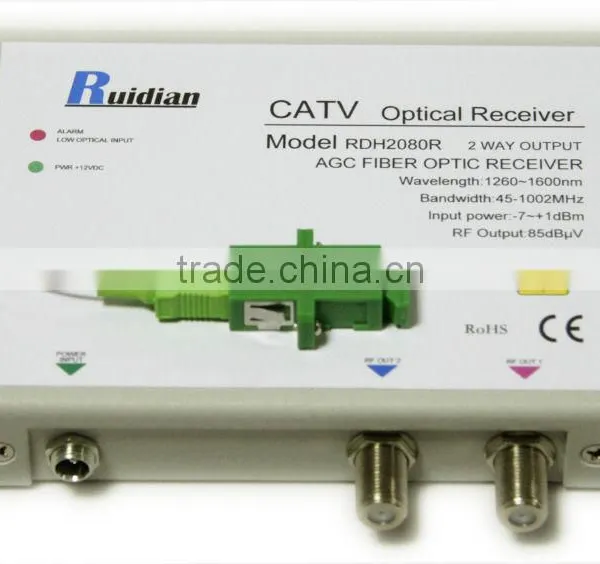

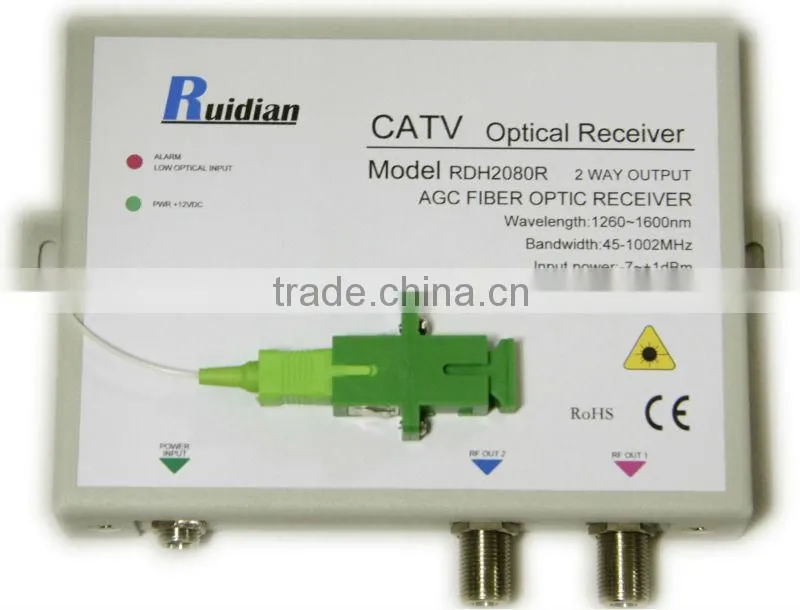

The RDH2080R FTTH 2 Ways output CATV AGC receiver with work bandwidth 45-1002MHz, AGC function, output level Vo=85dBµV±1dB(Pin=-7~+1dBm), applies to FTTH system, it is a low power consume, high performance ONU for RFTV broadcast network.
RDH2080R adopt high sensitivity optical receiving tube and Ruidian specialized low noise match circuit, 3.5%modulate full channel transmit power receiving and the CNR can reach high index 46dB. RDH2080R has three types according to different functions. RDH2080R is standard type, RDH2080F is build-in filter, RDH2080D is build-in WDM widely used in PON systems. Customer could choose the suitable model according to their systems application.
Feature
1.FTTH two ways CATV home optic receiver
2.With AGC function
3.Wall type
4.45~1002MHz
5.Output level 84~86dBuV
RF Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Frequency |
MHz |
45 |
1002 |
|||
Flatness |
dB |
±0.75 |
||||
AGC |
dB |
±1 |
Pin:-7~+1dBm |
|||
Port |
2 |
|||||
RF port |
F-female |
|||||
Output level |
dBµv |
84 |
85 |
86 |
Pin:-7~+1dBm |
|
Return loss |
dB |
-16 |
||||
Output Impedance |
Ω |
75 |
||||
CNR |
dB |
46 |
||||
CSO |
dB |
66 |
||||
CTB |
dB |
68 |
||||
Optical Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Wavelength |
nm |
1260 |
1600 |
|
||
Responsivity |
A/W |
≥0.9 |
|
|||
Return loss |
dB |
≥55 |
||||
Receiving power |
dBm |
-7 |
+1 |
|||
Optical connector |
SC/APC |
SC/APC or FC/APC |
||||
General feature |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Power supply |
V |
11 |
12 |
13 |
||
Power consume |
W |
3 |
||||
Work temp |
°C |
-20 |
+55 |
|||
Storage temp |
°C |
-40 |
+85 |
|||
Size |
cm |
14*10*2.4 |
W×D×H |
|||
Key Features |
Optical CATV home receiver |
Ultra low noise technology |
Very low distortion |
Wide range of optical input power |
Single-mode fiber high return loss |
F-female 75 ohm RF output |
Main application |
CATV HFC networks |
FTTH FTTP networks |
We are pefesional optical fiber quipement manufacture in china. We are your best choice.
If you FTTH optical receiver,please contact with me without hesitation.
