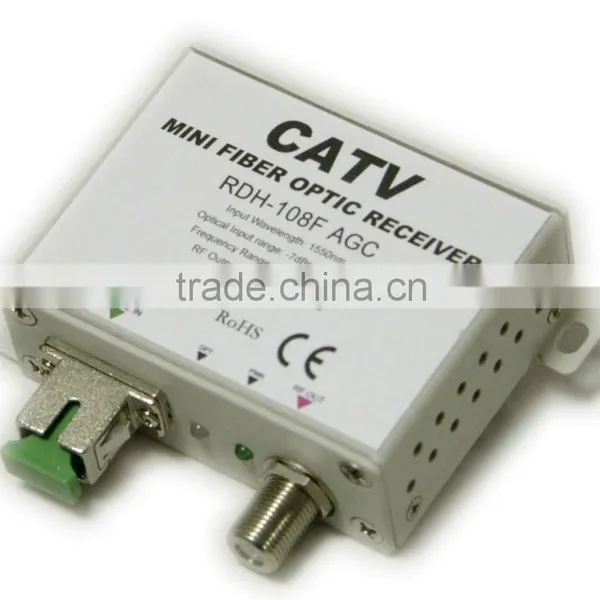

FTTH CATV Fiber Optic mini Receiver Built in Filter RDH-108F
Description
The RDH-108F FTTH 1 Way output CATV AGC receiver with work bandwidth 45-1000MHz, AGC function, output level Vo=76dBµV±1dB(Pin=-7~+1dBm), applies to FTTH system, it is a low power consume, high performance ONU for RFTV broadcast network. RDH-108F adopt high sensitivity optical receiving tube and Ruidian specialized low noise match circuit, 3.5%modulate full channel transmit power receiving and the CNR can reach high index 46dB. RDH-108R has two types according to different functions. RDH-108R is standard type, RDH-108F is build-in filter, RFTV operating in 1550nm. Customer could choose the suitable model according to their systems application.
Feature
1.FTTH optic Fiber communication mini receiver buit in filter
2.Small size wall type
3.With AGC function
4.45~1000MHz
5.Output level 75~77dBuv
RF Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Frequency |
MHz |
45 |
1000 |
|||
Flatness |
dB |
±0.75 |
||||
AGC |
dB |
±1 |
Pin:-7~+1dBm |
|||
Port |
1 |
|||||
RF port |
F-female |
|||||
Output level |
dBµv |
75 |
76 |
77 |
Pin:-7~+1dBm |
|
Return loss |
dB |
-16 |
||||
Output Impedance |
Ω |
75 |
||||
CNR |
dB |
46 |
||||
CSO |
dB |
65 |
||||
CTB |
dB |
67 |
||||
Optical Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Wavelength |
nm |
1540 |
1550 |
1560 |
|
|
Responsivity |
A/W |
≥0.9 |
|
|||
Return loss |
dB |
≥55 |
||||
Receiving power |
dBm |
-7 |
+1 |
|||
Optical connector |
SC/APC |
SC/APC or FC/APC |
||||
General feature |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Power supply |
V |
11 |
12 |
13 |
||
Power consume |
W |
2 |
||||
Work temp |
°C |
-20 |
+55 |
|||
Storage temp |
°C |
-40 |
+85 |
|||
Size |
cm |
8*7*2.4 |
W×D×H |
|||
Key Features |
Optical CATV home receiver |
Ultra low noise technology |
Very low distortion |
Wide range of optical input power |
Single-mode fiber high return loss |
F-female 75 ohm RF output |
Main application |
CATV HFC networks |
FTTH FTTP networks |
