Key Features
l Convenient one-button testing
l High speed signal processing, less test time and fast analysis
l Color TFT LCD
l USB port connect to PC
l Input optical signal auto detection and self-protection
l Built-in VFL

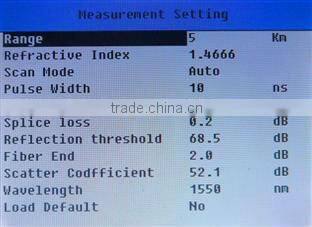

The friendly User Interface
The friendly user interface shows details of the event list in a clear and big screen.
Coordinated with the distinctive designed keyboard operation,

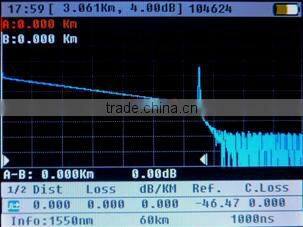

displaying of event trace in a clear and brief way for trace zooming in or zooming out.
Specification
AOR500-A |
AOR500-B |
|
Wavelength |
1310±20nm / 1550±20nm |
|
Dynamic Range |
28dB / 26dB |
32dB / 30dB |
Event Dead Zone |
< 1.5m |
|
Attenuation Dead Zone |
< 8.0m |
|
Pulse Width |
10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1.0us, 2.5us |
|
Distance uncertainty |
±(1.0m ± 0.005% * testing distance ± resolution) |
|
Linearity |
±0.05dB/ dB |
|
Loss Resolution |
0.001dB |
|
Distance Resolution |
1m |
|
Connector |
FC, SC |
|
VFL |
1mW |
|
Data Storage |
> 1000 traces (standard 1GB SD card) |
|
Display |
3.5 inch TFT color LCD |
|
Interface |
USB |
|
Battery |
Built-in rechargeable battery |
|
Working Time |
>10 hrs (Bellcore TR-NWT-001138) |
|
Operating Temp. |
-10 -- +40 °C, < 80%RH |
|
Storage Temp. |
-30 -- +60 °C, < 80%RH |
|
Net Weight |
0.9 Kg |
|
Dimension |
230mm×120mm×60mm |
|
Standard Accessories
OTDR |
1 |
AC/DC adapter |
1 |
Operation guide |
1 |
Carrying bag |
1 |
USB cable |
1 |
SD card |
1 |
Calibration certificate |
1 |
