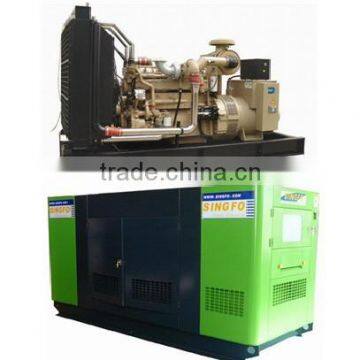

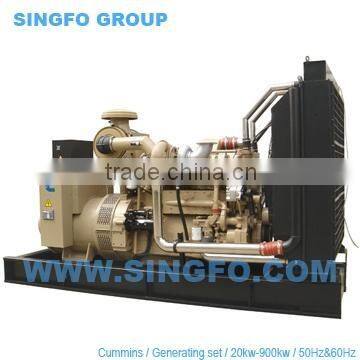

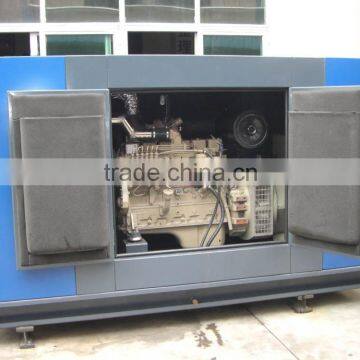

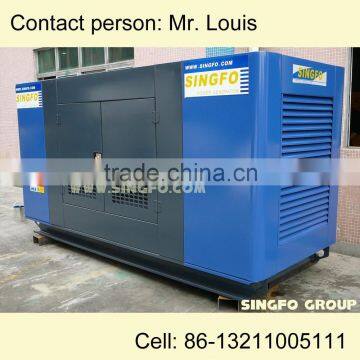

Help Center20-2000KVA Singfo Power Diesel Generator With CE Approval
Related Products
-
Promotion Price for 20-2000KVA Power Diesel Generator With Global Warranty,SINGFO BrandUS$ 5,999 - 99,999MOQ: 1 Unit -
20-2000KVA Diesel Generator Supplier With CE ApprovalUS$ 5,390 - 99,999MOQ: 1 Unit
-
Singfo Brand 50KW Super Silent Diesel Generator for Sale,Global WarrantyUS$ 6,999 - 8,999MOQ: 1 Unit
-
Super Silent Diesel Power Generator With Standby Power 50KVAUS$ 5,800 - 7,850MOQ: 1 Unit
-
Professional Diesel Generator Manufacturer in China With Gobal Warranty and CE ApprovalUS$ 5,999 - 99,999MOQ: 1 Unit
Singfo brand series gensets.
Specifications of Singfo high quality diesel generator
Advantage of 20-2000KVA Silent generator :
1.Perfect all-weather service property
2.The outside steel material features preferable corrosion prevention capability.
3.Special noise elimination setting restrains machinery noise to be lowered below 89db.
20-2000KVA Silent generator Specifications:
1-Output range: 20-2000KVA
2-Noise level: Below to 89dB by 7m distance
3-Water-cooled
4- 8hrs operation base tank
5- Key start / auto start
6- Sound-proof / weather-proof canopy is optional
7-220/400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
8-Frequency: <3%
9- Frequency at stable state: <0.5%
10- Frequency deviation at instantaneous state: &le+10%
11- Frequency return time: &le3s
12- Voltage deviation at stable state: Over 1% or less than 1%
13- Voltage deviation at instantaneous state: &le+20%
14- Voltage return time: &le4s
15-Voltage modulation: &le0.3%
16- Standard configuration.
A-Engine:Cummins and Weichai series diesel engine
B- Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
C-Alternator: Stamford or Marathon alternator
17- Control system:
A-Automatic alarm system: The unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B-Operation display:
I- Unit voltage, tri-phase load current and frequency display
Ii-Water temperature, oil pressure display
Iii-Fuel level, fuel temperature display
Iv-Audible and visual alarm lamps and buzzers
18- Starting system: DC alternator is used to start engine
19-Short circuit protection: MCCB air switch
| Diesel generator Combination | Standby Power | Rated Power | Power for Engine and Alternator | ||||
| Engine | Alternator | kva | kw | kva | kw | Engine | Alternator |
| 4B3.9-G2 | PI144D | 22 | 18 | 20 | 16 | 24kw/30kva | 16kw/20kva |
| 4B3.9-G2 | PI144E | 28 | 22 | 25 | 20 | 24kw/30kva | 20kw/25kva |
| 4B3.9-G2 | PI144F | 30 | 24 | 27 | 22 | 24kw/30kva | 22kw/27.5kva |
| 4BT3.9-G2 | PI144G | 33 | 26 | 30 | 24 | 36kw/40kva | 24kw/30kva |
| 4BT3.9-G2 | PI144H | 39 | 31 | 35 | 28 | 36kw/40kva | 28kw/35kva |
| 4BT3.9-G2 | PI144J | 44 | 35 | 40 | 32 | 36kw/40kva | 32kw/40kw |
| 4BTA3.9-G2 | PI144K | 47 | 37 | 43 | 34 | 50kw/62.5kva | 34kw/42.5kva |
| 4BTA3.9-G2 | UCI224D | 55 | 44 | 50 | 40 | 50kw/62.5kva | 40kw/50kva |
| 4BTA3.9-G2 | UCI224E | 62 | 50 | 56 | 45 | 50kw/62.5kva | 48kw/60kva |
| 6BT5.9-G2 | UCI224F | 80 | 64 | 73 | 58 | 87kw/109kva | 58kw/72.5kva |
| 6BT5.9-G2 | UCI224G | 94 | 75 | 85 | 68 | 87kw/109kva | 68kw/85kva |
| 6BT5.9-G2 | UCI274C | 103 | 83 | 94 | 75 | 87kw/109kva | 80kw/100kva |
| 6BTA5.9-G2 | UCI274C | 110 | 88 | 100 | 80 | 110kw/135kva | 80kw/100kva |
| 6BTA5.9-G2 | UCI274D | 124 | 99 | 113 | 90 | 110kw/135kva | 91.2kw/114kva |
| 6BTAA5.9-G2 | UCI274E | 138 | 110 | 125 | 100 | 120kw/150kva | 112kw/140kva |
| 6CTA8.3-G2 | UCI274E | 154 | 123 | 140 | 112 | 163kw/204kva | 112kw/140kva |
| 6CTA8.3-G2 | UCI274F | 176 | 141 | 160 | 128 | 163kw/204kva | 128kw/160kva |
| 6CTA8.3-G2 | UCI274G | 200 | 160 | 182 | 146 | 163kw/204kva | 145.6kw/182kva |
| 6CTAA8.3-G2 | UCI274H | 220 | 176 | 200 | 160 | 200kw/250kva | 160kw/200kva |
| 6LTAA8.9-G2 | UCDI274J | 253 | 202 | 230 | 184 | 235kw/294kva | 184kw/230kva |
| 6LTAA8.9-G2 | UCDI274K | 275 | 220 | 250 | 200 | 220kw/240kva | 200kw/250kva |
| NT855-GA | UCDI274K | 275 | 220 | 250 | 200 | 231kw/289kva | 200kw/250kva |
| NTA855-G1A | HCI444D | 313 | 250 | 275 | 220 | 261kw/326kva | 240kw/300kva |
| NTA855-G1B | HCI444D | 330 | 264 | 300 | 240 | 284kw/355kva | 240kw/300kva |
| NTA855-G1B | HCI444ES | 344 | 275 | 313 | 250 | 284kw/355kva | 260kw/325kva |
| NTA855-G2A | HCI444E | 378 | 303 | 344 | 275 | 313kw/391kva | 280kw/350kva |
| NTA855-G4 | HCI444E | 385 | 308 | 350 | 280 | 317kw/391kva | 280kw/350kva |
| NTA855-G7 | HCI444FS | 413 | 330 | 375 | 300 | 343kw429kva | 304kw/380kva |
| NTA855-G7A | HCI444F | 440 | 352 | 400 | 320 | 360kw/450kva | 320kw/400kva |
| KTA19-G2 | HCI444F | 440 | 352 | 400 | 320 | 336kw/420kva | 320kw/400kva |
| KTA19-G3 | HCI 544C | 495 | 396 | 450 | 360 | 403kw/504kva | 360kw/450kva |
| KTA19-G4 | HCI544D | 550 | 440 | 500 | 400 | 448kw/560kva | 400kw/500kva |
| KTA19-G5 | HCI544E | 578 | 462 | 525 | 420 | 470kw/588kva | 480kw/600kva |
| KTA19-G8 | HCI544E | 649 | 519 | 590 | 472 | 510kw/640kva | 480kw/600kva |
