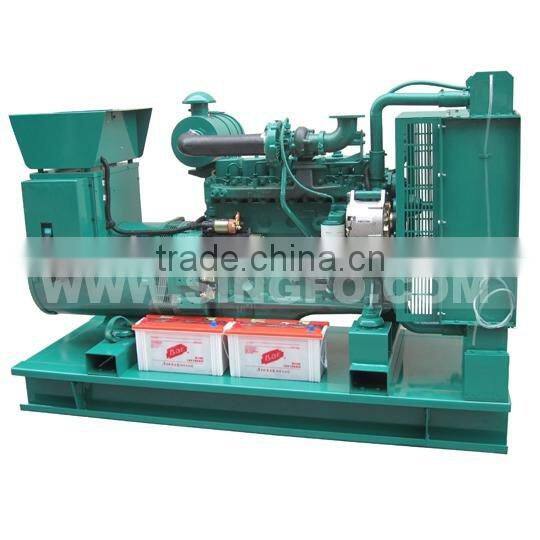

30kw/37.5kva industrial diesel generator

Specifications of  30kw/37.5kva industrial diesel generator

Model: SFJ40

Prime Power: 30KW/37.5KVA

Standby Power: 33KW/41KVA

Engine Brand: Cummins

Engine Model: 4BT3.9-G2

Alternator Brand: Stamford

Alternator Model: PI-144G

Frequency: 60Hz

Rated Voltage: 139/240V

Rated Currency: 91AMP

Controller (Control panel) Brand: Deep Sea or Smartgen

(Digital and intelligent)   LED Screen and touch Buttons’

Main Functions of 30kw/37.5kva industrial diesel generator

1-      Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.

2-      Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3-      Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc

Optional Accessories of 30kw/37.5kva industrial diesel generator

1. ATS (Automatic Transfer switch);

Which can start the diesel generator when the main power is off; when the main power comes back, it will shut down generator.

   And ATS have the function of AMF (automatic Main power failure)

2. MCCB (Molded case circuit breaker);

It can protect the loading machine and the diesel generator.

3. Battery charger (float charger);

When the generator hasn’t been used for a long time, the batteries will be no power, in that way, you can’t start the generator. But the battery charger can charge the batteries from main power.

4. Extra daily fuel tank;

  It will be requested while the base fuel tank capacity is not enough for daily fuel consumption.

5. Paralleling system;

This system can make several generators work together and automatically distribute the load according to set.

6. Remote Control Panel;

Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer.

7. Water separate (additional cooling system);

If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.

8. Spare Parts of Cummins engine;

All the spare parts of each Cummins engine are supplied at very competitive price.
