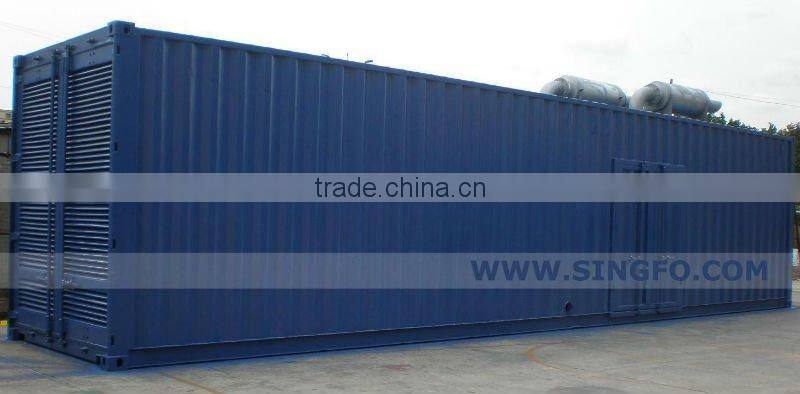

Diesel Generator 1000kva 60/50HZ

Diesel Generator 1000kva 60/50HZ photo-1
Diesel Generator 1000kva 60/50HZ photo-2
Diesel Generator 1000kva 60/50HZ photo-3
Diesel Generator 1000kva 60/50HZ photo-4
US$ 10,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
singfo
Model Number:
SFJ1100
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name singfo
Model Number SFJ1100
Output Type AC Three Phase
Speed 1500r/min
Frequency 50HZ
Rated Power 1000KVA
Rated Voltage 220/380v(Adjustable)
Rated Current 1519Amp

Specifications of  diesel generator 1000kva 60/50HZ

Brand:SINGFO
Model:SFJ1100
Prime Power:1000kva
Standby Power: 1100kva
Frequency:50Hz/60Hz
Voltage:220/380V(ajustable)
Rated Currency:1519A
Fuel consumption:209L/H

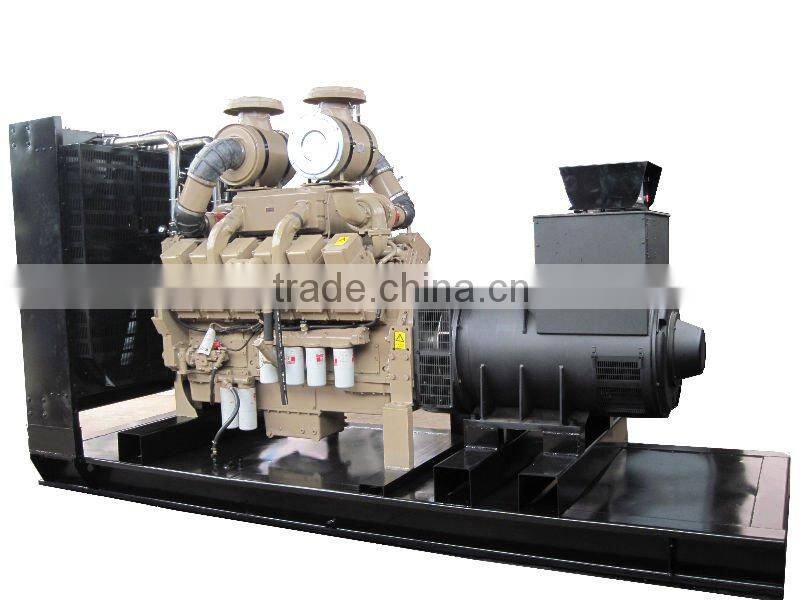

Engine of diesel generator:
Brand:Cummins
Model:KTA38-G5
Displacement:37.8L
Alternator of diesel generator:
Brand:Stamford(Marathon)
Model:HCI634J
Protection:IP23(IP21)



Controller (Control panel) Brand: Deep Sea or Smartgen

(Digital and intelligent)   LCD Screen and touch Buttons’



1000kva Cummins power generator Main Functions

1-      Display loading power, voltages, current, frequency, speed, temperatures, oil pressure, running time etc.

2-      Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3-      Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc



Optional Accessories of 1000kva Cummins power generator

1. ATS (Automatic Transfer switch);

Which can start the diesel generator when the main power is off; when the main power comes back, it will shut down generator.

   And ATS have the function of AMF (automatic Main power failure)

2. MCCB (Molded case circuit breaker);

It can protect the loading machine and the diesel generator.

3. Battery charger (float charger);

When the generator hasn’t been used for a long time, the batteries will be no power, in that way, you can’t start the generator. But the battery charger can charge the batteries from main power.

4. Extra daily fuel tank;

  It will be requested while the base fuel tank capacity is not enough for daily fuel consumption.

5. Paralleling system;

This system can make several generators work together and automatically distribute the load according to set.

6. Remote Control Panel;

Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer.

7. Water separate (additional cooling system);

If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.

8. Spare Parts of Cummins engine;

All the spare parts of each Cummins engine are supplied at very competitive price.

diesel generator 1000kva 60/50HZ



diesel generator 1000kva 60/50HZ





 diesel generator 1000kva 60/50HZ
