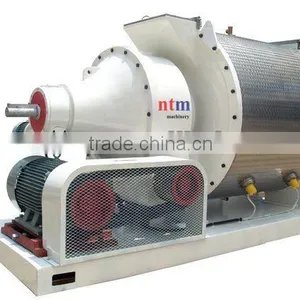

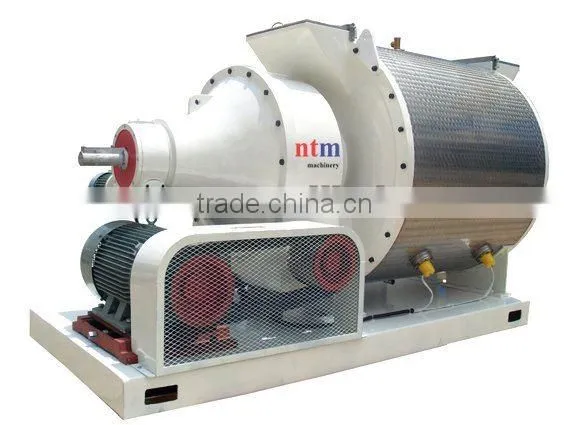

chocolate conche and refiner
Heated by electric power. The behind cover is installed with the ventilating fan, surface cover made by SUS304, others are made by carbon steel with paint.
The material of the lining bars, scrapers are 65Mn after heating treatment, it can prelong their life. The base and gear box are cast iron, so it will be more stable and can make sure the fineness degree.
Technical data
Model |
Max . capacity(L) |
Finesse degree (μm) |
WorkingTime(h) |
power(kw) |
Weight (kg) |
Dimension (mm) |
JMJ40 |
40 |
25-20 |
7-9 |
2.2 |
360 |
1100*800*850 |
JMJ500C |
500 |
25-20 |
14-20 |
11 |
2900 |
2150*1850*1300 |
JMJ500W |
500 |
25-20 |
16-22 |
15 |
3000 |
2150*2000*1300 |
JMJ500C/D |
500 |
25-20 |
14-20 |
11 |
3000 |
2350*1850*1300 |
JMJ500W/D |
500 |
25-20 |
14-20 |
15 |
3100 |
2350*2000*1300 |
JMJ1000C |
1000 |
25-20 |
14-20 |
22 |
4100 |
2980*1250*1650 |
JMJ1000W |
1000 |
25-20 |
14-20 |
22 |
4250 |
2780*1250*1650 |
JMJ2000 |
2000 |
25-20 |
16-22 |
37 |
5300 |
3320*2000*1950 |
JMJ3000 |
3000 |
25-20 |
16-22 |
55 |
8800 |
4200*2000*1950 |
