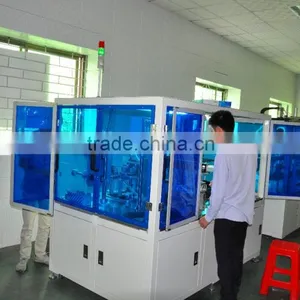

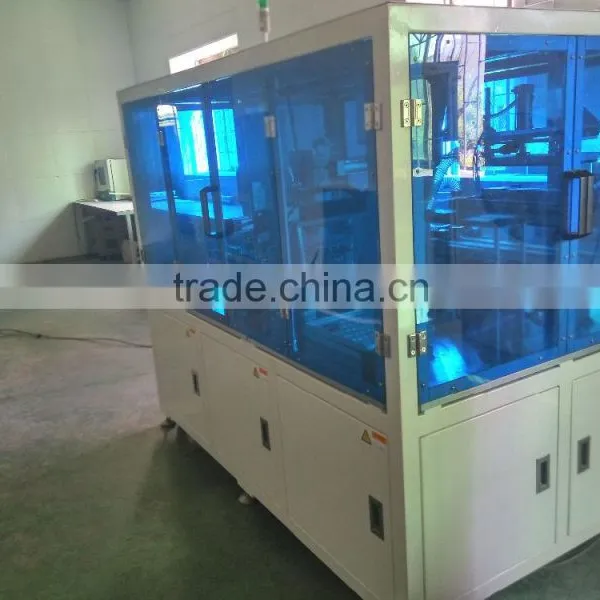

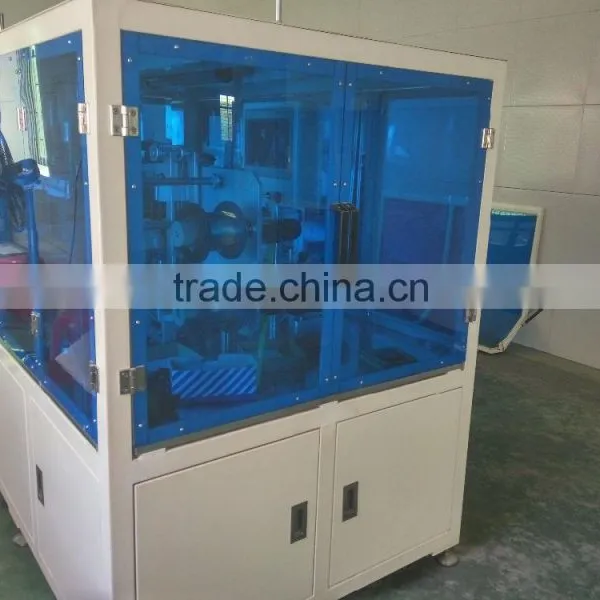

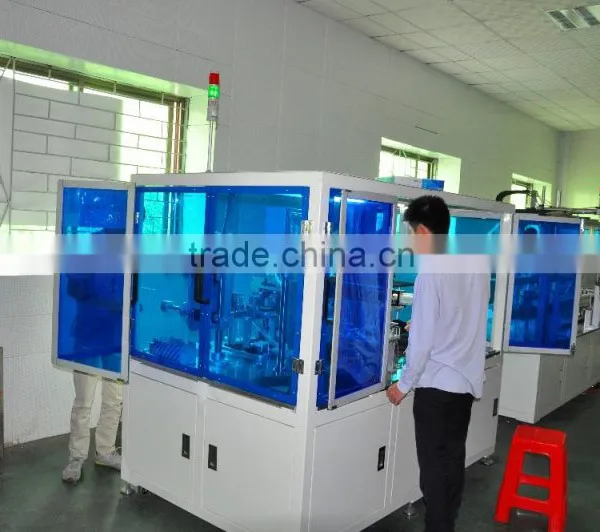

HBS small size automatic welding machine tabber stringer
Main technical parameters
NO. |
Items |
Parameters |
Remarks |
1 |
Name |
solar battery cells tabber stringer |
|
2 |
Model |
HBS-SFX1000A |
|
3 |
Welding Speed |
About 900~1000Pics/Hour |
|
4 |
Battery cells dimension |
14~62.5*52mm; 14~62.5*62.5mm; 14~62.5*78mm |
|
5 |
Maximum length of battery string |
520mm |
|
6 |
Interval between battery cells |
0.8-2.5mm(adjustable) |
|
7 |
Debris rate |
≤3‰ |
|
8 |
Qualified rate |
≥98% |
|
9 |
Welding stings quantity |
single string or two strings at the same time |
|
10 |
Welding way |
Infrared heating welding |
|
11 |
Welding Temperature |
Normal temperature~400℃ (Adjustable) |
|
12 |
Lamp working life |
≥3000 Hours |
|
13 |
Operation Interface |
PLC Touch-screen |
|
14 |
Language |
Chinese or English(switchable) |
|
15 |
Power requirements |
50-60Hz/AC380V |
|
16 |
Peak power |
10Kw |
17 |
Rated power |
8kw |
|
18 |
Air requirements |
0.4-0.8Mpa clean and dry air |
|
19 |
Gas consumption |
About 200Litres/Hour |
|
20 |
Machine dimension |
L2100*W1300*H1800(mm) |
|
21 |
Machine weight |
About 1.5 tons |

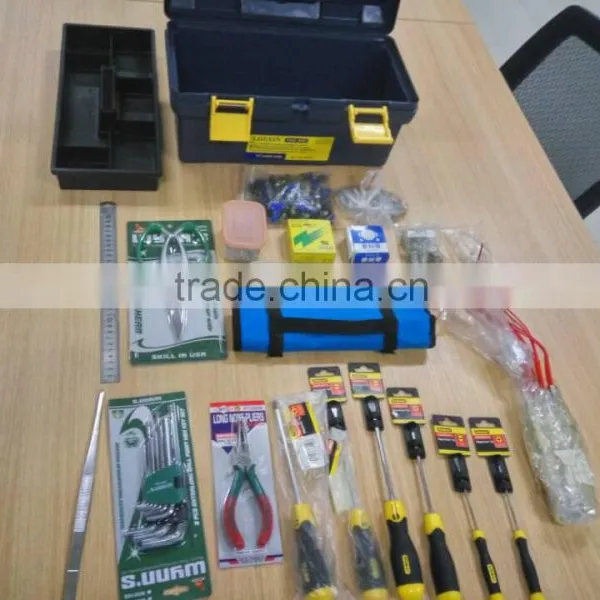

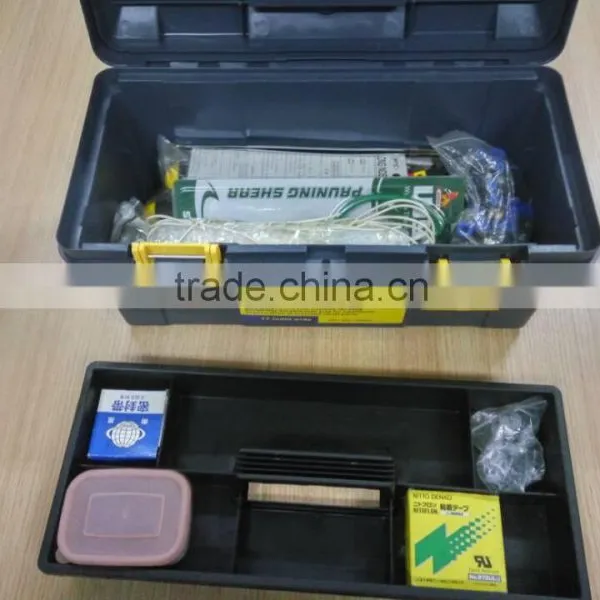

Package and shipping
Welcome to our factory and expect our cooperation
