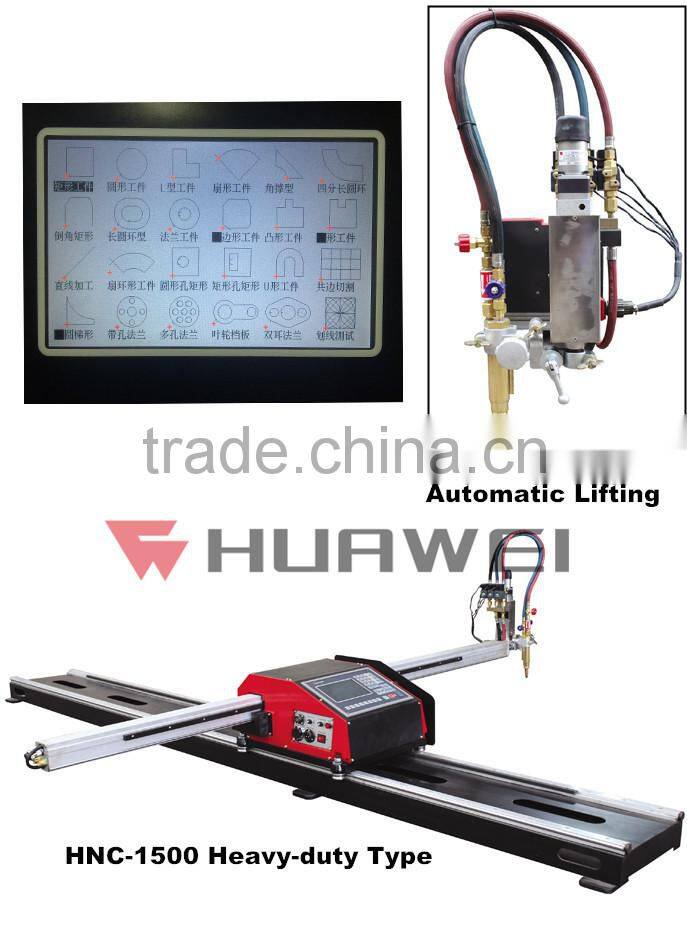

HNC-1500W Portable CNC plasma cutting machine
Host longitudinal rails imported precision dual axis linear guides, horizontal transmission by a precision aluminum extrusions and components, transmission stability, high accuracy Can cut any complex plane
figures for oxyfuel flame cutting and plasma cutting machine, free to move, not accounting for fixed venue. Widely used in automotive, shipbuilding, petrochemical, boiler and pressure vessel, engineering machinery, light machinery and other industries, especially for single-piece contoured surface and mass production.
Product Features
(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,
protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.
| Model |
Cutting Range MM |
Supply Voltage V/HZ |
Cutting TorchNumber of groups |
Cutting speed (mm/min) |
MAX no-loading speed (mm/min) |
Overall dimensions L*W*H |
Weight (kg) |
| HNC-1500W-2 | 1500*2000 | AC220V-50HZ | 1 | 50-750 | 3000 | 2.5*2.2*0.37 | 108 |
| HNC-1500W-2.5 | 1500*2500 | AC220V-50HZ | 1 | 50-750 | 3000 | 3*2.2*0.37 | 121 |
| HNC-1500W-3 | 1500*3000 | AC220V-50HZ | 1 | 50-750 | 3000 | 3.5*2.2*0.37 | 134 |
| HNC-1500W-3.5 | 1500*3500 | AC220V-50HZ | 1 | 50-750 | 3000 | 4*2.2*0.37 | 147 |
| HNC-1500W-4 | 1500*4000 | AC220V-50HZ | 1 | 50-750 | 3000 | 4.5*2.2*0.37 | 160 |
| HNC-1500W-5 |
1500*5000 |
AC220V-50HZ |
1 | 50-750 |
3000 |
5.5 *2.2*0.37 |
186 |
| HNC-1500W-6 | 1500*6000 | AC220V-50HZ | 1 | 50-750 | 3000 | 6*2.2*0.37 | 212 |
1.After quality testing,our products will be well packed.
First plastic film inside
Then Packed by EPE foam
Free fumigation wooden carton outside
The enterprise of Huawei start at 1983 when we produced the first set of electrode dryer. Shanghai Huawei Welding & Cutting Machine Co., Ltd.was incorporated at 1995, which is the leading enterprise in domestic industry and has always specialized in R&D and manufacturing of cutting & welding machinery for 30 years. Our featured products are gas cutting machine series, CNC cutting machine, welding tractor,beveling machine, electrode dryer and oven, and other welding & cutting accessories.
The Company covers an area of 26, 000 m2 and the construction area is 32, 000 m2. There are more than 450 employees and 72 technicians in total together with Shanghai Welding & Cutting Tool Works and Jiangsu Haoguanjia Rubber Industry Co., Ltd. The Company has solid technical force and advanced test equipment. Since its incorporation, the Company has passed ISO9001 Quality Management System Certification and CE
Product Certification successively. Based on the complete selling network and after-sale service, the Huawei brand products gradually occupy the international market and win the trust of customers at home and abroad.
The tenet of the Company is "Strives for the survival by quality, pursue efficiency by the management and seek development with science and technology". We warmly welcome customers to visit our company.
We attent the oversea exhibition each year since from 2010 till now,and we have agent in some country.
Shanghai Huawei Welding&Cutting Machine Co.,LTD
Address: Rongtai Industrial Park, Ecaoshan, Nanshawan, Qianshan, Xiangzhou Dist., Zhuhai, Guangdong, China
Tel: + 86-21-69591999
Fax: +86-21-69597771
P.C:201804
The machine working video please check the our official web:
/en/product/index_detail.aspx?ID=11769
