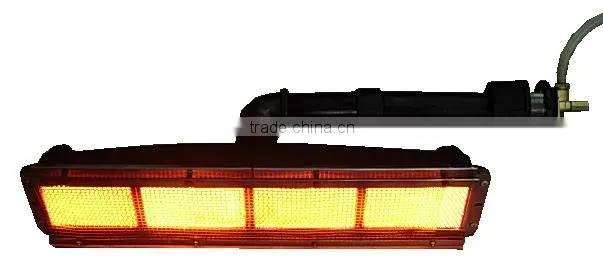

High efficient infrared paint drying heaters
~~Haodong Technology now is the first and only company who apply rare-earth catalytic combustion technology on infrared radiant heater&burner.
It make a whole combustion and save more than 10% energy than non-catalytic IR heater. At the same time,it can prolong the use life of ceramic plate.
Link of TUV report:
https://img13.fr-trading.com/company_profile/capability_assessment.html

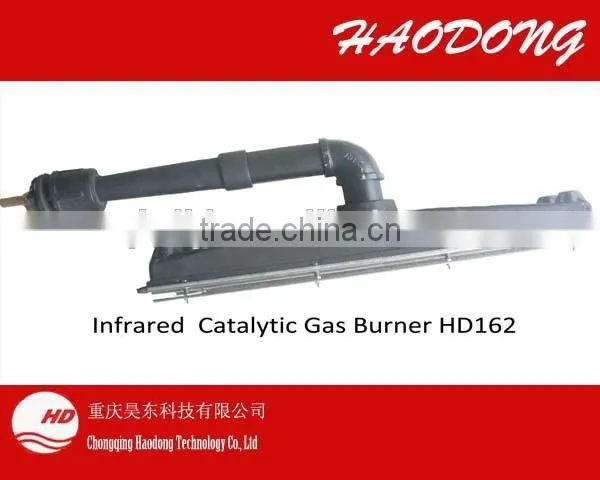

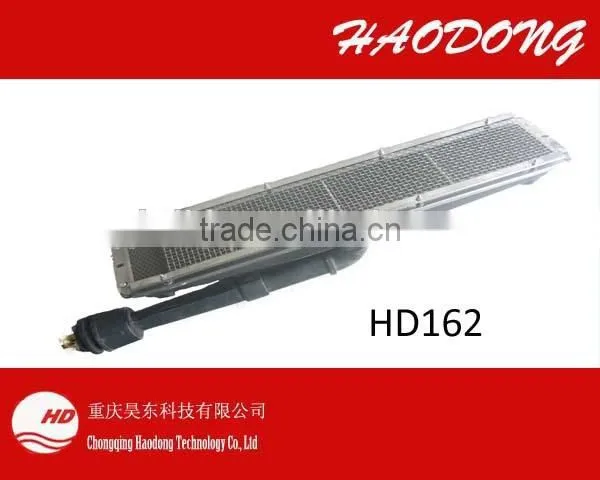

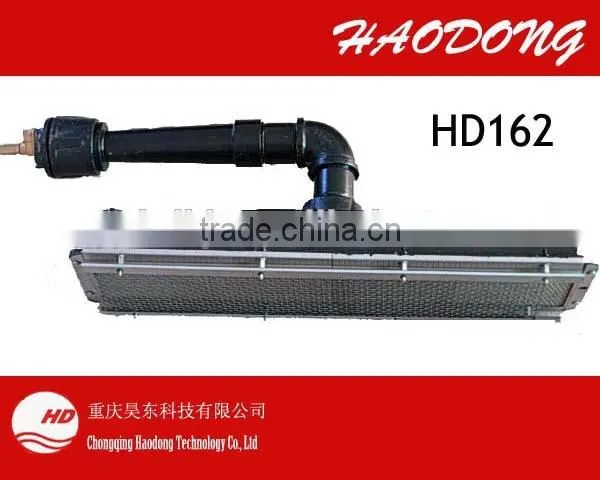

High efficient infrared paint drying heaters
MODEL |
Dimension |
Weight |
GasType |
Heat Output |
Consumption |
||
mm |
kg |
KW/h |
Kcal/hr |
NG(m3/h) |
LPG(kg/h) |
||
HD61 |
423*80*94 |
3.8 |
NG/LPG |
2.4 |
2030 |
0.18 |
0.18 |
HD82 |
219*164*108 |
4.8 |
NG/LPG |
3.1 |
2700 |
0.24 |
0.24 |
HD101 |
690*80*115 |
6.9 |
NG/LPG |
3.9 |
3380 |
0.3 |
0.29 |

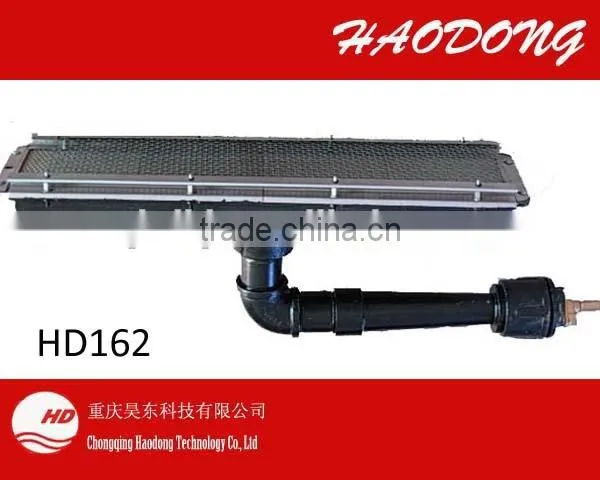

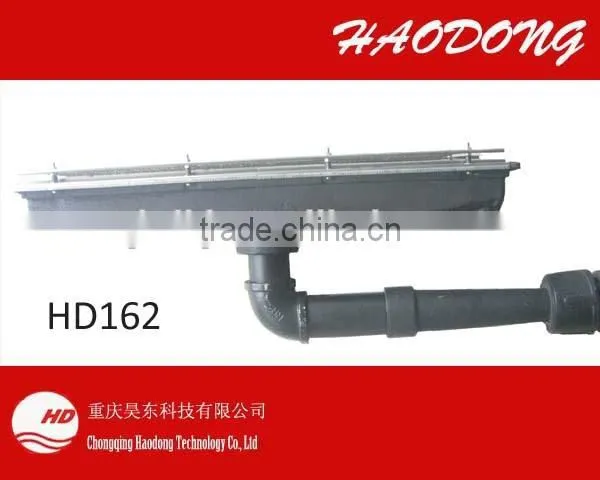

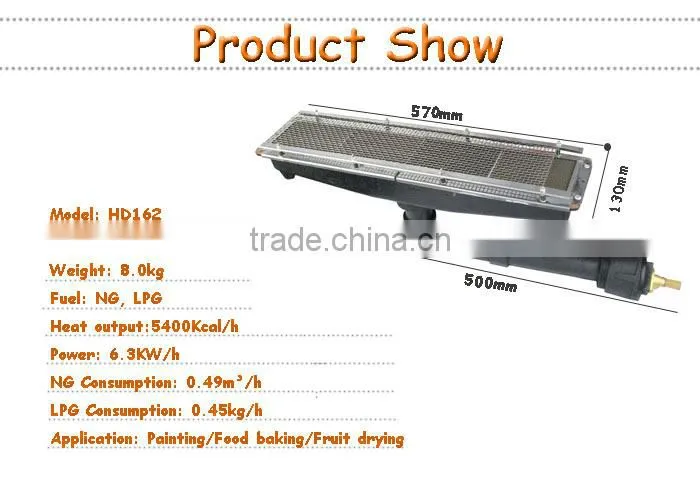

HD162 |
570*130*175 |
8 |
NG/LPG |
6.3 |
5400 |
0.49 |
0.47 |
HD242 |
840*130*175 |
11.7 |
NG/LPG |
9.4 |
8120 |
0.75 |
0.71 |
HD262 |
930*130*175 |
13 |
NG/LPG |
10.9 |
9360 |
0.8 |
0.82 |

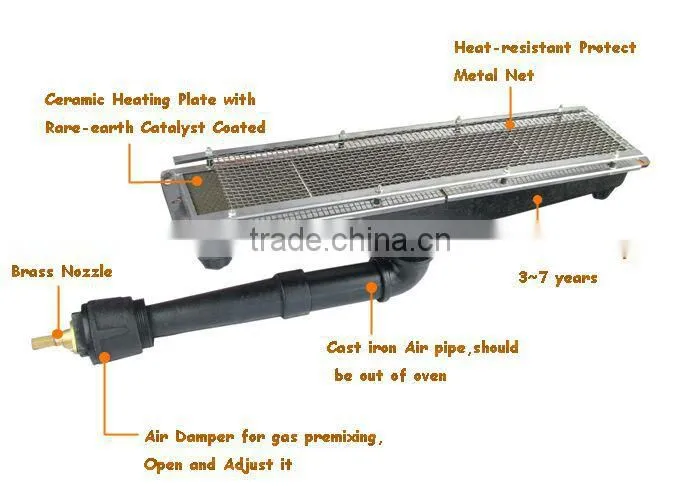

Material:
1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron

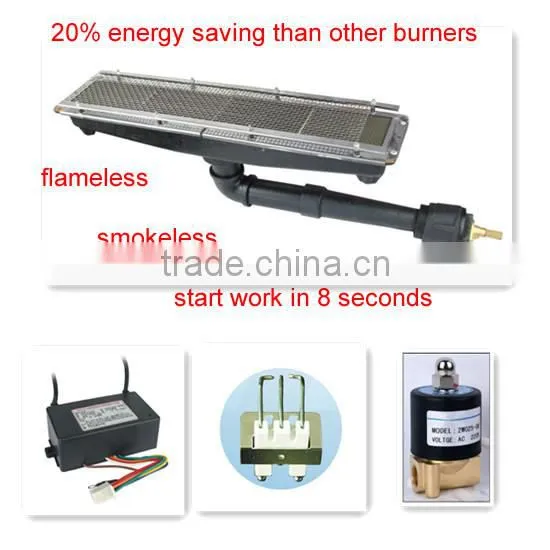

Features:
1. Energy saving: conversion rate:≥90%
2. Environmental protection: COx≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly
4. Long useful time: ≥11000hr
5. Easily installed
6. Charator: Flamelss
7. High efficiency
Advantages:
Comperated with gas burner,infrared gas burner have follow advantages:
- High energy transfer rate, usually the transfer rate can reach 95%,but common gas burner only 75%~80%.
- High efficiency. Infrared burner will be in working condition for 8seconds.And installed with quantity as design, it can reach target temperature in ~10mins for empty oven and 25~40min when with cured objects in oven.
- Single operation, one among them damage will not affect other's work, but if there’s any small problem with the gas burner, the curing will be stopped.
- Heating directly, infrared burner heat object directly through radiation, not need other auxiliary equipment,like combustion chamber, blower….
- Low cost of equipment, martched with accessories,only need temperature controller and pressure instrument,connect them with gas pipes and wires, then it works.
Table 1:Comparison table for all kinds of energy consumption
|
Furnace type Paraters |
Electronic |
Oil furnace |
Coal-fired furnace |
Infrared catalytic heaters |
|
Energy requirement
|
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
Temperature |
180 |
180 |
180 |
180 |
Energy consumption |
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
Heating time |
20 minutes |
40 minutes |
90 minutes |
5-8 minutes |
Applications:
Catalytic infrared gas heater now is widely used for paint drying booth,paint drying oven,paint drying room. It can be used in combination to reach the target heating area. Easy installation,energy saving and high efficiency are its more big advantages.
Infrared gas heater used in motor cover curing oven:

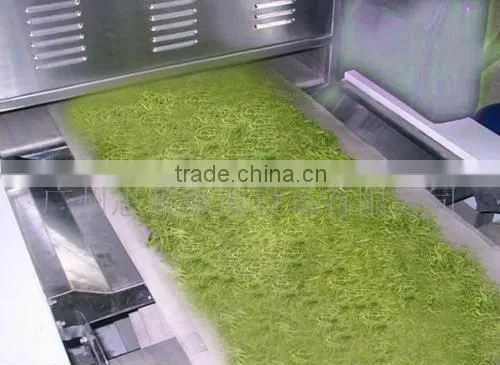

Drying tea leave:

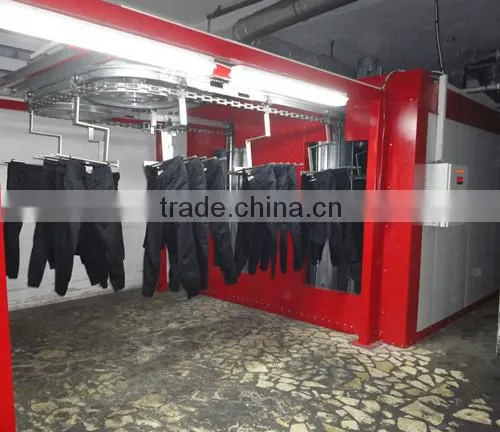

Drying cloth:

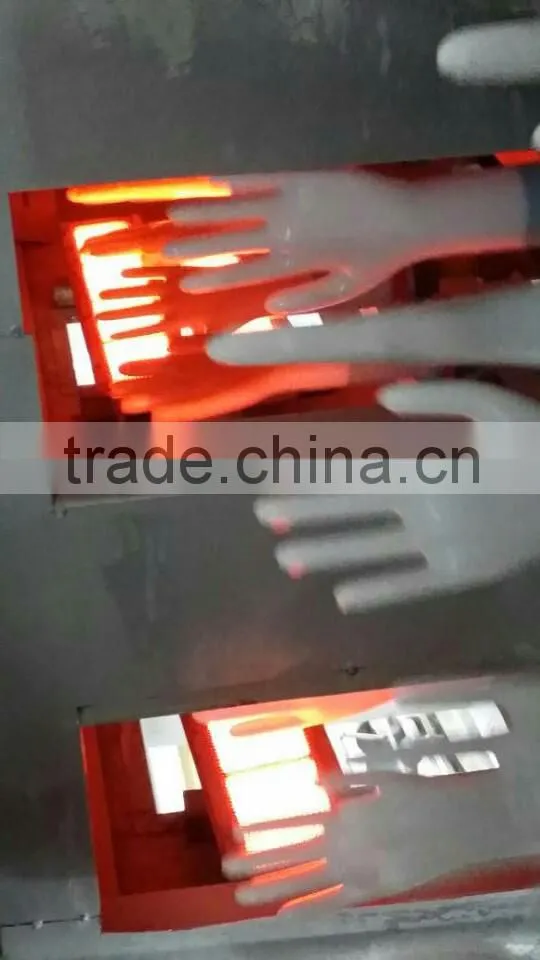

Drying gloves:
And so on...
Work flow:
Package:
Just sending us an inquiry, then we will take care of the rest everything.
