Specifications
Infrared Gas Baking Cake Oven Square Heater1.10~50% energy saved
2.Eco-friendly
3.High efficiency
4.Life above 1year

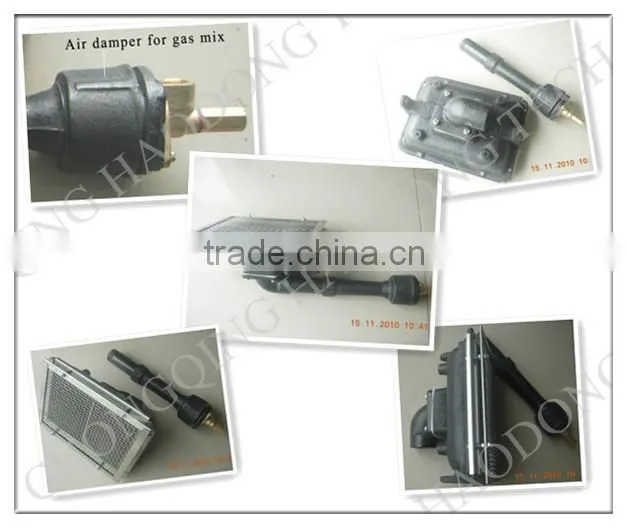

Product name: Infrared Gas Baking Cake Oven Square Heater
About us:
Chongqing Haodong Technology Co,. LTD is the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.
Now we produce gas burner, infrared burner, gas heater, BBQ burner, bakary oven burner, industrial burner etc.
| MODEL | Dimension | N.W. | Gas Type | Heat Output | Gas Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| FY41 | 280*80*70 | 3.1 | NG/LPG | 2.1 | 1800 | 0.165 | 0.156 |
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.17 |

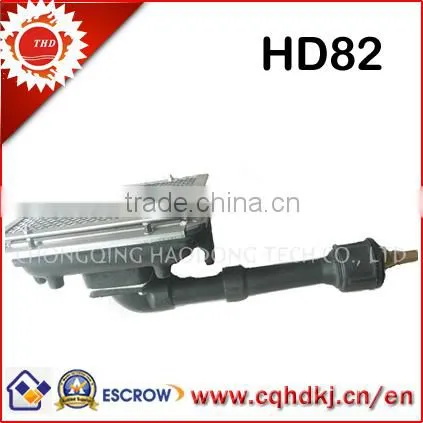

| HD82 | 200*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.22 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.28 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.45 |
| HD410 | 410*175*220 | 8.1 | NG/LPG | 6.3 | 5400 | 0.49 | 0.45 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.68 |
| HD600 | 600*175*220 | 10.5 | NG/LPG | 9.4 | 8120 | 0.75 | 0.68 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.74 |
Material :
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages:
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Application

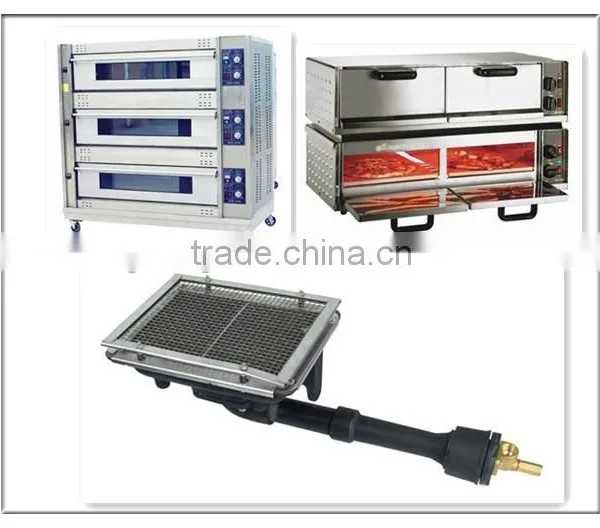

The food industry: bakery oven, pizza oven, biscuit, drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
Factory & Packing Photoes:
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
