Help CenterHigh Energy Electric Pulse Igniter for Gas Stove Industrial Oven(GM103)
Related Products
-
High Energy Electric Pulse Igniter for Industrial Oven(GM103)US$ 16 - 48MOQ: 100 Pieces -
Infrared Honeycomb Ceramic Plate for BurnerUS$ 1.8 - 6MOQ: 300 Pieces
-
Industrial 220vac/110vac Pulse IgniterUS$ 5 - 20MOQ: 100 Pieces
-
Electric Pulse Ignition for Gas Stoves 220vac/110vacUS$ 5 - 20MOQ: 100 Pieces
-
Honeycomb Infrared Catalytic Ceramic Plates for Gas HeaterUS$ 1.7 - 19MOQ: 100 Pieces
Specifications
pulse igniter1.Lightning proof
2.Auto cut on/off gas
3.Factory

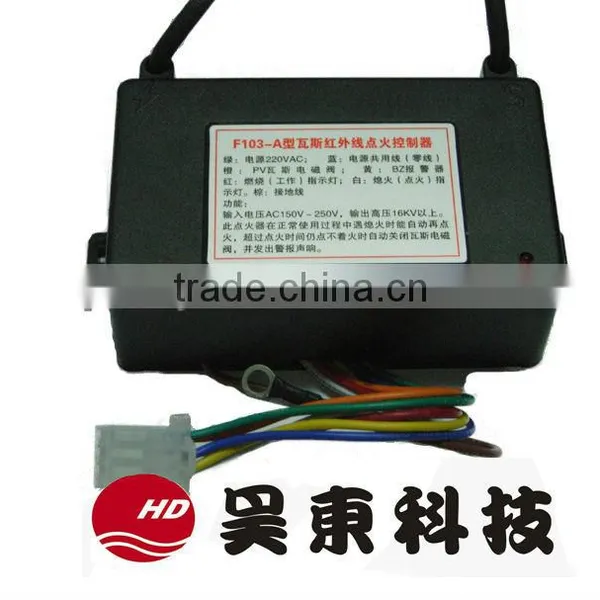

High Energy electric Pulse Igniter for Gas Stove Industrial Oven(GM103)
It's widely used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas. It is widely used in all kinds of gas burner, stove, cooker,oven,furnace.
Features:
1.Safety introspection
2. ignition control
3.Flame-out protection
4.Fault alarm
Electric ignition or switching control ignition
Ignite the gas again automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
Technology of Single-chip and digital microcomputer
lightning proof
Working process
Technical Parameter
No |
Items |
Quotas |
Remarks |
1 |
Rated operational voltage |
VAC |
|
2 |
Discharge frequency |
50HZ |
|
3 |
Arcing distance |
≥6mm |
|
4 |
Duration of ignition |
10s |
It can be adjusted according to your requirements |
5 |
Duration of rekindling |
10s |
|
6 |
Discharge energy |
≥4J |
|
7 |
Discharge cycle |
≤400ms |
|
8 |
Width |
≥12μs |
|
9 |
Deferent high pressure |
≥15KV |
|
Chongqing HaoDong Technology Co., Ltd, is only one in China and one of few companies worldwide who can actually manufacture CATALYTIC emitter. It's called Infrared Catalytic technique, differring from infrared ceramic heater or infrared heater.
The HaoDongTM Infrared catalytic gas emitter& burner & heater was pioneered in the Infra-Red technology product line. It uses a safe, flameless,propriety technology to produce infra-red energy through a catalytic reaction.This means NO FLAME is used to generate heat.Convection ovens,by contrast, use a flame to heat the surrounding air to heat raise the surface temperature of the product. As the flameless construction,the HaoDongTM can be ordered certified to be explosion-proof.
Beyond the safety and energy saving, the HaoDongTMtypically requires 1/3 of the floor space needed to the cure with convection heat.Because infrared heat is directly absorbed by the part and energy is not wasted by heating the surrounding air,parts therefore get to temperature quicker.This means that lines can run faster or cure times shorter.The result is you pay less energy which reduce overall operating costs and repairing costs.
HaoDongTM usage can also result in a higher gloss and brighter finish for finished products.In liquid paint applications,the infrared energy allows solvents and water to be driven out of paint before a skin can form.In powder applications,gelling and corss-linking of the powder accurs at a faster rate and prevents powder blow-off from air movement.
HaoDongTM Infrared catalytic gas emitter& burner & heater can be applied for 1) Curing 2) Drying 3) Shaping 4) Heating. such as paint booth, spray booth, powder coating, various industrial ovens, water evaporation, thermo-forming, preheating, barbecue machine, grill machine, poultry brooder, warming system in building.
Welcome to communicate. Do believe our full experience in Infra-Red and best service for every customer can find right solution for you.
