Help CenterHigh Energy Electric Pulse Igniter for Industrial Oven(GM103)
Related Products
-
Infrared Honeycomb Ceramic Plate for BurnerUS$ 1.8 - 6MOQ: 300 Pieces -
Industrial 220vac/110vac Pulse IgniterUS$ 5 - 20MOQ: 100 Pieces
-
Electric Pulse Ignition for Gas Stoves 220vac/110vacUS$ 5 - 20MOQ: 100 Pieces
-
Honeycomb Infrared Catalytic Ceramic Plates for Gas HeaterUS$ 1.7 - 19MOQ: 100 Pieces
-
Various Types Oil Solenoid Valve With Good QualityUS$ 1 - 10MOQ: 100 Pieces
Specifications
High Energy Electric Pulse Igniter for Industrial Oven1.Lightning proof
2.Auto cut on/off gas
3.Factory
4.industrial ignite

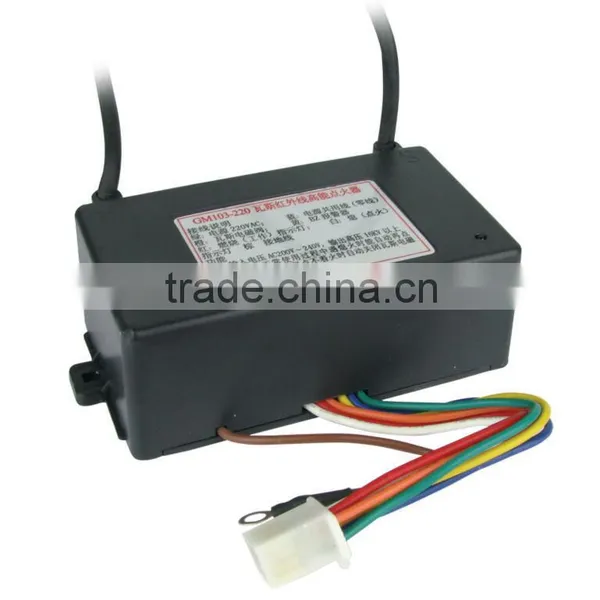

Product Name: High Energy Electric Pulse Igniter for Industrial Oven(GM103)
It's widely used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas. It is widely used in all kinds of gas burner, stove, cooker,oven,furnace.
Features:
1.Safety introspection
2. ignition control
3.Flame-out protection
4.Fault alarm
Electric ignition or switching control ignition
Ignite the gas again automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
Technology of Single-chip and digital microcomputer
lightning proof
Working process
Technical Parameter
No |
Items |
Quotas |
Remarks |
1 |
Rated operational voltage |
VAC |
|
2 |
Discharge frequency |
50HZ |
|
3 |
Arcing distance |
≥6mm |
|
4 |
Duration of ignition |
10s |
It can be adjusted according to your requirements |
5 |
Duration of rekindling |
10s |
|
6 |
Discharge energy |
≥4J |
|
7 |
Discharge cycle |
≤400ms |
|
8 |
Width |
≥12μs |
|
9 |
Deferent high pressure |
≥15KV |
|
