Specifications
1. Computer monitoring;2. Lightning proof;
3. Auto cutting off gas;
4. Warning system
5.Main market: world

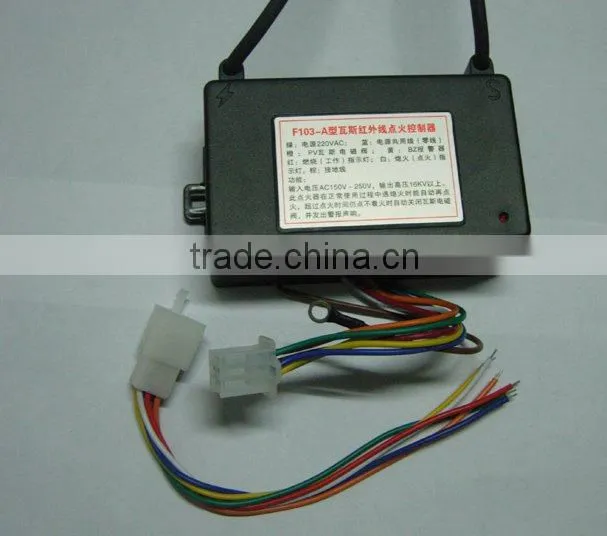

Electric gas igniter for gas stove
Product Purpose
This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas. It is widely used in all kinds of gas burner, stove, cooker,oven,furnace...
Features:
1.Safety introspection
2. ignition control
3.Flame-out protection
4.Fault alarm
Electric ignition or switching control ignition
Ignite the gas again automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
Technology of Single-chip and digital microcomputer
lightning proof
Working process
Technical Parameter
No |
Items |
Quotas |
Remarks |
1 |
Rated operational voltage |
VAC |
|
2 |
Discharge frequency |
50HZ |
|
3 |
Arcing distance |
≥6mm |
|
4 |
Duration of ignition |
10s |
It can be adjusted according to your requirements |
5 |
Duration of rekindling |
10s |
|
6 |
Discharge energy |
≥4J |
|
7 |
Discharge cycle |
≤400ms |
|
8 |
Width |
≥12μs |
|
9 |
Deferent high pressure |
≥15KV |
|
Usually used with ignition pin and soleniod valve to realize completed function:

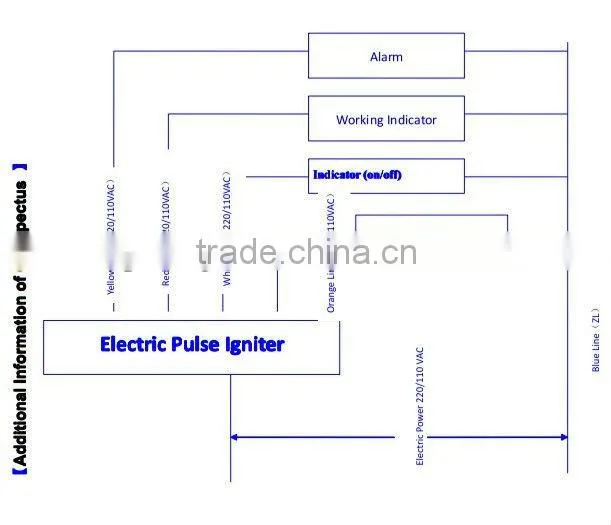

Wire Connection diagram:
