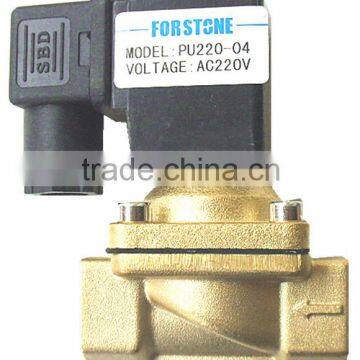

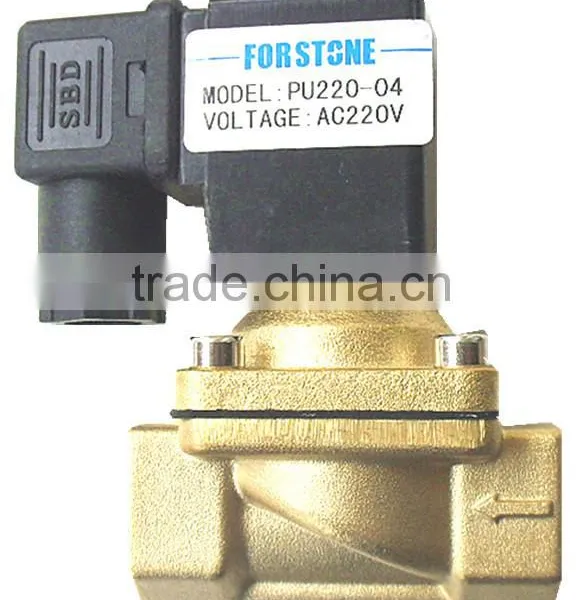

1/4 Inch Water Solenoid Valve PU220-04US$ 50 - 110MOQ: 10 Pieces -
Factory Price DC/AC Brass Direct Drive Water Pass Automatic Solenoid ValveUS$ 5 - 50MOQ: 10 Pieces
-
Brass 220vac Solenoid Valve for Industrial Oven BurnerUS$ 6 - 80MOQ: 50 Pieces
-
Brass Industrial Oven 24 Volt Solenoid ValveUS$ 6 - 80MOQ: 50 Pieces
-
Water Gas Air Oil 110v Solenoid Valve (2W025-08)NegotiableMOQ: 100 Pieces

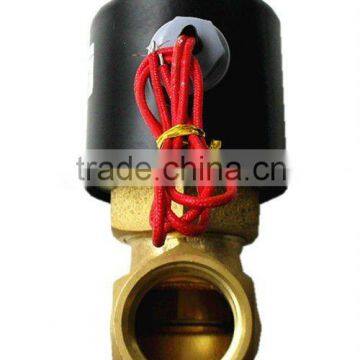

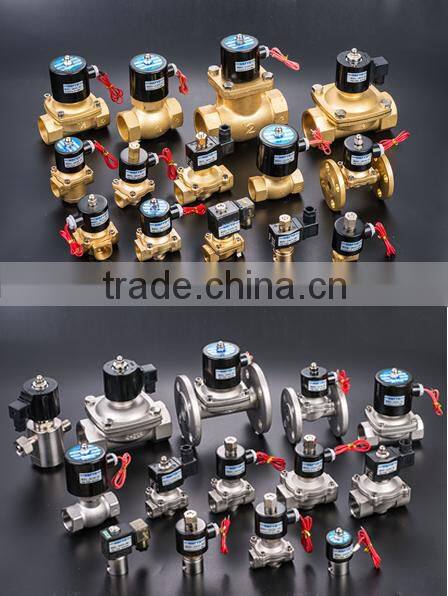

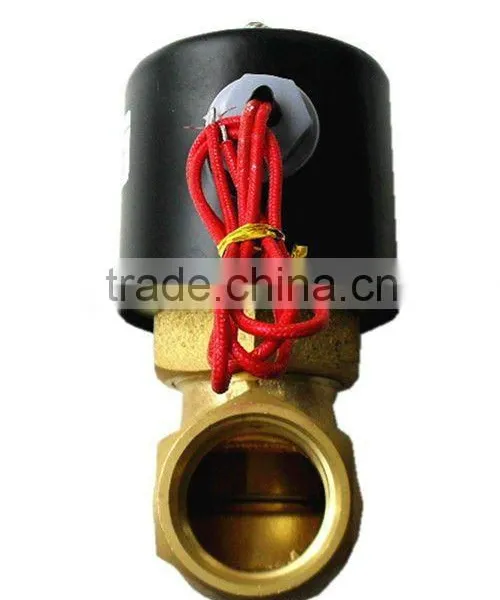

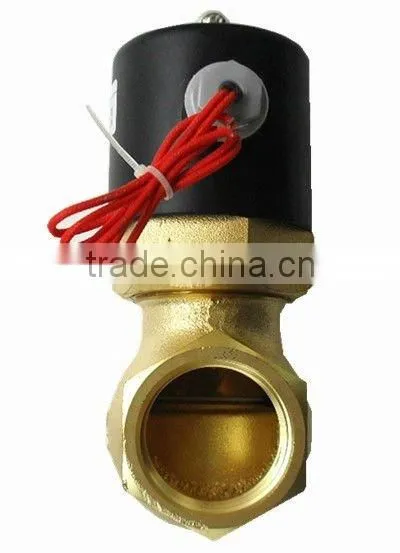

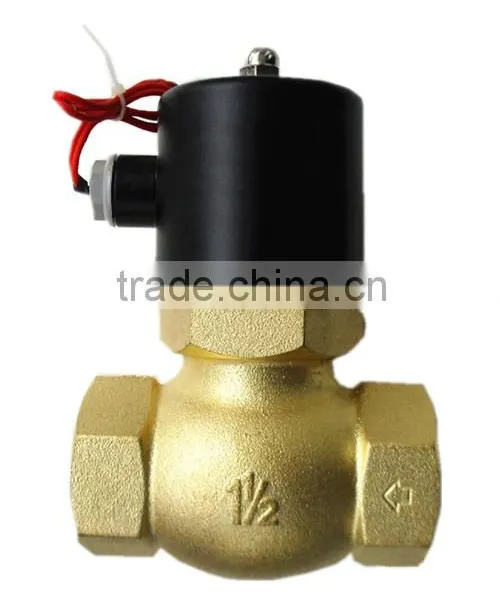

12v/24v DC Gas/ water/air/oil solenoid valve Despcription:
This series solenoid valve are 2/2way, direct action type, are most popular valves for many conditions, especially in the water/gas /oil /air treatment system. It can start working at zero differential pressure. This type of valve can change the coils to be as explosion-proof solenoid valve or water-proof solenoid valve to be used in water.
Specs and Descriptions |
2W040-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
Aperture of flow rate |
4 16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
0.6 4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Port Size |
3/8” |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
Operation Fluid viscosity |
Below 20CST |
||||||
Working Pressure |
Water/Oil:0~0.5Mpa Air/Gas:0~0.7Mpa |
||||||
Media |
Water, Oil, Gas, Air |
||||||
Motion Pattern |
Direct Drive |
||||||
Type |
Normal Closed , Normal Open |
||||||
Max Pressure Resistance |
10.5MPA |
||||||
Working Temperature |
-5~+80 ℃ |
||||||
Voltage Range |
±10% |
||||||
Material of Body |

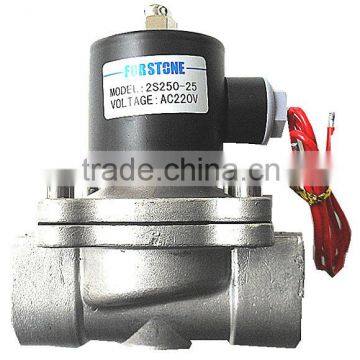

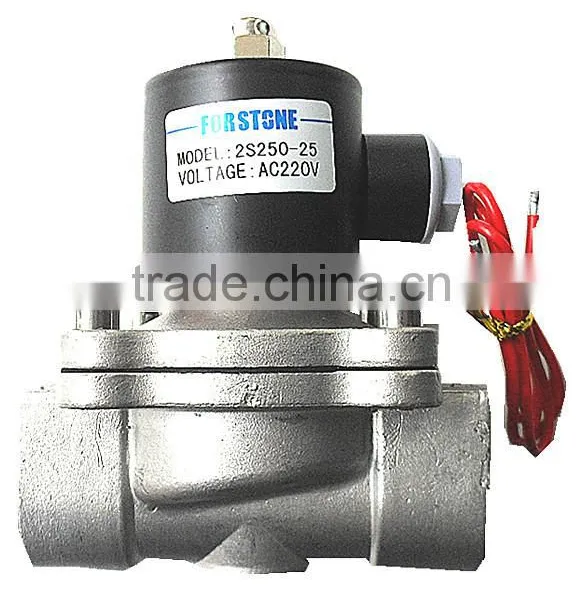

2W:Brass; 2S: Stainless Steel |
||||||
Material of Oil Seal |
NBR/ VITON |
||||||
