Gas Patio Heaters Parts Patio Heater Gas Valve 2W500-50

FOB Price

US$ 10 - 40 / Piece

10 Pieces(Min. Order)

Port chongqing
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	HD
Model Number	2W025-08		Patio Heaters Type	Other, Gas,oil,water,air

Product Description

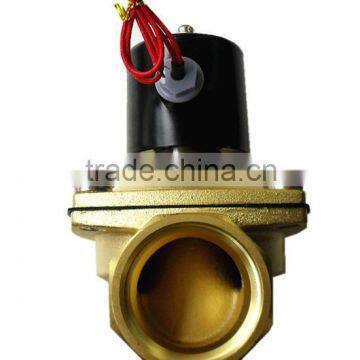

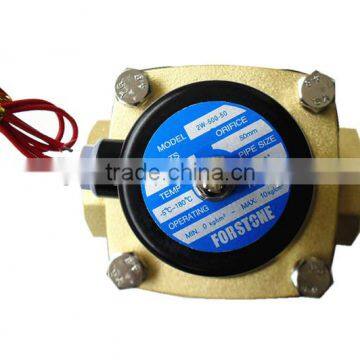

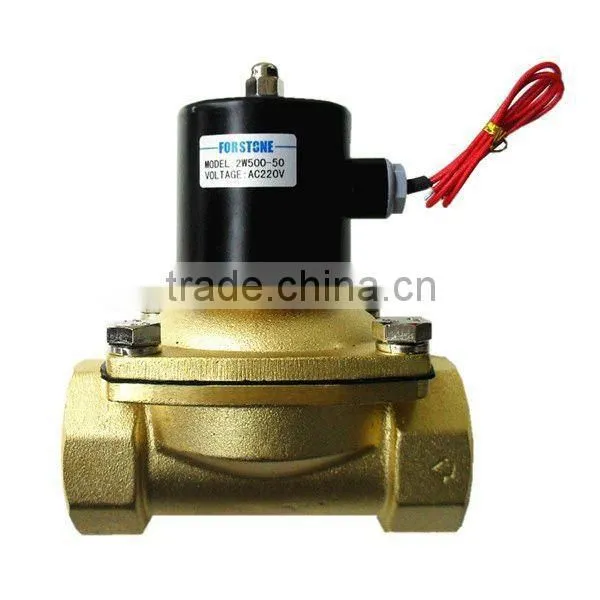

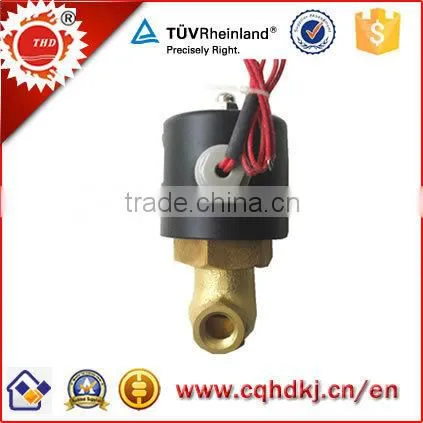

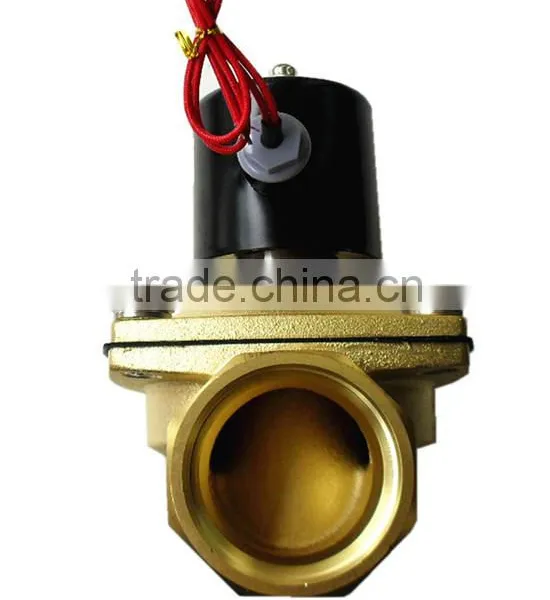

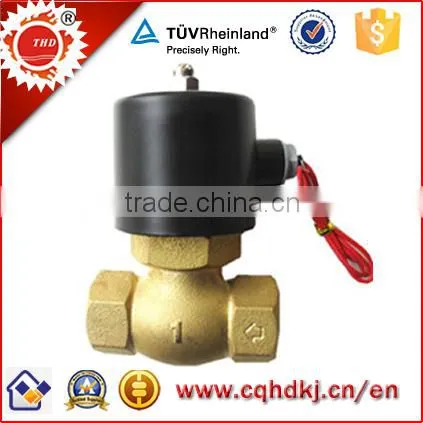

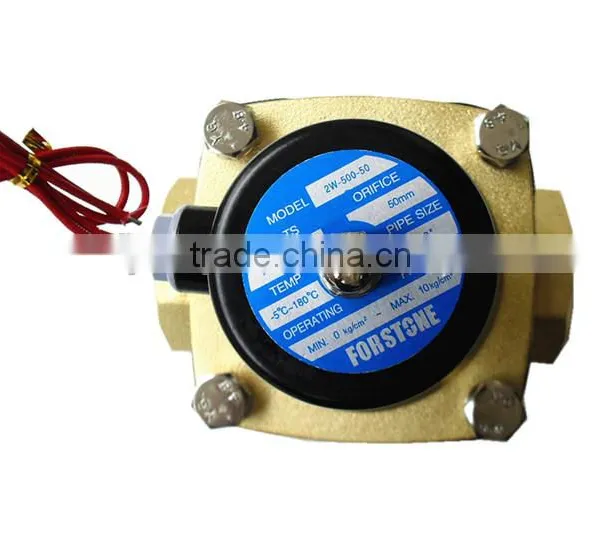

Gas Patio Heaters parts Patio Heater Gas Valve(2W500-50)

Company Information

About us:

Now we have four series,2W,L,S and PU series,they are widely used for water,gas,oil ,air and other mediums.With different sealing material,coill material,boday material,those series can meet most requipments for customers. if you have any other special inquiry,just tell us,we will try to support you!

TUV report download:

http://cqhdkj.en.china.cn/company_profile/capability_assessment.html

Product Description

Description:

1.It can be used in Water,Oil,Gas,Air Medium

2.Voltage: DC12,24,36;AC36,110,220,380V

3.Port Size :2inch

4.Working temperature : NBR:-5~80°C;VITON:-5~180°C

5.Max valve pressure : 10.5KGF/CM

6.Working Pressure : 0~5 KGF/CM for water

Other models for Choice:

Model	Sealing material			Material of Body	Orifice Size(mm)	Port Size	Motion Pattern	Working Pressure KGF/CM	Max valve pressure	Oil Seal Material
	NBR	VITON	PTFE	Material of Body	Orifice Size(mm)	Port Size	Motion Pattern	Working Pressure KGF/CM	Max valve pressure	Oil Seal Material
2W025-06	√			Brass	2.5	1/8	Direct Drive	0~7	10	NBR. EPDM or VITON
2W025-08	√				2.5	1/4
2W040-10	√				4	3/8
2W160-15	√	√			16	1/2		Water:0~5 Oil:0~5 Gas:0~7 Air:0~7	10.5
2W200-20	√	√			20	3/4
2W250-25	√	√			25	1
2W350-35	√	√			35	1 1/4
2W400-40	√	√			40	1 1/2
2W500-50	√	√			50	2

2S160-15	√	√		Stainless steel #304&316	16	1/2	Direct Drive	Water:0~5 Oil:0~5 Gas:0~7 Air:0~7	10.5	NBR. EPDM or VITON
2S200-20	√	√			20	3/4
2S250-25	√	√			25	1
2S350-35	√	√			35	1 1/4
2S400-40	√	√			40	1 1/2
2S500-50	√	√			50	2

PU220-01	√			Brass	1.5	1/8	Direct Drive	0~7	10.5	NBR.EPDM or VITON
PU220-02	√				2.3	1/4
PU220-03	√				8	3/8
PU220-04	√				13	1/2
PU220-06	√				20	3/4
PU220-08	√				25	1

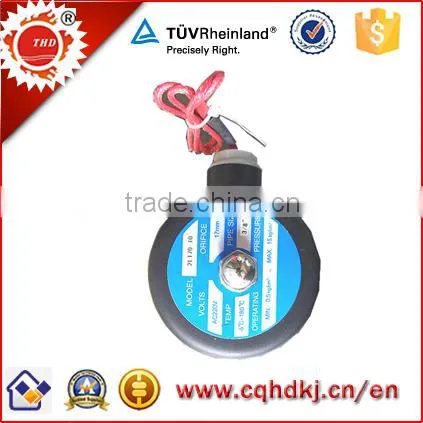

2L170-10			√	Brass	17	3/8	Pilot-operated	1~15	22.5	PTFE
2L170-15			√		17	1/2
2L170-20			√		17	3/4
2L200-25			√		22	1
2L300-35			√		30	1 1/4
2L300-40			√		30	1 1/2
2L500-50			√		50	2

Our Services

If need Patio Heater Gas Valve, welcome to contact us!
