8x4 Baotou Beiben Refueling Diesel Tanker Truck 25cbm to 30cube meter Fuel Tank Trucks For Sales Call Ms.Pinky 0086 15897603919
Bei Ben stainless steel tanker for water/oil/petrol,alcohol/ethanol /methanol/asphalt/ chemical
Most popular model:
tanker trucks 290HP,300HP , 320HP, 340HP for 6x4 ,6x6,8x4 all wheel or off road Truck
drive type: left hand or right hand drive
Diving : 4*2,6*4,8*4,off road all wheel 4*2,6*4,8*4 at avaible
| water tank, Fuel Tanker, Diesel Tanker | Carbon steel/stainless steel tank /water pump/ High pressure squirt gun |
| steel option | Carbon steel Q235/Q345/ 16 manganese steel/ |
| stainless SS201/SS304 /SS316 tanker | |
| acids tanker | steel lined plastic for water/alcohol/ethanol /acid, alkaline and salt liquid lubricating oil /Methanol |
| oil/petrol,Fuel diesel/Methanol/Tank truck | steel tank with oil pump/ gun fuel truck nozzle |
| asphalt/bitumen/crude oil tanker | burner/steam heating and insulation system ,pump option |
the Specification of 8x4 Baotou Beiben Refueling Diesel Tanker Truck :
| Place of Origin | China | |
| Brand Name | North Benz Baotao Beiben | |
| Model Number | 2532 /2527/2530 | |
| Drive Wheel | 6x4 | |
| Volume | 10/14/15 /20CBM/30CBM | |
| Wheel base (mm) | 5050+1450 | |
| Curb weight kg | 12000 | |
| Engine | Model | WD615.44(Based on Styre technology, made in China ) |
| Power, max kw/rpm | 206/2200 | |
| Max torque(Nm/rpm) | 1160/1100-1600 | |
| Emission standard | EUROII | |
| Fuel tanker capacity L | 300 | |
| Clutch | Model | GFX420, Single dry frictional disc,Hydraulic boosting |
| Gearbox | Model | ZF 5S-111GP(ZF technical, mechanism, 9 forward gears, 1 reverse gear, manual, made in China, produed by Bei Ben Transmission) |
| Transfer-case | VG1400(Benz technical,made by BEIBEN AXLE) | |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | Engine exhaust brake | |
| Park brake | Potential springs pressing on middle and rear wheels | |
| Steering system | Model | ZF8098 |
| Frame of vehicle | Fish belly shape, variable width, variable section side beam structure | |
| Front axle | Double-shoe pneumatic brake, non-driving steering axle | |
| Middle and Rear axle | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |
| Tyre | 12.00R20 | |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V -35A | |
| Starter | 5.4Kw/24V | |
| Cab | Short cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C | |
Detail Photos of 8x4 Baotou Beiben Refueling Diesel Tanker Truck
-Transportation: fuel/water chemical acids /oil/petrol , gasoline, diesel/asphalt/ bitume/ crude oil lubricating oil/alcohol/ethanol acid, alkaline and salt liquid
1. Function: separate compartments to load different fuel and chemical liquid. Can install reading meter.
2. Material tank body: carbon steel, stainless steel plate, plastic or Fiber Reinforced Plastics cover inside the tank body.
3. shape of tank body: square, ellipse.
4.pump: gear pump or self-suction pump.
5. Welding: tank welded by welding machines and automatic welding of Carbon dioxide.
6. Paint: painted by overall spraying machines.
7. Baffle plate are installed inside of the tank body to protect the tank body.
Optional For Oil Transport Truck :
puter fueling machine
2.15m 15m hose reel auto-rewind with dispenser 3. Reading meter.
our factoy is top brand in China, high quality and lowest price, our truck is you best choice. 24Hours Phone:0086 158 9760 3919
More specs , photos, price, delivery time and other need,
please contact with Ms Pinky.
Hotline: 0086 15897603919

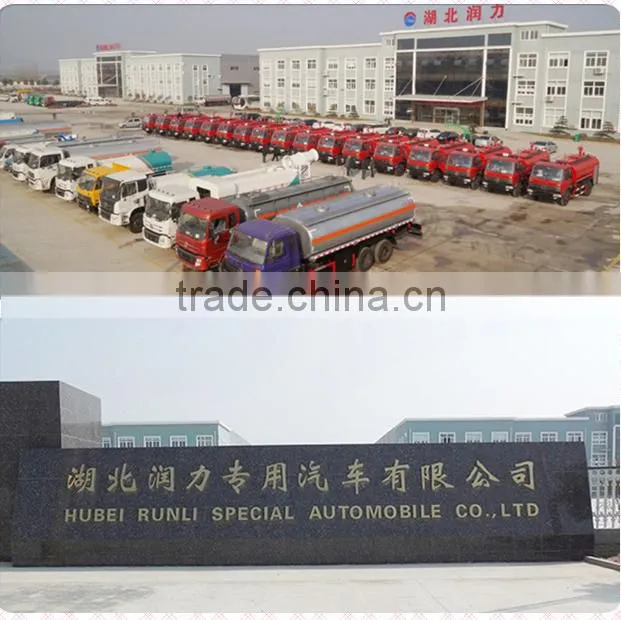

Welcome to visit our company! suizhou city, Hubei Province.
our Offical website:
our company license:

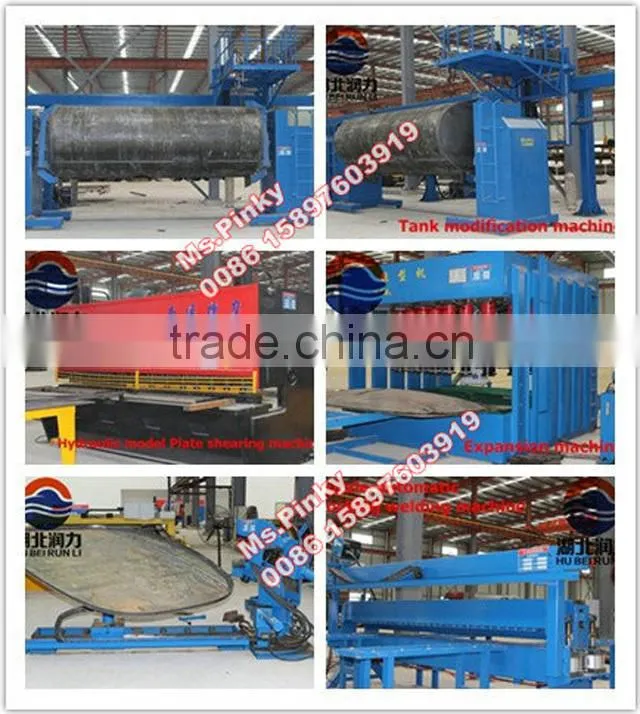

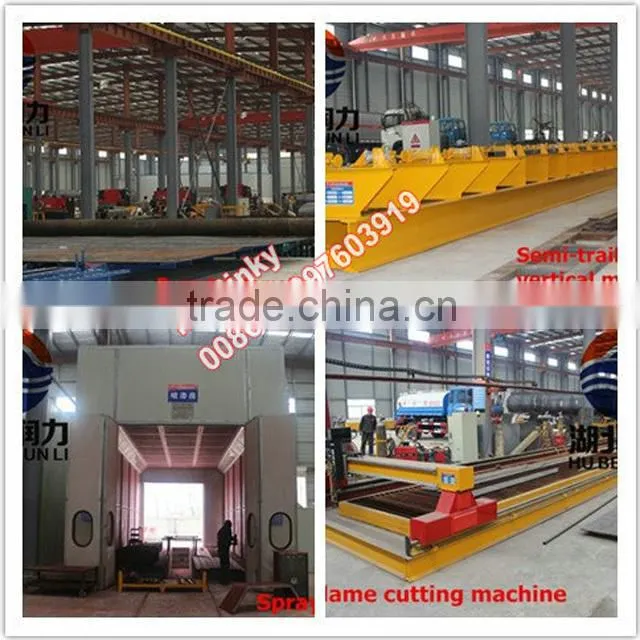

our factory equipment:
More specs , photos, price, delivery time and other need,
please contact with Ms Pinky.
Hotline: 0086 15897603919
Welcome to visit our company! suizhou city, Hubei Province.
