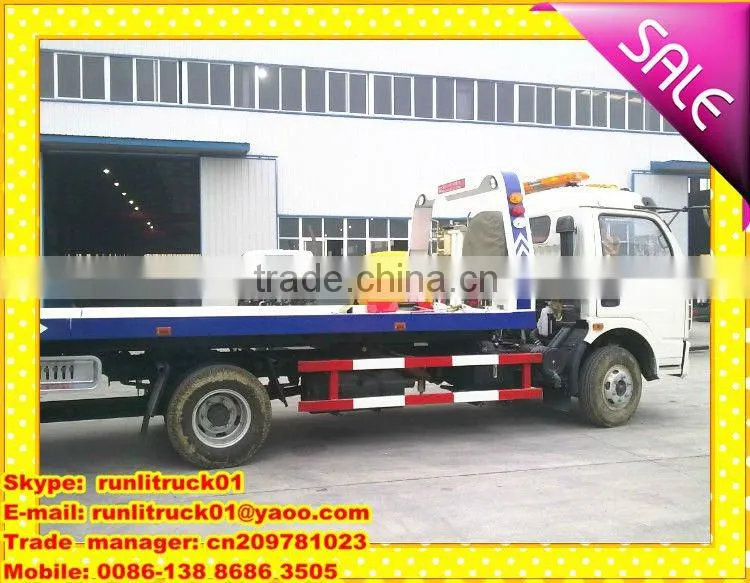

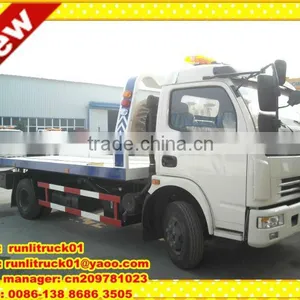

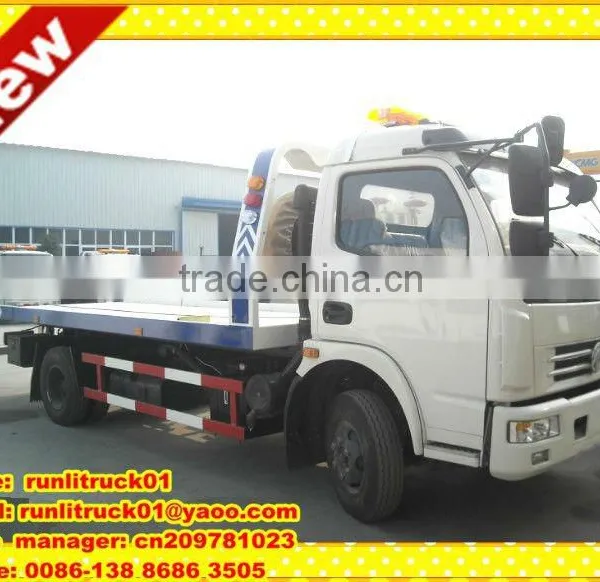

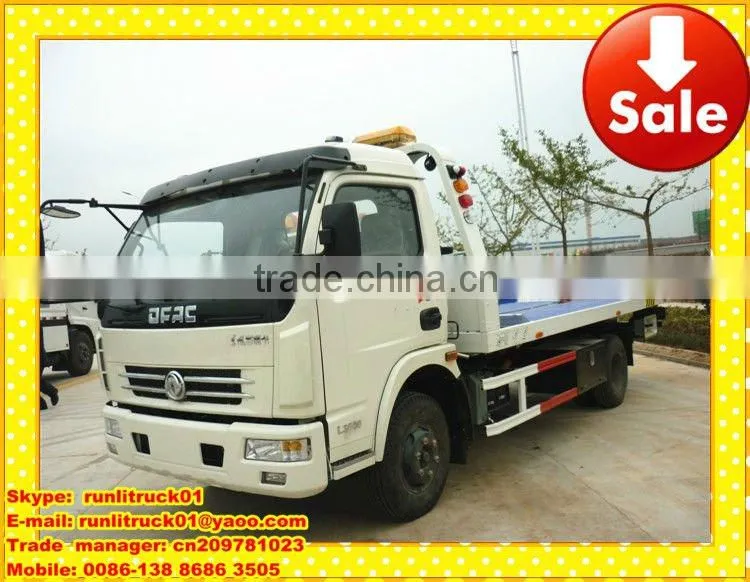

EQ1070TJ9AD3 5 tons road wrecker truck

Specifications

EQ1070TJ9AD3 5 tons road wrecker truck
1. Good quality
2. Wonderful appeaence
3. warm service

5 EQ1070TJ9AD3 5 tons road wrecker truck

According to structural specralgy of the device, it can be divided into four types, they are the separating type, the unit size, back loading type and go up and down type. The separating type is hang arm and triailing arm can work without each other. The unit hangs the arm and trailing arm to bind for an organic whole to hold and hang the size of uniting.The back loading type is through towed to hang. The going up and down type moves transmitting and overhead manipulation throught hoisting and lower the platform.



Chassis Model /Brand					EQ1070TJ9AD3 EQ1070/Dongfeng
Overall Dimension		Length×Width×Height	mm		7240×2300×2360
Total Mass			Kg		7000
Kerb Weight					4600
Engine		Model/ Rated Power Delivery volume Emission standard			CY4102 96KW/130hp 2999ml Euro3
driving type					4*2
Type & Size of Tyre					7.50-16
Wheel Base				mm	3815
Approach/departure angle				°	23/11
Front/Rear suspension				mm	1015/2410
Number of leaf spring of suspension				piece	8/6+5
Front/Rear track				mm	1504/1425
Max Speed				Km/h	95
Material	Carbon steel
special system	Max lifting capacity: 2.25ton
	Max lifting pull capacity: 3-4tons
