Help CenterHousehold Appliance Infrared Gas Heaters for BBQ Machine Parts HD162
Related Products
-
Industrial Infrared Gas Stove Burner( HD162)US$ 40 - 100MOQ: 100 Pieces -
Infrared Gas Box Oven Heaters for Sale(HD262)US$ 40 - 120MOQ: 50 Pieces
-
Factory Price Bbq Machine Cheap Infrared Grill Burnel HD220US$ 10 - 45MOQ: 100 Pieces
-
Infrared Burner for Industrial Stove/Gas Stove Heating Parts (HD242)US$ 40 - 120MOQ: 100 Pieces
-
Industrial Infrared Heating System Ceramic Infrared Heater(HD242)US$ 40 - 120MOQ: 100 Pieces
company profiles :
Established in 2005 ,Chongqing Haodong Technology co.,Ltd is a mannufacturer specialiaed in the research, development and production of infrared catalytic burner.
The inrared burner is based on catalytic combustion patent technique which is advanced in the field and which is developed by Sichuan Chemical Works Ltd. Now they have been successfully applied in coating,foods drying and baking ,drying process, heating at low and middle temperatures, warming , heat preservaton,Now we mainly sell infrared gas burner,room heater ,chain,and other products
Supplier assessment certificate
Applied Range of infrared gas heaters
1.Food Industry: Rice Biscuit( rice cookies covered with snow-like sugar )assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, griddle, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.
2.Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
3.Fiber Industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
4.Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching
5.Paper Industry: All kinds of paper dry lines and auxiliary drying heat wall
6.Farming and animal husbandry: Heating of barton, heating of crops, grain dryer.

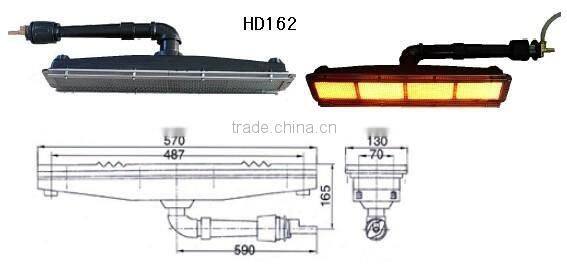

Household appliance infrared gas heaters for BBQ machine parts HD162
odel |
Length (mm) |
Width (mm) |
Hight(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
||
NG |
LPG |
||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
3/8 |
|||||
HD162 |
570 |
130 |
175 |
8.0 |
0.49 |
0.45 |
6.3 |
5400 |
|
Other models infrared gas heaters for choosing :
MODEL |
Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 |
0.82
|
The Technical datas
Table 1:The use of technical parameters
Items |
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9µm--15µm |
|
Furnance pressure
|
2000pa(NG)/2800pa(LPG) |
Table 2:
Comparison table for different kinds of fuels and heater's energy consumption
|
Furnace type Parameters |
Electronic cooker |
Oil furnace | Coal-fired furnace | Infrared heater | Infrared catalytic heater |
|
Energy requirement |
10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal |
|
Temperature |
180 |
180 |
180 |
180 |
180 |
| Energy consumption |
Electricity(15 kW/h) |
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg) |
LPG(1.0Kg) | LPG(0.9Kg) |
|
Marketing price |
RMB12 |
RMB7 |
RMB2.3 |
RMB3 |
RMB2.7 |
|
Heating time |
20 minutes | 40 minutes | 90 minutes | 6-10 minutes |
5-8 minutes |
Factory & packing photos:
Contact information:
Whatsapp:+8613883514635
Trade manager:cn1500440252
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
