About us:
Chongqing Haodong Technology Co,. LTD is the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.
Now we produce gas burner, infrared burner, gas heater, BBQ burner, bakary oven burner, industrial burner etc.

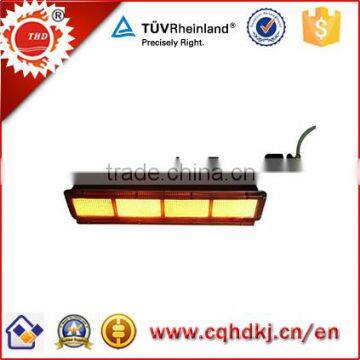

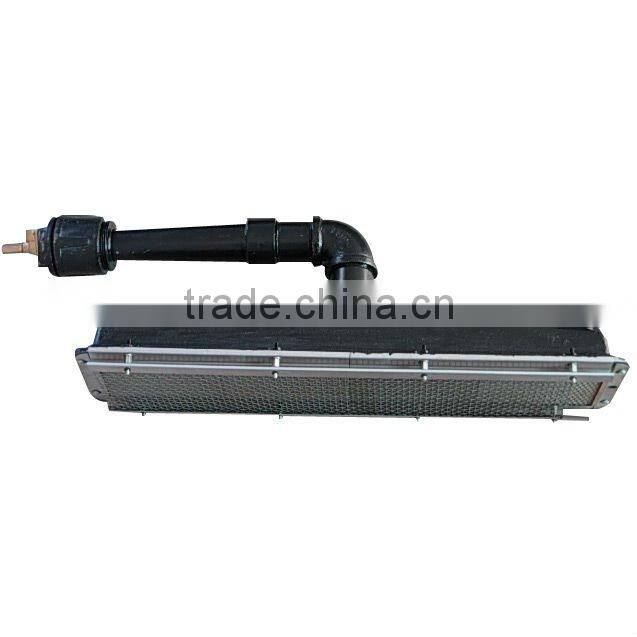

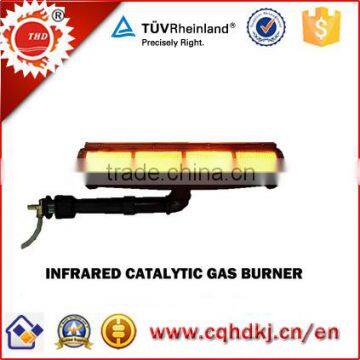

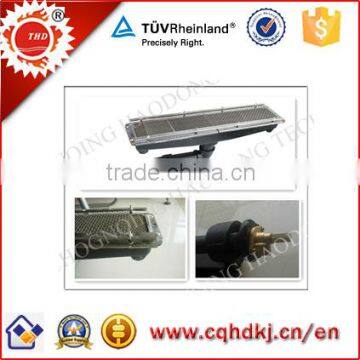

Industrial Infrared gas stove burner( HD162)
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
The largest advantage of our products compared to others:
Material :
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Usage of technical parameters
Table 1:The use of technical parameters
Items |
Technical parameters |
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
Heat source temperature |
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9μm--15μm |
|
Furnance pressure natural |
2000pa(NG)/2800pa(LPG) |
Table 2:Comparison table for all kinds of energy consumption
|
Furnace type Parameters |
Electronic |
Oil furnace |
Coal-fired furnace |
Infrared catalytic heaters |
|
Energy requirement
|
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
Temperature |
180 |
180 |
180 |
180 |
Energy consumption |
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
Heating time |
20 minutes |
40 minutes |
90 minutes |
5-8 minutes |
Advantages:
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Application
Food Industry: Rice Biscuit assembly line, grilled chicken, egg roll, roasting shredded squid oven etc.
Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line.
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, latex gloves drying line.
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting.
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer.
Factory & Packing Photoes:
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
