Home > Transportation > Truck > General Cargo Truck > Dongfeng Flat Bed Truck for Transporting Machines

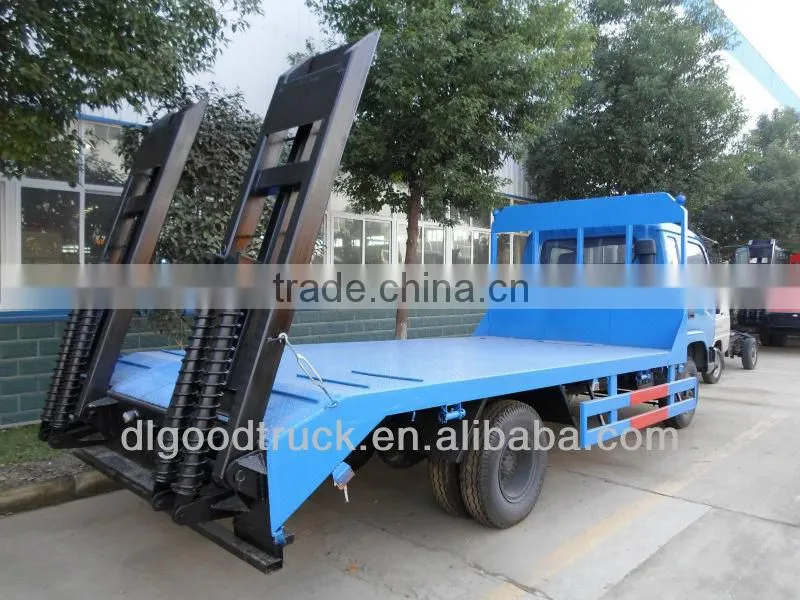

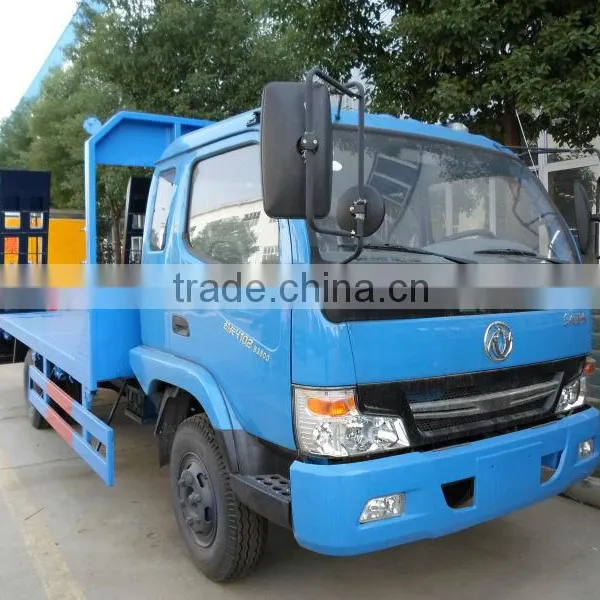

Dongfeng Flat Bed Truck for Transporting Machines

Name: Dongfeng Flat Bed Truck for Transporting Machines
Brand: DONGFENG
SKU: 101080405
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Capacity (Load):

1 - 10t

Drive Wheel:

4x2

Hubei Runli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 1 - 10t

Drive Wheel 4x2

Horsepower Other, < 150hp

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Size 7440x2450x2650

Gross Vehicle Weight 11495

Place of Origin Hubei, China

Brand Name DONGFENG

Model Number EQ1110G9ADJ3A

Specifications

1.Dongfeng 4x2 chassis
2.Engine CY4102-E3C, 120PS
3.Flat bed length 5000mm
4.For transporting machines
5.Good price

1.Dongfeng 4x2 chassis
2.Engine CY4102-E3C, 120PS
3.Flat bed length 5000mm
4.For transporting machines
5.Good price

Product name	DongFeng flat bed truck for transporting machines
Chassis model	EQ1110G9ADJ3A
Loading capacity	6-8Ton
Vehicle	Overall Dimension (mm)	7440×2450×2650
	Length of flat bed(mm)	5000
	Total Mass(kg)	11495
	Payload(kg)	6700
	Kerb mass(kg)	4600
	Approach/Departure Angle(°)	22/8
	Front/Rear Suspension(mm)	1270/2430
	Fuel Type	Diesel
	Fuel Consumption(L/100km)	10
	Top speed(km/h)	90
Engine	Model	CY4102-E3C
	Max.power(kw/PS)	91/120
	Displacement(ml)	3856
	Emission level	Euro 3
	Manufacturer	Dongfeng ChaoYang Engine Co., Ltd
	Type	4-in-line,turbo charged,water cooled,intercooled
Chassis	Drive type	4×2
	Wheelbase (mm)	3800
	Tread (front/rear)mm	1835/1640
	Steering gear	Recalculating ball steering,power assisted
	Transmission	5 forward gear,1 reverse gear,manual mechanical type
	Clutch	Uniwafer, dry clutch, hydraulic remote control
	Braking system	Air braking cam drum braking
	Cab	Non-long headed cabin,with bunk
	Number of spring axle(front/rear)	8/10+7
	Tire Type	8.25-16
