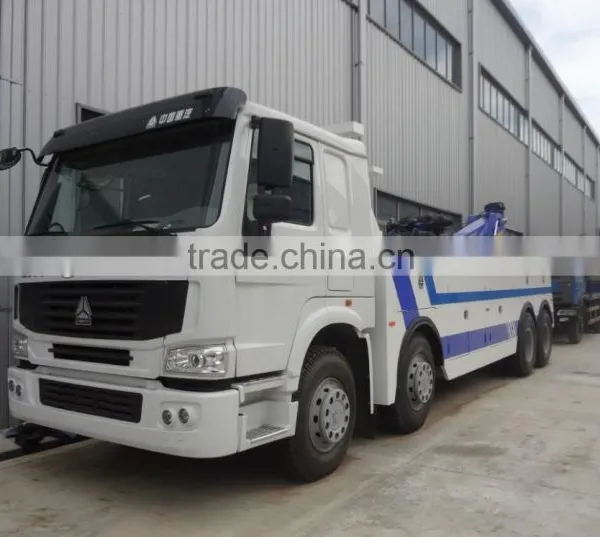

HOWO 8x4 Road Wrecker Truck
Specifications
1.Multi-function wrecker truck2.Strong lifting crane
3.360 degree boom
4.Long lifting boom
5.HOWO 8x4 chassis
1.Multi-function wrecker truck
2.Strong lifting crane
3.360 degree boom
4.Long lifting boom
5.HOWO 8x4 chassis
Parameters of this wrecker truck | ||
Chassis model |
ZZ1317N4667C(with air condition) |
|
Crane type |
360-degree rotating crane, hydraulic supporting arm, manual clamp, and four support ground jacks. |
|
Curb mass (kg) |
Curb weight |
24500 |
1,2 axles |
6990/7000 |
|
3,4 axles |
10510 |
|
Total mass (kg) |
Total weight |
31000 |
1,2 axles |
5810/5820 |
|
3,4 axles |
24000 |
|
Vehicle size(mm) |
Length |
11420 |
Width |
2496 |
|
Height |
3456 |
|
Truck’s Wheelbase (mm) |
1800+4600+1350 |
|
Track (1-4 axle) (mm) |
2022/2022/1830/1830 |
|
Front hang (mm) |
1500 |
|
Rear hang (mm) |
1620 |
|
Approach angle (°) |
13.7 |
|
Departure angle (°) |
14.1 |
|
Drive type |
8×4 |
|
Tyre size |
12.00-20 |
|
Mas speed (km/h) |
90 |
|
Minimum turning diameter (m) |
24 |
|
Minimum ground clearance (mm) |
298 |
|
Engine |
Model |
WD615.95E |
Power (kW/r/min) |
247KW/2200 |
|
Fuel consumption per hundred kilometers(L/100km) |
34 |
|
Lifting boom |
Basic boom length(mm) |
6030 |
Boom total length (mm) |
9530 |
|
Working stroke cylinder (mm) |
3500 |
|
Pitch to the maximum lifting height (mm) |
9850 |
|
Max lifting mass of the crane (kg) |
22000 |
|

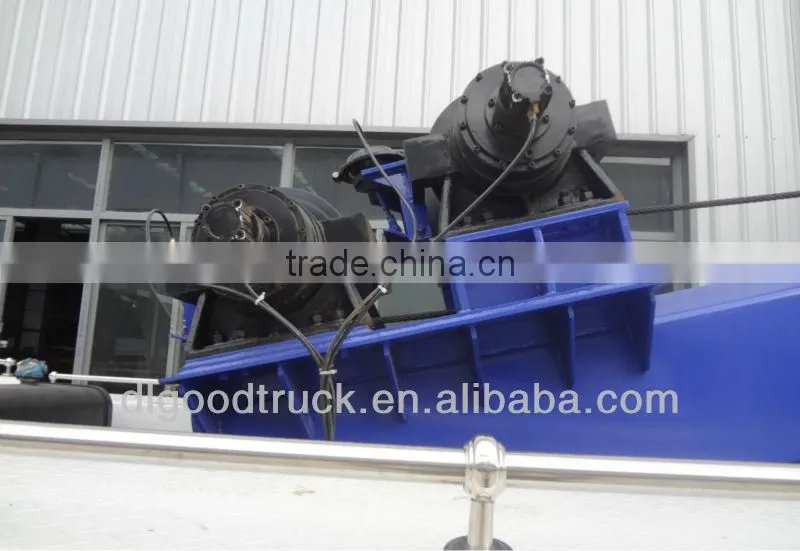

Winch |
Double 10 T winch |
Line length 40 meters |
|
Corbel |
Max effective length (mm) |
2950 |
Stretch travel (mm) |
750+750 |
|
Lifting travel (mm) |
650 |
|
Rated lifting mass (kg) |
20000 |
|
Rated draggling mass (kg) |
60000 |
|
If need more information,please feel free to contact me.
Welcome to visit our company in China!
