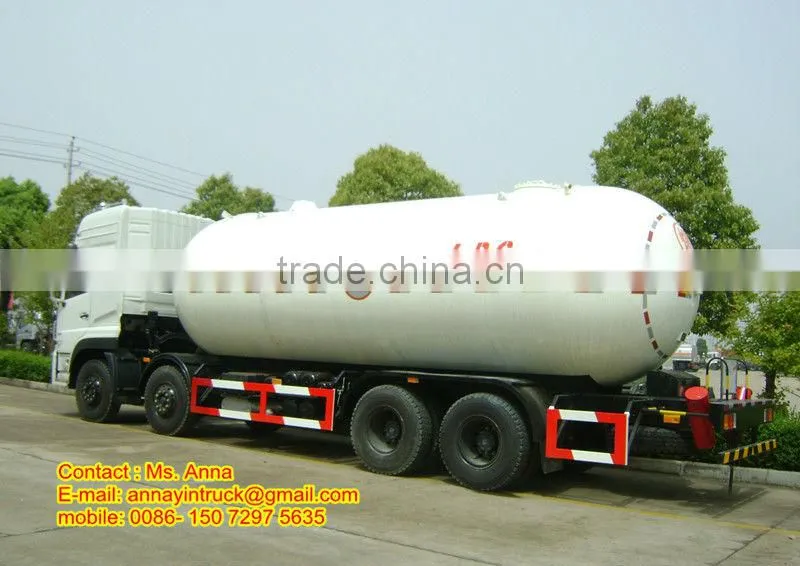

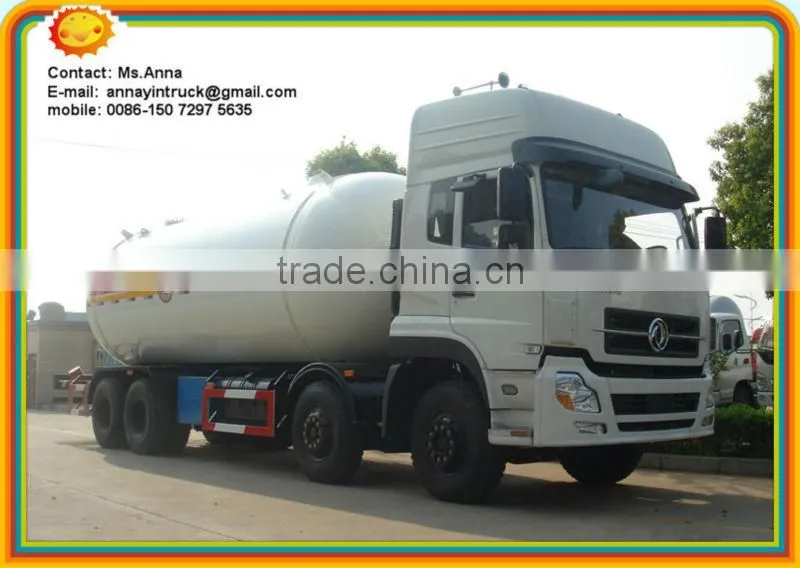

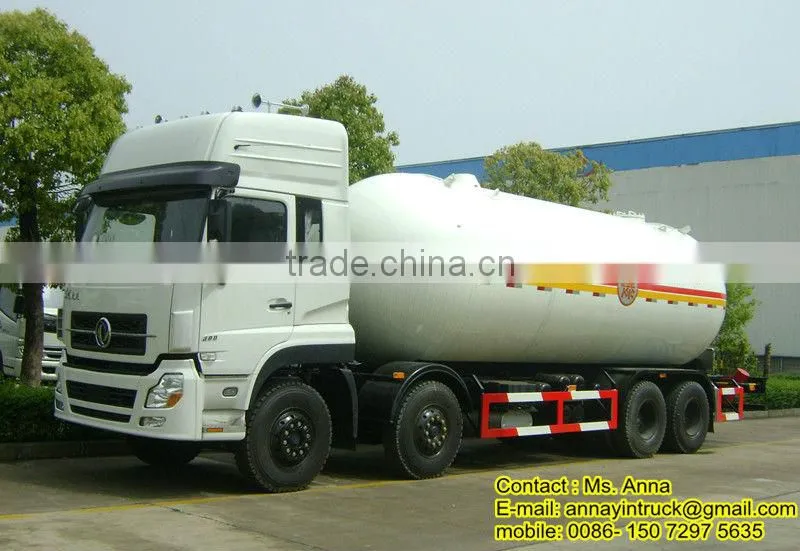

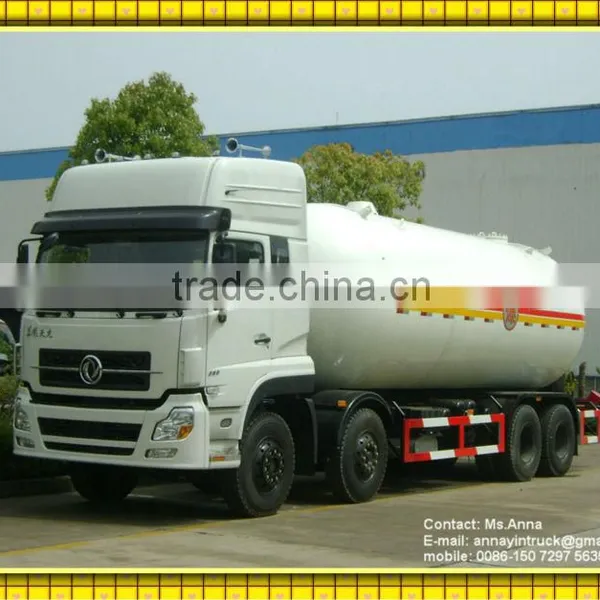

Dongfeng LPG tank truck LPG tanker lpg tanker transportation truck for sale
technical parameter of chassis DFL1311A1 | ||
outside dimension (L×W×H)mm |
11995×2480×3500 |
|
Chassis Model /Manufacturer |
DFL1311A1 |
|
driving type |
8×4 |
|
Cabin |
Flat head, tippable, double doors, D310 |
|
Engine |
Model/Rated Power |
C280 20 |
Emission Standard |
Euro 2 |
|
Displacement |
8300 |
|
Engine type |
Diesel 6-Cylinder in line with water cooling, turbo-charging & intercooling |
|
gear box |
9 forward and 1 reverse speed, mechanical transmission (DF9S1600) |
|
clutch |
Φ430mm, diaphragm spring clutch |
|
Front axle |
I-beam type 5T front axle |
|
Rear axle |
10T×2 |
|
Tyre |
11.00R20 |
|
Wheelbase |
mm |
1950+4250+1300 |
Number of leaf spring of suspension |
mm |
8/8/10 |
Front overhang / rear overhang |
mm |
1460/3035 |
Front tread / rear tread |
mm |
1940/1860 |
Approach angle /Departure angle |
25/9 |
|
Total mass |
Kg |
31000 |
Loading mass |
Kg |
13000 |
Kerb mass |
Kg |
17805 |
Max Speed |
Km/h |
90 |
air condition |
With |
|
Main technical parameter of LPG tanker | ||
Volume of tanker |
30.95m3 |
|
Outside dimension of tanker body(length × diameter) |
9334×2124 |
|
Design pressure |
1.77Mpa |
|
Designed thickness |
11.5mm |
|
Material |
16MnR |
|
Heat treatment type |
Wholly get rid of stress |
|
Testing water pressure |
2.65Mpa |
|
Tyre |
12.00-20 |
|
BPW(12T) axle, including safe valve, level meter, spare tyre. |
|
|
Hubei Runli Special Automobile Co., Ltd is the big domestic enterprise of China, having both the R&D capabilities for special vehicle manufacture and the permission with notice of State Development and Reform Commission.
The main products are
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck,garbage compactor truck,sealed garbage truck
9.Fecal suction truck,sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck,insulated truck,refrigeration truck
13. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc more than 300 types in total.
Welcome to visit our company in China !
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
Contact name: Ms. Anna Yin
Mobile phone:0086-15072975635
