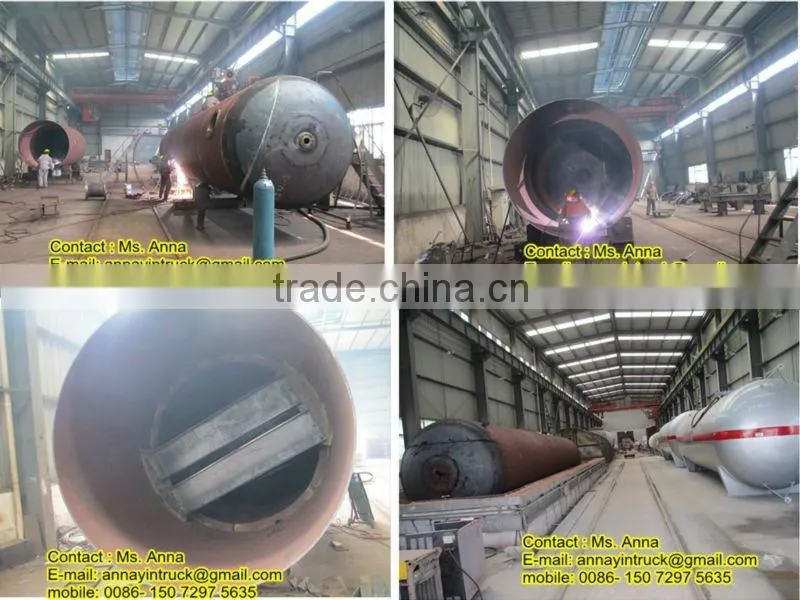

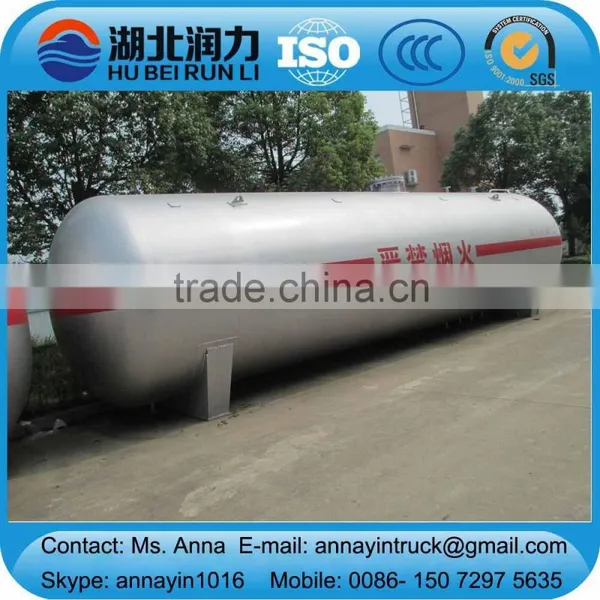

80m3 LPG storage tank LPG storage tanker liquid gas tanker
Liquefied gas storage tank series produced by Runli company can be used for storage of liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, iso-butane, ethylene oxide, methylamine etc natural gas in normal temperature with low or medium pressure .Tank volume various from 12 cubic --- 100 cubic meters.
| item | unit | parameters |
| Products name | LPG storage tank | |
| Filling medium | LPG(propane) | |
| Tank size(inner diameter*thickness*length) | mm | DN3100*16*11162 |
| volume | m3 | 100 |
| Net weight | kg | 21315 |
| Max Filling weight | kg | 42000 |
| Designing pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | °C | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air test pressure | Mpa | 1.77 |
| Material of tank and accessory | Q345R | |
| standard | GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures | |
| Optional accessories | Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | |
chassis brand:
Hubei Runli Special Automobile Co., Ltd is the big domestic enterprise of China, having both the R&D capabilities for special vehicle manufacture and the permission with notice of State Development and Reform Commission.
The main products are
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck,garbage compactor truck,sealed garbage truck
9.Fecal suction truck,sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck,insulated truck,refrigeration truck
13. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc more than 300 types in total.
Welcome to visit our company in China !
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
Contact name: Ms. Anna Yin
Mobile phone:0086-15072975635
