Home > Transportation > Trailer > Other Trailers > 50T Low Bed Semi Trailer Hydraulic Low Bed Trailer 0086-13635733504

50T Low Bed Semi Trailer Hydraulic Low Bed Trailer 0086-13635733504

Name: 50T Low Bed Semi Trailer Hydraulic Low Bed Trailer 0086-13635733504
Brand: RUNLI
SKU: 101059175
Availability: InStock

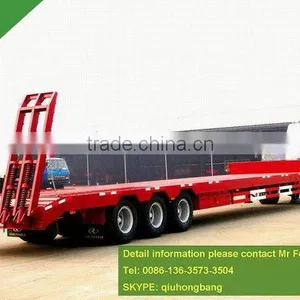

50T Low Bed Semi Trailer Hydraulic Low Bed Trailer 0086-13635733504 thumbnail-1

50T Low Bed Semi Trailer Hydraulic Low Bed Trailer 0086-13635733504 photo-1

US$ 18,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

OEM No.:

9400

Max Payload:

40000kg

Size:

12500x3000x3100mm

Contact Supplier Request Quote Chat Now

Hubei Runli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

OEM No. 9400

Max Payload 40000kg

Size 12500x3000x3100mm

Place of Origin Hubei, China

Brand Name RUNLI

Model Number 9400

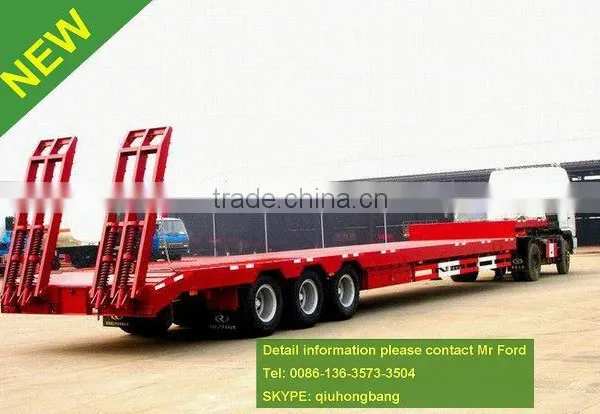

Brand new 3 axles red color low bed semi trailer hydraulic low bed trailer
1.Leg capacity 26000kg
2.Total 3 axles
3.Equip with 12 wheels

Model	9400TDP
Diemension (LxWxH)	15000×3200×2800
Payload (kg)	32000
Total weight (kg)	40000
Curb weight	8000
Material	Carbon steel Q235A
Top & Bottom	5mm thickness /
Front / Rear suspension (mm):	/1600
Front tread / Rear tread(mm):	2180/2180/2180
Wheelbase (mm):	8200+1305+1305
Spring number	10, 10, 10
Axle loading weight (kg)	24000
Approach/depature angle (°)	/18
Trailer construction
Trailer chassis	high tensile steel
Axles & suspension	3 axles, FUWA 13T with FUWA leaf spring suspension
Landing leg	FUWA at both front sides of trailer, control on the right side
Kingpin	2' JOST kingpin fixed on tensile steel plate
Braking system	Dual-ways air brake, drum brake system without ABS.
Electrical system	24V electrical system in accordance to Chinese standard(7 pins socket)
Electric wiring	Semi heat insulation cable, protected with PVC conduit
Lighting	24V electrical system in accordance to Chinese standard, tail brake, signal, reverse and fog light at rear, marker light, complete with reflective tape at rear and sides.
Rear Bumper	Steel, Manufacturer 's standard
Tyres	12+1 spare x tubeless tire 289/80-22.5
Chassis finishes	1 coat anti-rust, 1 coat base and 1 finishing coat.

Detail information please contact Mr Ford, Mobile phone 0086-136-3573-3504, SKYPE: qiuhongbang, Mail: truck-cn at , Warm salute you come to visit factory.

...
