50T Low Bed Semi Trailer Low Bed Flat Trailer 0086-13635733504
US$ 18,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
OEM No.:
9400
Max Payload:
40000kg
Size:
12500x3000x3100mm
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Red 2 Axles Trailer Semi Trailer Exvacator Transport Trailer 0086-13635733504US$ 18,000 - 19,000MOQ: 1 Set -
Red 2 Axles Trailer Low Bed Semi Trailer 0086-13635733504US$ 18,000 - 19,000MOQ: 1 Set
-
50T Low Bed Semi Trailer Low Bed Semi Trailer Dimensions 0086-13635733504US$ 18,000 - 20,000MOQ: 1 Set
-
Red 2 Axles Trailer Semi Trailer Sale 0086-13635733504US$ 18,000 - 19,000MOQ: 1 Set
-
50T Low Bed Semi Trailer 50 Tons Low Bed Trailer 0086-13635733504US$ 18,000 - 20,000MOQ: 1 Set
OEM No.
9400
Max Payload
40000kg
Size
12500x3000x3100mm
Place of Origin
Hubei, China
Brand Name
RUNLI
Model Number
9400

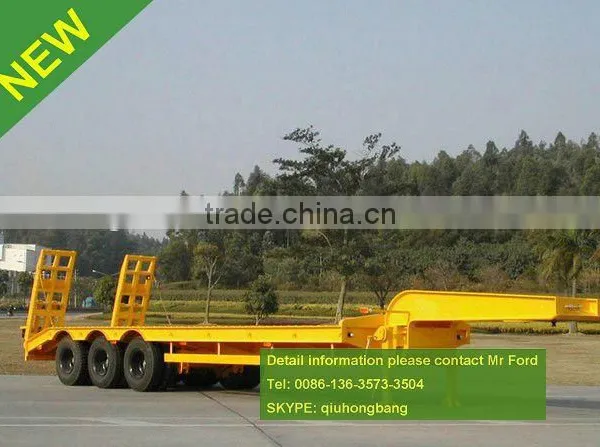

Brand new 3 axles red color low bed semi trailer low bed flat trailer
1.Leg capacity 26000kg
2.Total 3 axles
3.Equip with 12 wheels
| Model | 9400TDP |
| Diemension (LxWxH) | 15000×3200×2800 |
| Payload (kg) | 32000 |
| Total weight (kg) | 40000 |
| Curb weight | 8000 |
| Material | Carbon steel Q235A |
| Top & Bottom | 5mm thickness / |
| Front / Rear suspension (mm): | /1600 |
| Front tread / Rear tread(mm): | 2180/2180/2180 |
| Wheelbase (mm): | 8200+1305+1305 |
| Spring number | 10, 10, 10 |
| Axle loading weight (kg) | 24000 |
| Approach/depature angle (°) | /18 |
| Trailer construction | |
| Trailer chassis | high tensile steel |
| Axles & suspension | 3 axles, FUWA 13T with FUWA leaf spring suspension |
| Landing leg | FUWA at both front sides of trailer, control on the right side |
| Kingpin | 2' JOST kingpin fixed on tensile steel plate |
| Braking system | Dual-ways air brake, drum brake system without ABS. |
| Electrical system | 24V electrical system in accordance to Chinese standard(7 pins socket) |
| Electric wiring | Semi heat insulation cable, protected with PVC conduit |
| Lighting | 24V electrical system in accordance to Chinese standard, tail brake, signal, reverse and fog light at rear, marker light, complete with reflective tape at rear and sides. |
| Rear Bumper | Steel, Manufacturer 's standard |
| Tyres | 12+1 spare x tubeless tire 289/80-22.5 |
| Chassis finishes | 1 coat anti-rust, 1 coat base and 1 finishing coat. |
Detail information please contact Mr FordMobile: 0086-136 3573 3504, Skype: qiuhongbang
....
