High Pressure EPDM Resistant Hydraulic Hose Steam Pipe
Construction:
Tube: Black,SBR compound synthetic rubber.
Reinforcement: High tensile textile cord with helix steel wire;
Cover: Black,wrapped finish,SBR rubber, weather and abrasion resistant
Length: Up to 100metres continuous length.
| I.D | O.D | W.P | B.P | Bend Radius | Weight | Length | ||
| mm | inch | mm | Psi | bar | bar | mm | kg/m | m |
| 6 | 1/4 | 12 | 300 | 20 | 60 | 50 | 0.15 | 100 |
| 8 | 5/16 | 14 | 300 | 20 | 60 | 64 | 0.17 | 100 |
| 10 | 3/8 | 17 | 300 | 20 | 60 | 90 | 0.25 | 100 |
| 13 | 1/2 | 23 | 225 | 15 | 45 | 120 | 0.46 | 100 |
| 16 | 5/8 | 26 | 225 | 15 | 45 | 150 | 0.53 | 100 |
| 19 | 3/4 | 29 | 225 | 15 | 45 | 170 | 0.6 | 100 |
| 22 | 7/8 | 32 | 225 | 15 | 45 | 200 | 0.68 | 100 |
| 25 | 1 | 37 | 225 | 15 | 45 | 250 | 0.98 | 100 |
| 32 | 1-1/4 | 45 | 145 | 10 | 30 | 320 | 1.25 | 60 |
| 38 | 1-1/2 | 51 | 145 | 10 | 30 | 380 | 1.47 | 60 |
| 45 | 1-3/4 | 58 | 145 | 10 | 30 | 450 | 1.76 | 60 |
| 51 | 2 | 64 | 145 | 10 | 30 | 510 | 1.92 | 60 |
| 57 | 2-1/4 | 70 | 145 | 10 | 30 | 570 | 2.11 | 60 |
| 64 | 2-1/2 | 78 | 145 | 10 | 30 | 640 | 2.56 | 60 |
| 76 | 3 | 90 | 145 | 10 | 30 | 760 | 2.97 | 60 |
| 89 | 3-1/2 | 104 | 145 | 10 | 30 | 890 | 3.68 | 60 |
| 102 | 4 | 117 | 145 | 10 | 30 | 1020 | 4.22 | 60 |
NOTE:Other sizes, pressure and colors availablr on the requirment. | ||||||||

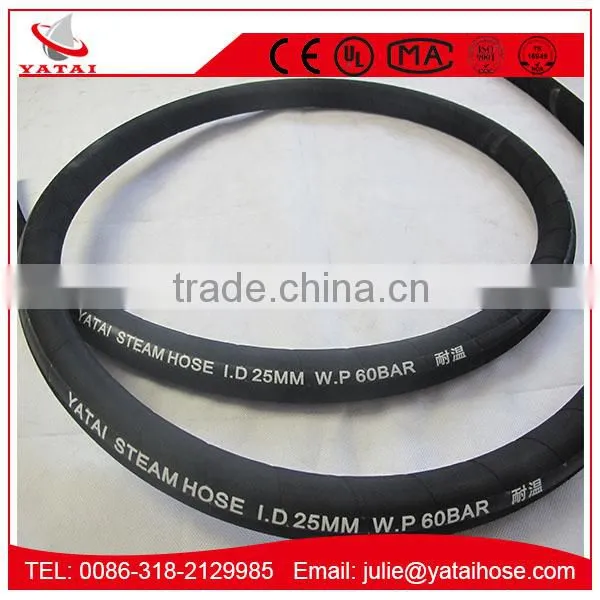

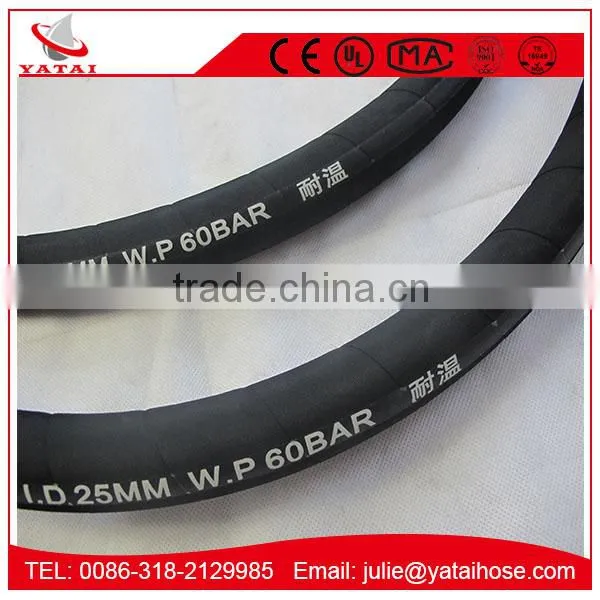

Steam Pipe Pictures:
Steam Pipe Exhibition
Steam Pipe Processing Procedures:
Welcome to enquiire for High Pressure EPDM Resistant Hydraulic Hose Steam Pipe
