YATAI Heat Resistant Hydraulic Rubber Steam Pipe

YATAI Heat Resistant Hydraulic Rubber Steam Pipe thumbnail-1
YATAI Heat Resistant Hydraulic Rubber Steam Pipe thumbnail-2
YATAI Heat Resistant Hydraulic Rubber Steam Pipe thumbnail-3
YATAI Heat Resistant Hydraulic Rubber Steam Pipe thumbnail-4
YATAI Heat Resistant Hydraulic Rubber Steam Pipe thumbnail-5
YATAI Heat Resistant Hydraulic Rubber Steam Pipe thumbnail-6
YATAI Heat Resistant Hydraulic Rubber Steam Pipe photo-1
YATAI Heat Resistant Hydraulic Rubber Steam Pipe photo-2
YATAI Heat Resistant Hydraulic Rubber Steam Pipe photo-3
YATAI Heat Resistant Hydraulic Rubber Steam Pipe photo-4
YATAI Heat Resistant Hydraulic Rubber Steam Pipe photo-5
YATAI Heat Resistant Hydraulic Rubber Steam Pipe photo-6
US$ 0.5 - 5.8 MOQ: 300 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
YATAI
Model Number:
3.3-51mm
Contact Supplier Request Quote Chat Now
Hengshui Yatai Especial Rubber Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Port Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name YATAI
Model Number 3.3-51mm

YATAI Heat Resistant Hydraulic Rubber Steam Pipe

                                                              Related Products

Company Information



  HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTDis established in 2001 year.



QUALITY IS OUR COMPANY SOUL!!!



MAIN PRODUCT TYPE

PRODUCT DETAILS

Hydraulic Hose and Fitting

Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17)

Steel Wire Spiral Reinforcement Hose(2SP 4SP 4SH 6SP R9 R12 R13 R15)

Fibre Braided Covered Hose (R5)

Acid and Alkali Resistant Rubber Hose

Air Screw Compressor Hose

Middle Pressure Fibre Reinforcement Hose(R3 R6 1TE 2TE 3TE)

Thermoplastic Hose(SAE100R7 SAE100R8)

Nylon Hose(Single and Double Hose)

Industrial Hose

Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose

Special Hose

Concrete Pump Hose, High Pressure Drilling Hose, Inflatable Packers

Machine Equipment

Crimping Machine, Cutting Machine





























































Product Description

            YATAI Heat Resistant Hydraulic Rubber Steam Pipe



Application of Steam Hose:

Steam hose is for Conveying saturated steam and superhated water continually at a temperature below 150° or intermittently at a temperature below 160°



Structure:



Inner tube: EPDM



Reinforcement: Steel wire or textile



Cover: EPDM



Temperature range: -40 to 160°C







W/B Hose I.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Length
inch inch mm MPa psi MPa psi mm metres
1W 10 3/8 21.5 1 150 4 570 130 50/20
13 1/2 24.5 1 150 4 570 180 50/20
16 5/8 27.5 1 150 4 570 205 50/20
19 3/4 30.5 1 150 4 570 240 50/20
22 7/8 33.5 1 150 4 570 280 50/20
25 1 37 1 150 4 570 300 50/20
32 1 1/4 44 1 150 4 570 420 40/20
38 1 1/2 50.5 1 150 4 570 500 40/20
45 1 3/4 57.5 1 150 4 570 500 40/20
51 2 63.5 1 150 4 570 630 40/20
64 2 1/2 77.5 1 150 4 570 700 40/20



W/B Hose I.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Length
inch inch mm MPa psi MPa psi mm metres
2W 10 3/8 23 2 300 6 860 130 50/20
13 1/2 26 2 300 6 860 180 50/20
16 5/8 29 2 300 6 860 205 50/20
19 3/4 32 2 300 6 860 240 50/20
22 7/8 35 2 300 6 860 280 50/20
25 1 38.5 2 300 6 860 300 50/20
32 1 1/4 45.5 2 300 6 860 420 40/20
38 1 1/2 52 2 300 6 860 500 40/20
45 1 3/4 59 2 300 6 860 500 40/20
51 2 65 2 300 6 860 630 40/20
64 2 1/2 79 2 300 6 860 700 40/20







I.D.

O.D.

W.P.

REIFORCE LAYER

WEIGHT

UNIT LENGTH



mm

in.

mm

psi.

mpa.

kg/m

m/roll

3/16

4.8

0.45

11.5

300

2.07

1

0.15

100

1/4

6.4

0.63

16

300

2.07

1

0.18

100

5/16

7.9

0.59

15.0

300

2.07

1

0.22

100

3/8

9.5

0.75

19.1

300

2.07

1

0.27

100

1/2

12.7

0.91

23.1

300

2.07

1

0.40

100

5/8

15.9

0.96

24.5

300

2.07

1

0.50

100

3/4

19.1

1.14

29.0

300

2.07

1

0.75

100

3/4

19.1

1.18

30.0

300

2.07

2

0.80

100

1

25.4

1.42

36.1

300

2.07

1

0.95

100

1

25.4

1.42

36.1

300

2.07

2

0.95

100

1 1/4

31.8

1.75

44.5

300

2.07

2

0.70

50

1 1/2

38.1

2

54.0

300

2.07

2

0.85

50







Packaging & Shipping

            YATAI Heat Resistant Hydraulic Rubber Steam Pipe

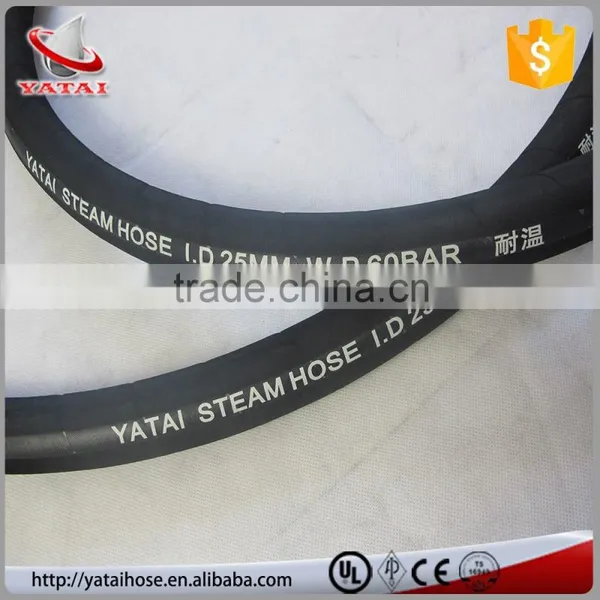

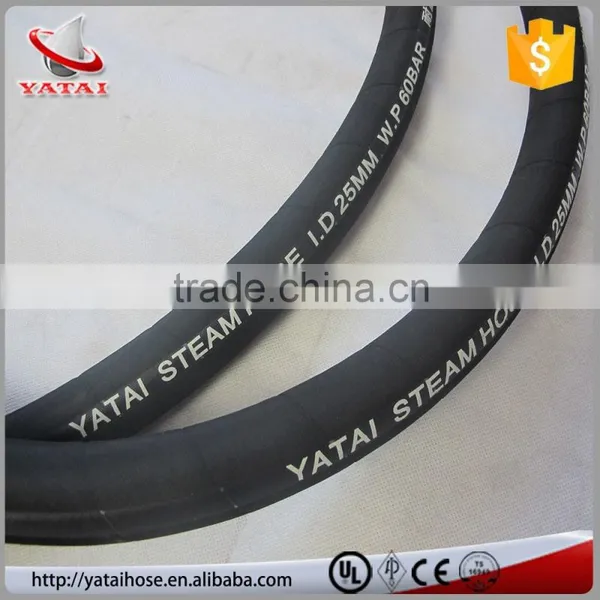

  Steam Pipe Pictures:

YATAI Heat Resistant Hydraulic Rubber Steam Pipe

YATAI Heat Resistant Hydraulic Rubber Steam PipeYATAI Heat Resistant Hydraulic Rubber Steam PipeYATAI Heat Resistant Hydraulic Rubber Steam Pipe

                            Steam Pipe Producing Line:

              Steam Pipe Exhibition and Certification:YATAI Heat Resistant Hydraulic Rubber Steam Pipe

                   Steam Pipe Feedback from Clients:
