Oil Resistant Rotary Drilling Hose API 7K Oil Well Drilling Hose/Cementing Hose
- 1000000000 Meter / Meters per Month
- Xingang Qingdao port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | YATAI Drilling Hose | Model Number: | 10-152MM |
Product Description
Wire Braided Hose | 1.SAE 100 R1 AT/DIN EN 853 1SN 2.SAE 100 R2 AT/DIN EN 853 2SN 3.SAE 100 R5 4.SAE 100 R17
|
Wire Spiral Hose | 1.SAE 100 R9 2.SAE 100 R12 3.SAE 100 R13 4.SAE 100 R15 5.DIN-EN 856 4SP 6.DIN-EN 856 4SH 7.EN857-1SC 8.EN857-2SC |
Fiber Braided Hose | 1.SAE 100 R3 2.SAE 100 R4 3.SAE 100 R6 4.SAE 100 R7 5.SAE 100 R8 6.EN854-1TE 7.EN854-2TE 8.EN854-3TE
|
Other Products | 1.SAE 100R14(Teflon Hose) 2.Metal Flexible Hose 3.High Pressure Hose Assembly 4.Steam Hose 5.Acid and Alkali Resistant Hose 6.Water/Oil/Air Hose 7.Inflatable Packer 8.Fire Resistant Hose 9.Coalmine Underground Drainage Gas Rubber Hose etc |
Oil Resistant Rotary Drilling Hose API 7K Oil Well Drilling Hose/Cementing Hose

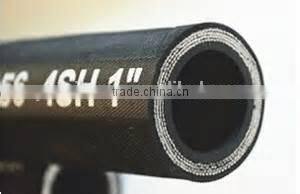

DIN-EN 856 4SH/4SP Hose Structure :
1.Tube:Oil Resistant Synthetic Rubber
2.Reinforcement:Four high tensile steel wire spiral layers(4W/S)
3.Rubber Hose Cover:Abrasion and weather resistant synthetic rubber,MSHA accepted
4.Temperature range: -40°C degree to +125°C degree
Two layers technical performance index
Hose code | ID mm | OD mm | Winding layer ID mm | WP MPa | BP MPa | Bend Radius mm | Weight kg/m |
Number*ID*WP MPa | |||||||
2SP-51-15 | 51±1.0 | 66±1.5 | 60.8±1.0 | 15 | 60 | 850 | 5.0 |
2SP-64-15 | 64±1.2 | 82±1.5 | 75±1.0 | 15 | 60 | 1000 | 5.7 |
2SP-76-15 | 76±1.4 | 99±2.0 | 92±2.0 | 15 | 60 | 1100 | 8.5 |
2SP-89-15 | 89±1.4 | 114±2.0 | 107±2.0 | 15 | 60 | 1200 | 9.5 |
2SP-102-15 | 102±1.5 | 126±2.0 | 119±2.0 | 15 | 60 | 1300 | 12 |
Four layer technical performance index
Hose code | ID mm | OD mm | Winding layer ID mm | WP MPa | BP MPa | Bend Radius mm | Weight kg/m |
Number*ID*WP MPa | |||||||
4SP-51-35 | 51±1.0 | 69±1.5 | 63.8±1.0 | 35 | 87 | 900 | 5.7 |
4SP-64-35 | 64±1.2 | 85±1.5 | 78±1.0 | 35 | 87 | 1100 | 6.7 |
4SP-76-35 | 76±1.4 | 107±2.0 | 101±2.0 | 35 | 87 | 1200 | 16.2 |
4SP-89-35 | 89±1.4 | 122±2.0 | 114±2.0 | 35 | 87 | 1300 | 18.4 |
4SP-102-35 | 102±1.5 | 139±2.0 | 132±2.0 | 35 | 87 | 1400 | 20.3 |
Six layer technical performance index
Hose code | ID mm | OD mm | Winding layer ID mm | WP MPa | BP MPa | Bend Radius mm | Weight kg/m |
Number*ID*WP MPa | |||||||
6SP-51-70 | 51±1.0 | 72±1.5 | 66.8±1.0 | 70 | 175 | 1000 | 6.2 |
6SP-64-70 | 64±1.2 | 88±1.5 | 81±1.0 | 70 | 175 | 1200 | 7.4 |
6SP-76-70 | 76±1.4 | 116±2.0 | 09±2.0 | 70 | 175 | 1300 | 23.7 |
6SP-89-70 | 89±1.4 | 129±2.0 | 122±2.0 | 70 | 175 | 1400 | 26.6 |
6SP-102-70 | 102±1.5 | 142±2.0 | 135±2.0 | 70 | 175 | 1600 | 29.8 |

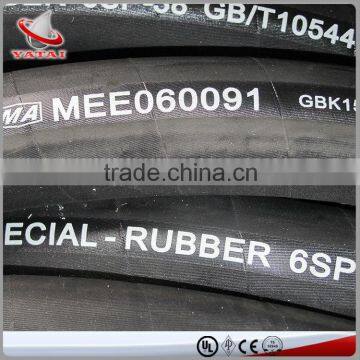

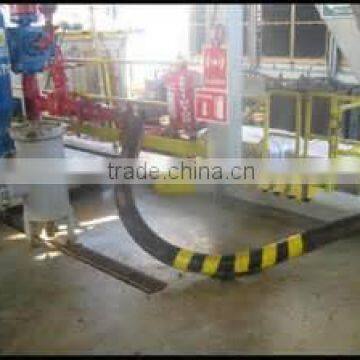

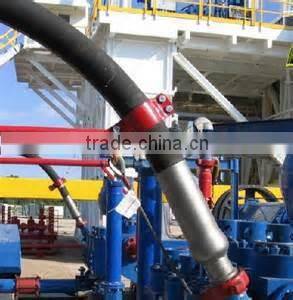

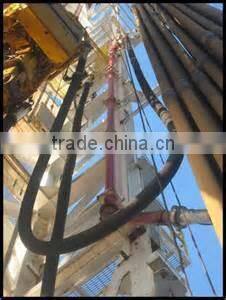

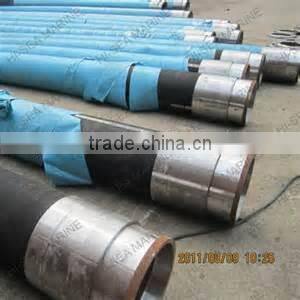

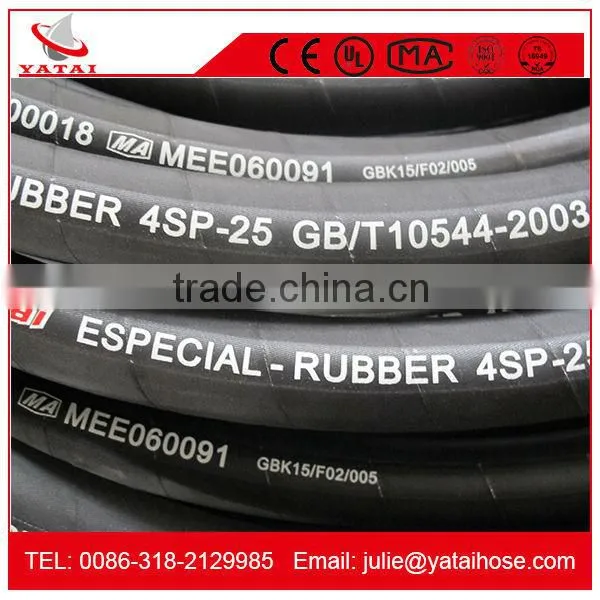

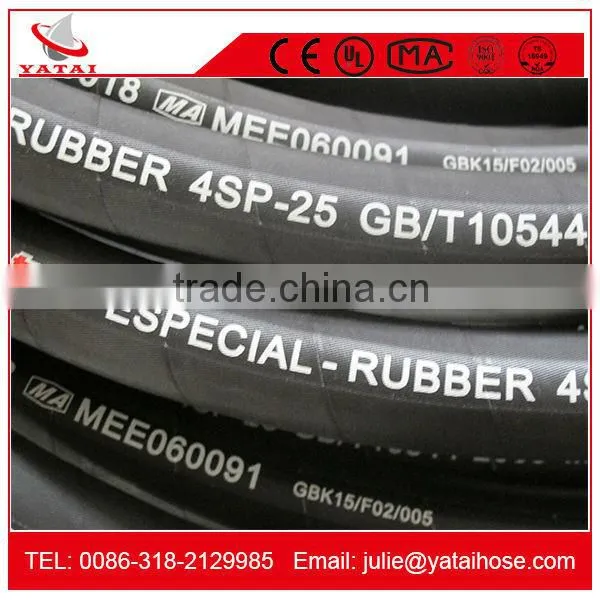

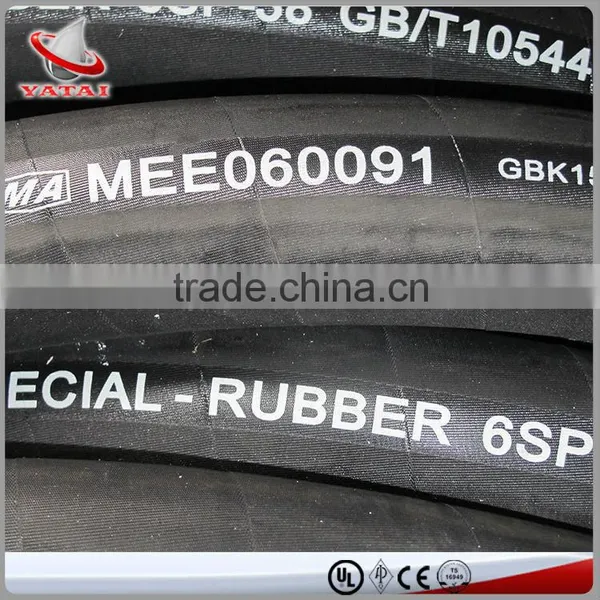

Oil Well Drilling Hose/Cementing Hos Pictures:
Oil Well Drilling Hose/Cementing Hose Buyers: Oil Well Drilling Hose/Cementing Hose Export to all of the World: Oil Well Drilling Hose/Cementing Hose Processing Procedures:
