Hot Product Hot Sale 4 Hose Hookah
Rubber hose Tube:
Oil resistant synthetic rubber
rubber hose Reinforcement:
One or two steel wire braided layer
rubber hose Cover:
Oil, abrasion and weather resistant synthetic rubber. MSHA approved
rubber hose Temperature Range:
-40° to 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).
rubber hose Application:
For medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.
Hydraulic Hose (SAE 100R1AT, EN 853-1SN)
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 | 50/100 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 | 50/100 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20/40 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20/40 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20/40 |
Hydraulic Hose (SAE 100 R2AT/DIN EN 853 2SN)
DN |
Hose I.D |
Wire O.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
metres |
|
5 |
3/16 |
4.8 |
11.1 |
14.1 |
41.4 |
6000 |
160 |
23720 |
89 |
0.32 |
50/100 |
6 |
1/4 |
6.4 |
12.7 |
15.7 |
40 |
5800 |
160 |
22840 |
102 |
0.36 |
50/100 |
8 |
5/16 |
7.9 |
14.3 |
17.3 |
36 |
5250 |
140 |
20000 |
114 |
0.45 |
50/100 |
10 |
3/8 |
9.5 |
16.7 |
19.7 |
33.1 |
4800 |
132 |
18840 |
127 |
0.54 |
50/100 |
13 |
1/2 |
12.7 |
19.8 |
23.1 |
27.6 |
4000 |
110 |
15720 |
178 |
0.68 |
50/100 |
16 |
5/8 |
15.9 |
23 |
26.3 |
25 |
3630 |
100 |
14280 |
203 |
0.8 |
50/100 |
19 |
3/4 |
19.0 |
27 |
30.2 |
21.5 |
3120 |
85 |
12280 |
241 |
0.94 |
50/100 |
25 |
1 |
25.4 |
34.9 |
38.9 |
16.5 |
2400 |
65 |
9420 |
305 |
1.35 |
50 |
32 |
1 1/4 |
31.8 |
44.5 |
49.6 |
12.5 |
1820 |
50 |
7140 |
419 |
2.15 |
20 to 40 |
38 |
1 1/2 |
38.1 |
50.8 |
56.0 |
9 |
1310 |
36 |
5140 |
508 |
2.65 |
20 to 40 |
51 |
2 |
50.8 |
63.5 |
68.6 |
8 |
1160 |
32 |
4560 |
635 |
3.42 |
20 to 40 |

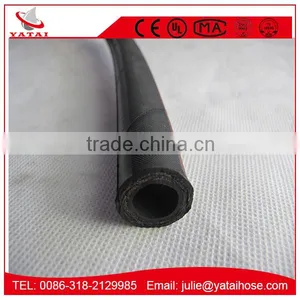

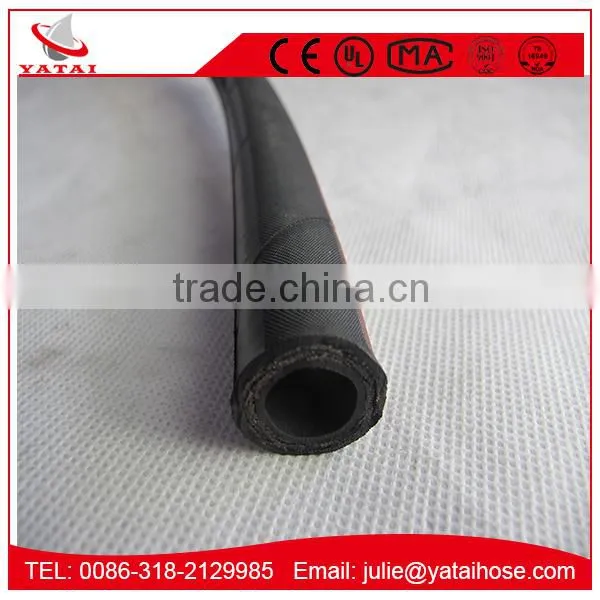

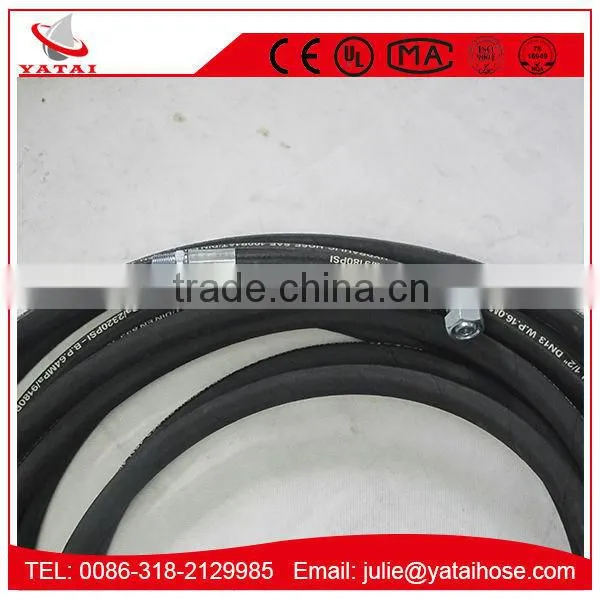

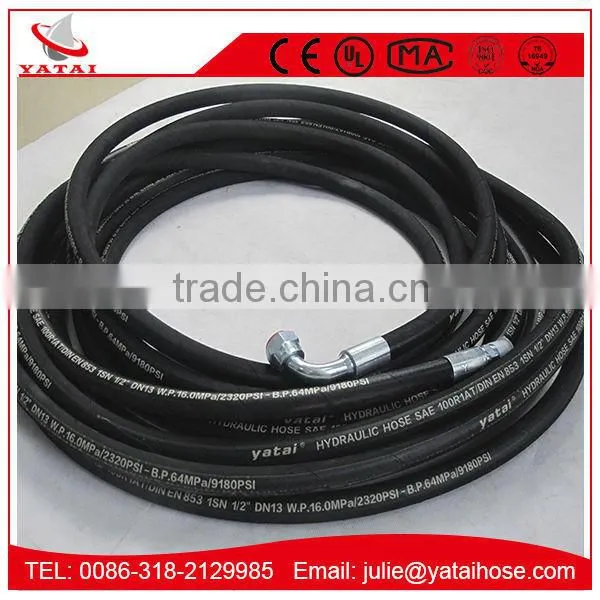

4 Hose Hookah Picture:
4 Hose Hookah Exhibition:
4 Hose Hookah Processing Procedures:
Welcome to enquiry for 4 Hose Hookah
.
