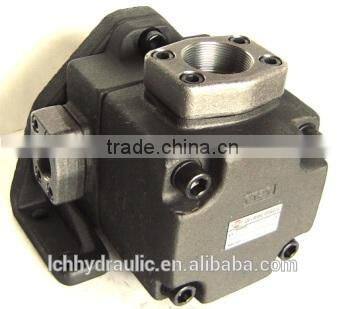

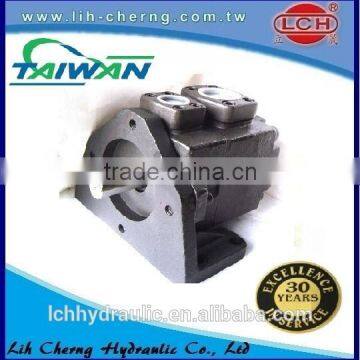

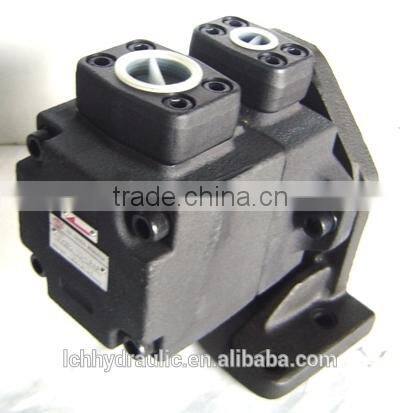

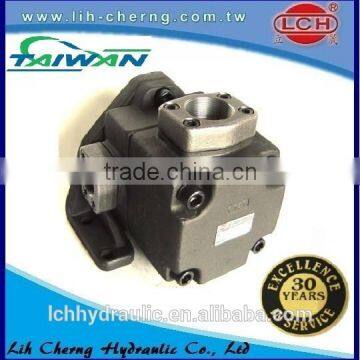

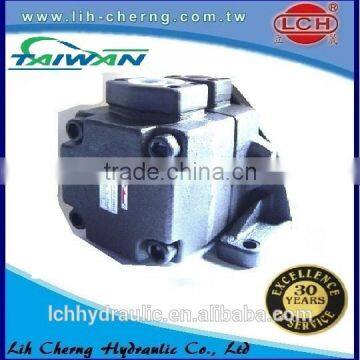

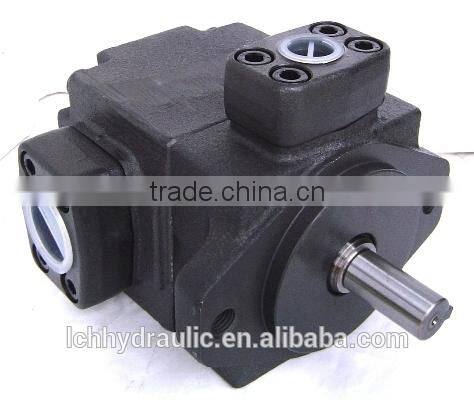

PV2R series hydraulic fixed displacement vane pump
Features:
*Large flow rate and high pressure with more compact size of the pump on the market. *Maximum working pressure could up to 210kgf/cm2 *Either inlet or outlet ports can be chosen for easier installation and maintainance. *Rotating directions (clockwise or counter-clockwise) could be choose for preference.

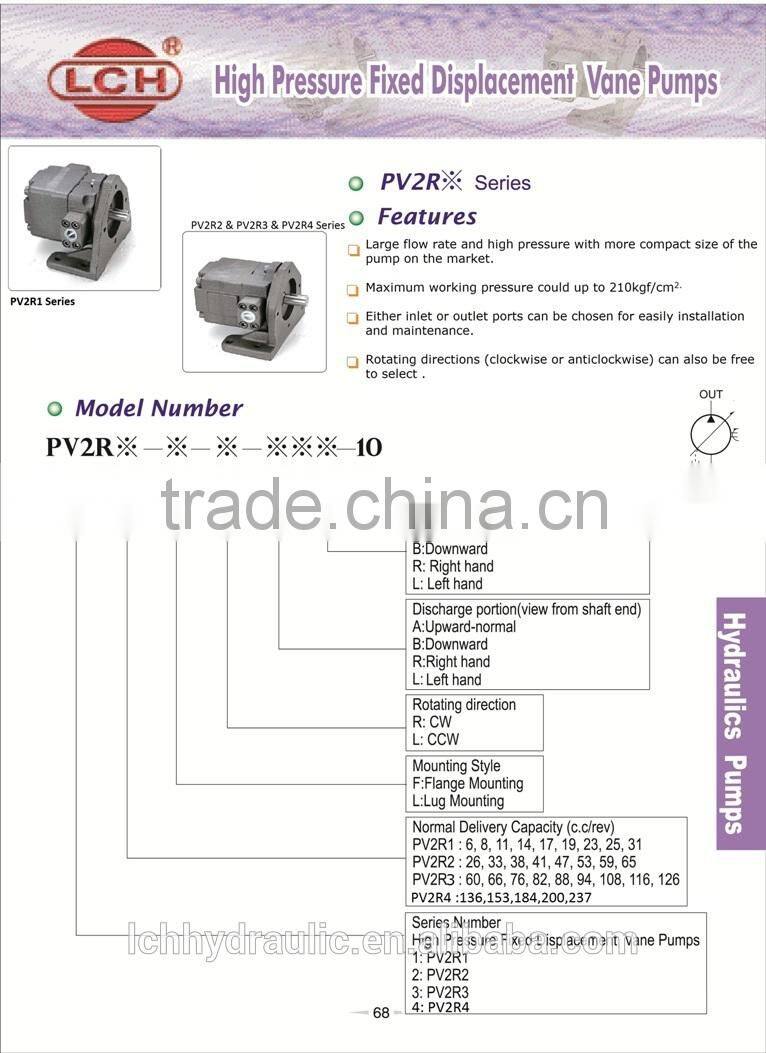

Model Number:
PV2R-*(Normal Delivery Capacity)-*Mounting style-*Rotating direction-*(Discharge portion)-
Specifications:
Series Number: 1:PV2R1, 2: PV2R2, 3:PV2R32 Normal Delivery Capacity (cc/rev) PV2R1:6,8,11,14,17,19,23,25,31, PV2R2:26,33,38,41,47,53,59,65 PV2R3:60,66,76,82,88,97,108,116,126, Mouting Style: F: flange Mounting L: Lug Mounting Rotating direction: R: CW, L CCW Discharge portion A: Upward-normal B: Downward R: Right hand L: Left hand
vane pumps, liquid pumps, power pack units
Company History:
Product process:
Q.How to request a manufacturing quote from LCH?
A.Give us a call or send us an E-mail (lch at .tw) with your purchase request.
Q.What are your quality control procedures?
A.LCH is equpped with high-tech, advaned cmputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason hy LCH is recognized as on the world class quality level.
Q.How are orders packed and shipped?
A. Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigatation).
Q. Could LCH offer OEM service?
A.Yes. LCH is able to offer OEM with customers' brand name and trademark onto the product.
Q.Do LCH products come with a warranty?
A.Yes.LCH offer 1-year product life guarantee without abusive usage on all purchases which begins with the bill of lading.
