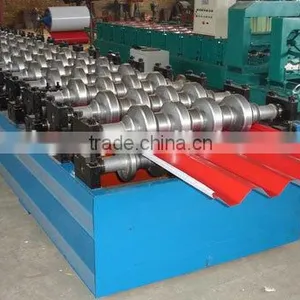

Roller shutter door making machine and sheet forming machine

Specifications

roller shutter machine
1. PLC control
2. Thickness: 0.25mm-0.6mm
3. Length: 1meter -13 meter
4. Corrugated sheet

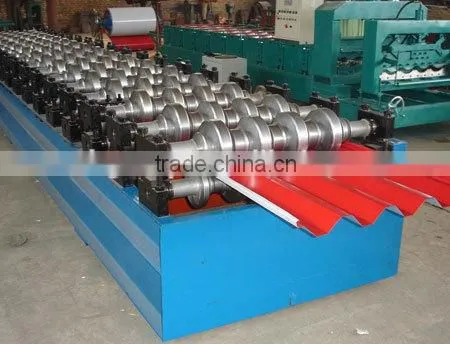

Corrugated sheet forming machine / roof and wall sheet maching machine



1 Application of sheet forming machine/ roller shtter machine



The panel forming line can manufacture various kinds of beautiful roof and wall panels. Produced panel has a beautiful appearance and bright color, which are widely used in garden, factory, resort, hotel, exhibition hall, vacationland, ancient architectures and modern villa.



2.  Specifications



Product name	Corrugated steel sheet making machine
Components	Manual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Applicance	Roof and wall sheet
Control system	PLC colored touch screen
Load-bearing capacity of manual decoiler	4 Tons
Main machine frame material	250 H steel
Forming speed	8 meters / minute
Roller station	9 rows
Diameter of principal axis	70mm
Roller material	45# chrome coating
Hydraulic motor power	3 kw
Hydraulic oil pump	Gear pump
Cutter blade	Cr 12 H
Cutter blade heat treatment	HRC58° —60°
Feeding width	1000 mm
Forming thickness	0.3mm-0.7mm
Overall size	8000×1650×1500mm
Total weight	5 T
1. Delivery: within 7 days after we got your advance payment.
2. Package: Standard package for container
3. Payment: TT (30% deposit by TT in advance,70% balance paid against B/L copy.)
4. Package style: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
5. Warranty:  1 year and life-long maintainance *Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee. * Installation Days: about 5-7 days



 3. Model available

Corrugation models: 25-210-840 glazed

                                 25-207-828 glazed

                                 15-225-900

                                 25-210-1050

                                 27-190-750/950

                                 30-200-800/1000

                                 10-130-910

                                 40-320-960

                                 38-320-980

                                 35-125-750

4. Ridge cap machine



450 model ridge





 312 roof ridge / corner machine



5. Common sheet forming machine



For more detailed model information, pls contact Fay Gao 18632169172



Model: 12-65-850



Model: 28-220-1100



Model: 25-210-840





Model: 12-65-850 / 25-210-840 ( Two models same machine)





Model: 25-207-828



roller shutter forming machine





6. Components:

Manual decoiler, main machine of roll forming, electro-motor, cutting device, hydraulic station, PLC control, supporting table, guiding platform



Guiding platform



Decoiler
