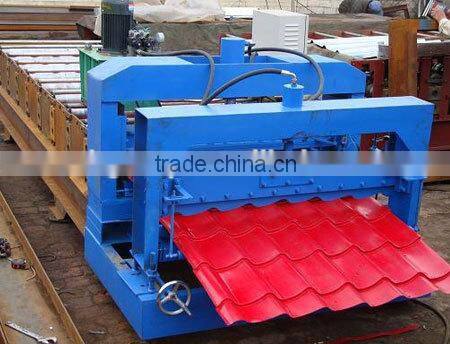

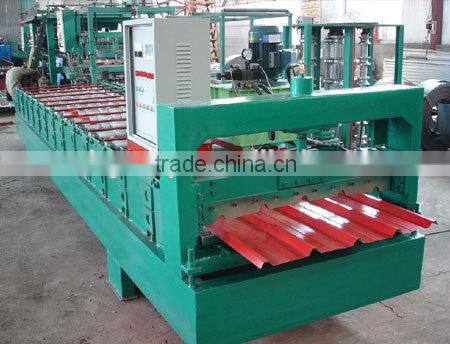

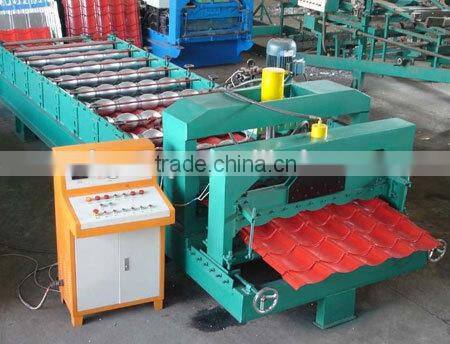

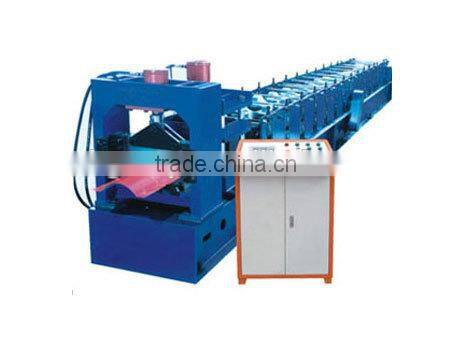

Roof Sheet Profile / Roof Tile Making Machine With PLC Control Screen

Name: Roof Sheet Profile / Roof Tile Making Machine With PLC Control Screen
Brand: WZH group
SKU: 101040329
Availability: InStock

Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd.

US$ 5,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Tile Forming Machine

Tile Type:

Colored Steel

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Tile Forming Machine

Tile Type Colored Steel

Use Other, roller shutter

Production Capacity 9 m / min

Place of Origin Hebei, China

Brand Name WZH group

Model Number 700

Power(W) 220 V / 50Hz

Voltage 3 kw

Weight 4 tons

Certification BV

Warranty lifelong warranty

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Corrugated sheet machine
1. PLC control
2. Thickness: 0.25mm-0.6mm
3. Length: 1meter -13 meter

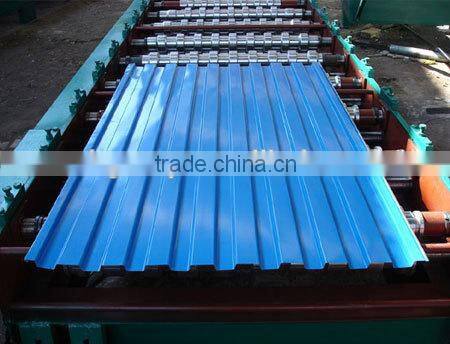

4. Corrugated sheet

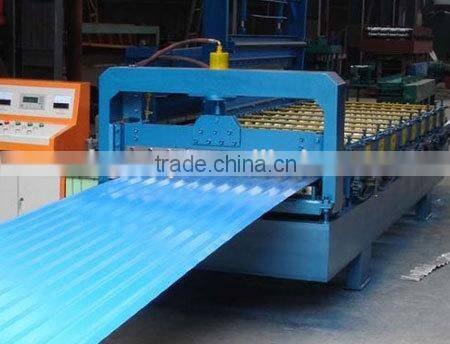

Corrugated sheet forming machine / roof and wall sheet making machine

1 Application of sheet forming machine/ roller shtter machine

The panel forming line can manufacture various kinds of beautiful roof and wall panels. Produced panel has a beautiful appearance and bright color, which are widely used in garden, factory, resort, hotel, exhibition hall, vacationland, ancient architectures and modern villa.

Product Description

2. Specifications

Product name	Corrugated steel sheet making machine
Components	Manual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Applicance	Roof and wall sheet
Control system	PLC colored touch screen

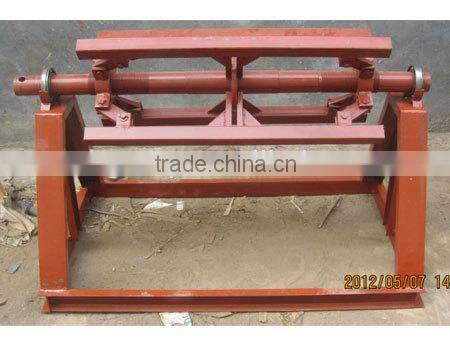

Load-bearing capacity of manual decoiler	4 Tons
Main machine frame material	250 H steel
Forming speed	8 meters / minute
Roller station	9 rows
Diameter of principal axis	70mm
Roller material	45# chrome coating
Hydraulic motor power	3 kw
Hydraulic oil pump	Gear pump
Cutter blade	Cr 12 H
Cutter blade heat treatment	HRC58° —60°
Feeding width	1000 mm
Forming thickness	0.3mm-0.7mm
Overall size	8000×1650×1500mm
Total weight	5 T
1. Delivery: within 7 days after we got your advance payment.
2. Package: Standard package for container
3. Payment: TT (30% deposit by TT in advance,70% balance paid against B/L copy.)
4. Package style: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
5. Warranty: 1 year and life-long maintainance Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee. Installation Days: about 5-7 days
