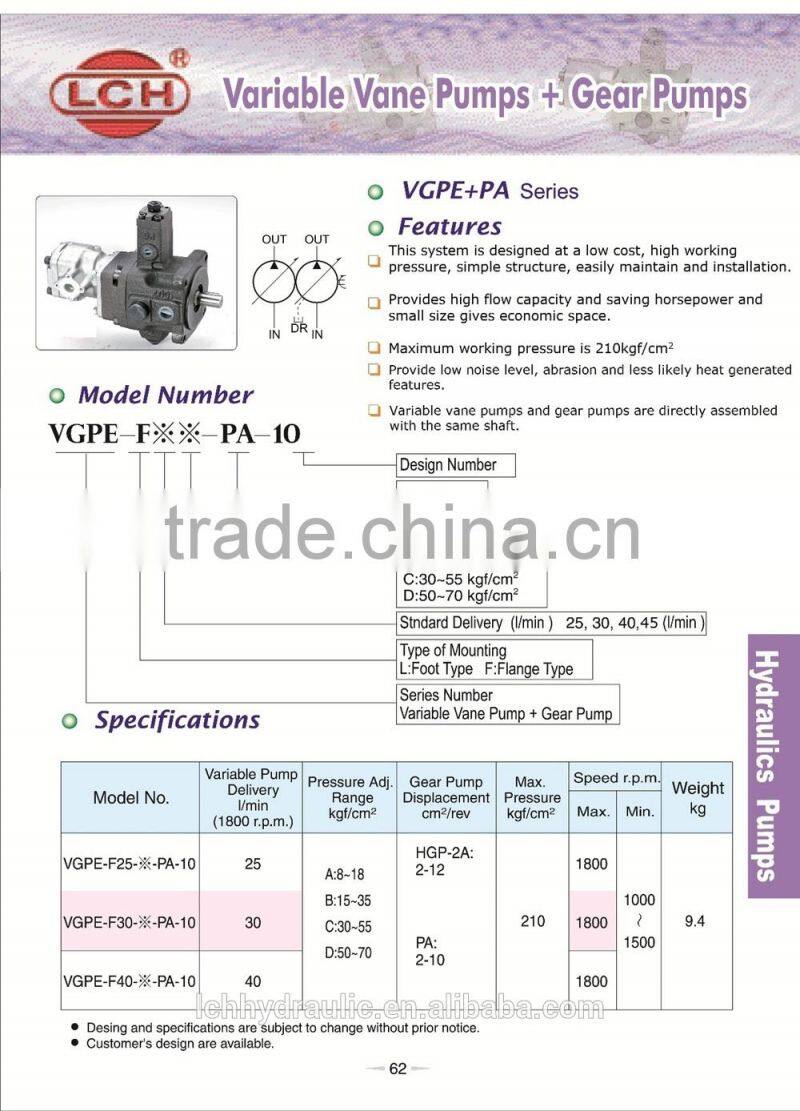

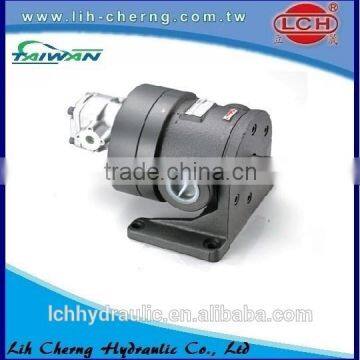

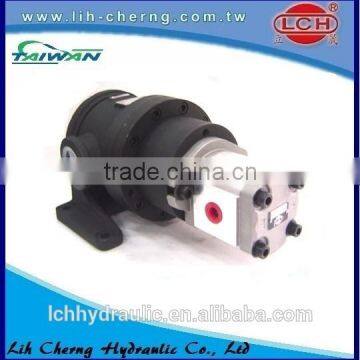

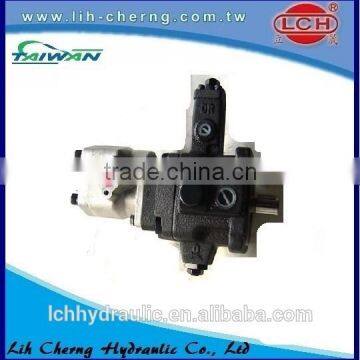

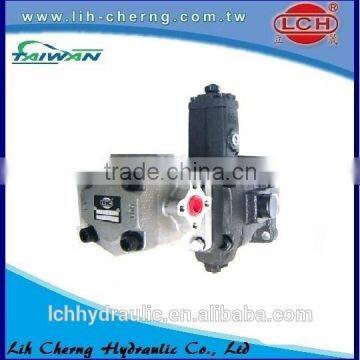

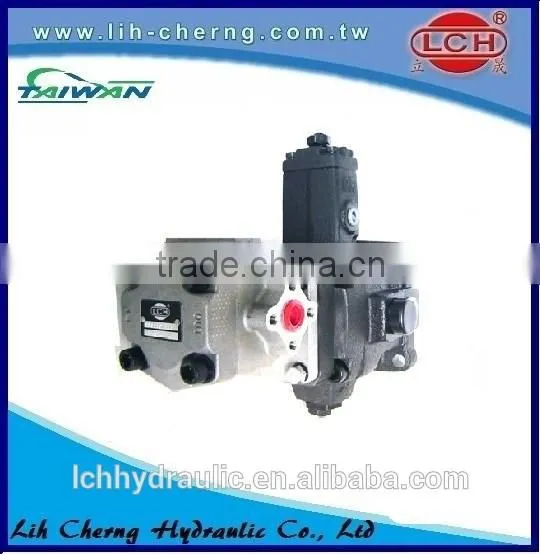

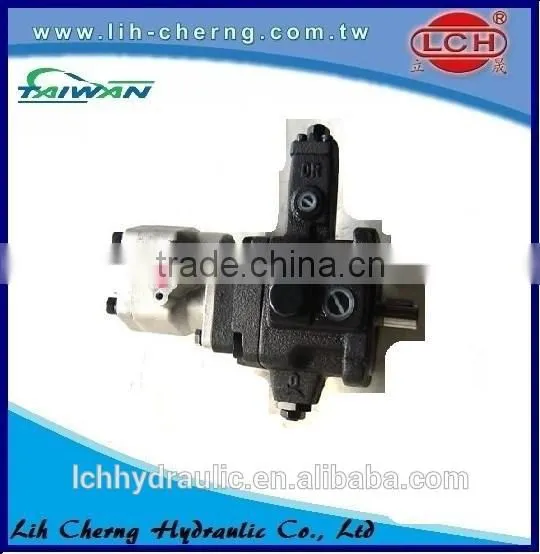

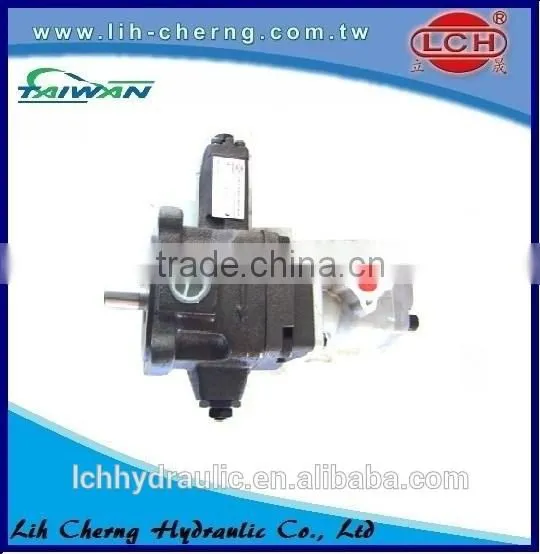

yuken variable rotary vane pump
Features:
This system is designed at a low cost, high working pressure, simple structure, easily maintain and installation.
Provides high flow capacity and saving horsepower and small size gives economic space.
Maximum working pressure is 210kgf/cm2
Provide low noise level, abrasion and less likely heat generated features.
Variable vane pumps and gear pumps are directly assembled with the same shaft.

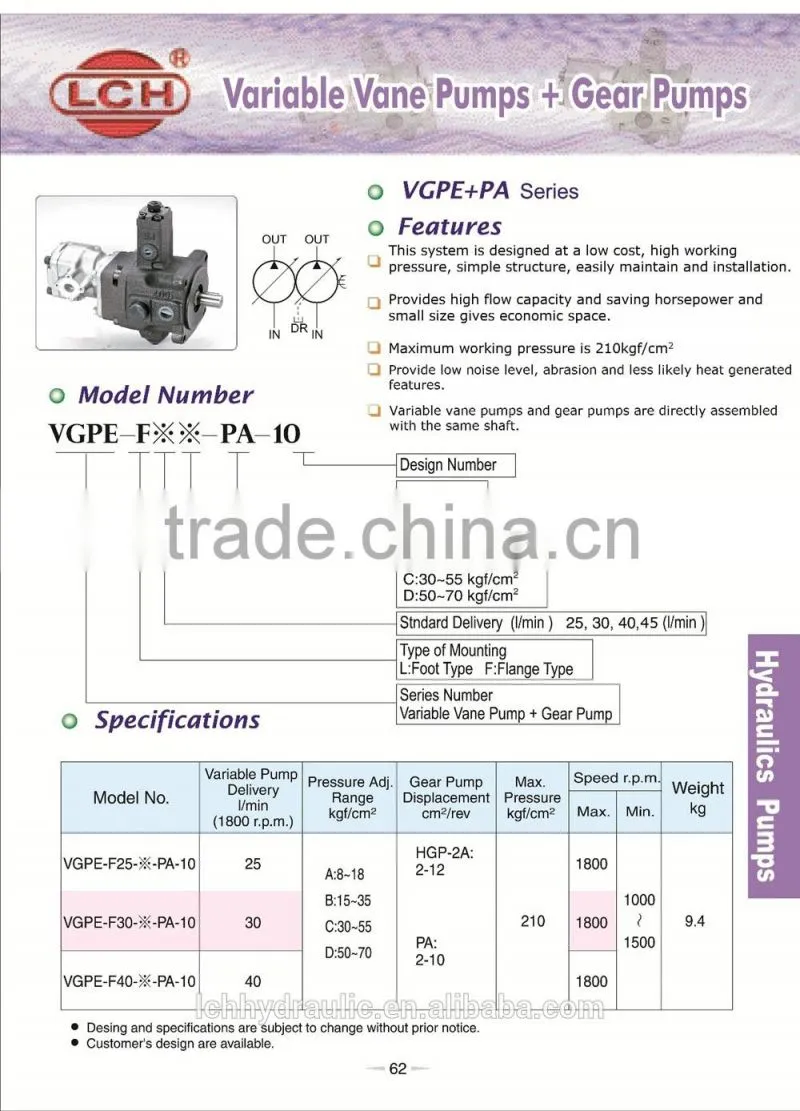

Specifications:
Model Numbers |
Variable Pump Delivery l/min (1800 r.p.m) |
Gear Pump Displacement Cm2/rev |
Pressure Adj. Range kgf/cm2 |
Speed r.p.m |
Max Pressure kgf/cm2 |
Weight kg |
|
Max. |
Min. |
||||||
VGPE-F25-PA-10 |
25 |
HGP-2A: 2-12 PA: 2-10 |
A:8-18 B:15-35 C:30-55 D:50-70 |
1800 |
1000- 1500 |
210 |
9.4 |
VGPE-F30-PA-10 |
30 |
1800 |
|||||
VGPE-F40-PA-10 |
40 |
1800 |
|||||
Model Number:
VGPE |
F |
|
|
PA |
10 |
l |
l |
l |
l |
|
|
|
Series Number Variable Vane +Gear Pump |
Mounting L: Foot Type F: Flange Type |
Standard delivery (l/min) 25, 30, 40 (l/min) |
Pressure Adj. Range A:8-18 B:15-35 C:30-55 D:50-70 |
Gear Pump |
Design Number |
Catalogs:
Related Products:
Company History:
Product process:
Q.How to request a manufacturing quote from LCH?
A.Give us a call or send us an E-mail (lch at .tw) with your purchase request.
Q.What are your quality control procedures?
A.LCH is equpped with high-tech, advaned cmputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason hy LCH is recognized as on the world class quality level.
Q.How are orders packed and shipped?
A. Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigatation).
Q. Could LCH offer OEM service?
A.Yes. LCH is able to offer OEM with customers' brand name and trademark onto the product.
Q.Do LCH products come with a warranty?
A.Yes.LCH offer 1-year product life guarantee without abusive usage on all purchases which begins with the bill of lading.
