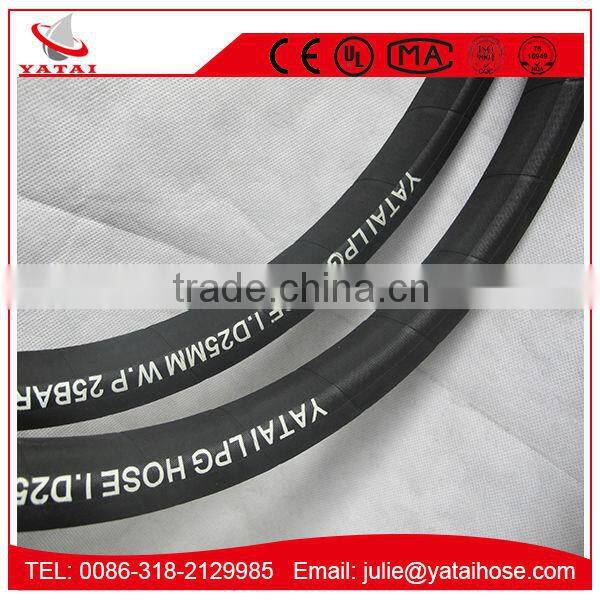

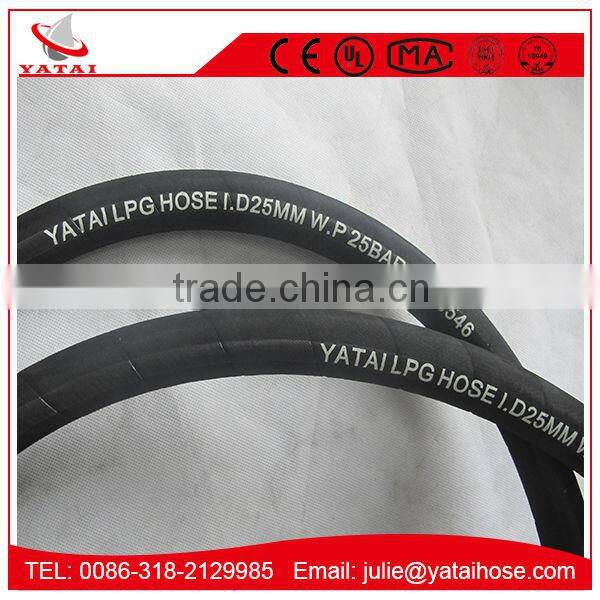

High Pressure Rubber Flexible LPG Hose

Insid

I.D.

O.D.

working pressure

Burst pressure

Bend radius

Weight

Length

inch

mm

mm

Mpa

Mpa

mm

kg/m

m/roll

1/4"

6

15.5

2.5

7.5

102

0.308

100

5/16"

8

17.5

2.5

7.5

114

0.324

100

3/8"

10

19.5

2.5

7.5

127

0.4

50

1/2"

13

23

2.5

7.5

178

0.548

50

5/8"

16

26

2.5

7.5

203

0.6

50

3/4"

19

30.5

2.5

7.5

241

0.76

50

1"

25

38

2.5

7.5

305

1.08

50

1-1/4"

32

46

2.5

7.5

419

1.28

50

1-1/2"

38

56

2.5

7.5

500

1.72

50

2"

51

70

2.5

7.5

630

2.9

50
