Steel Wire Braided High Pressure SAE 100 R5 LPG Hose
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established since 2001 year.
HIGH QUALITY IS OUR COMPANY SOUL!
Main Product Type | Product Details |
Hydraulic Hose and Fitting | Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17) |
Steel Wire Spiral Reinforcement Hose (2SP 4SP 4SH 6SP R9 R12 R13 R15) | |
Fabric Braided Covered Hose(R5) | |
Acid and Alkali Resistant Rubber Hose | |
Air Screw Compressor Hose | |
Fabric Reinforcement Hose(R3 R6 1TE 2TE 3TE) | |
Thermoplastic Hose(R7 R8) | |
Nylon Hose(Single and Double Hose) | |
Industrial Hose | Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose |
Special Hose | Concrete Hose, Drilling Hose, Inflatable Packer |
Machine Equipment | Crimping Machine, Cutting Machine |
Product Description

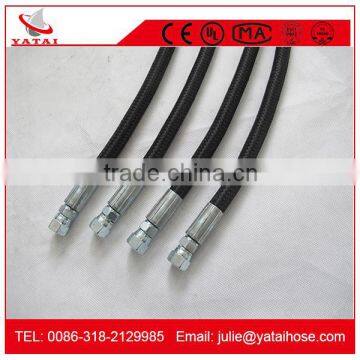

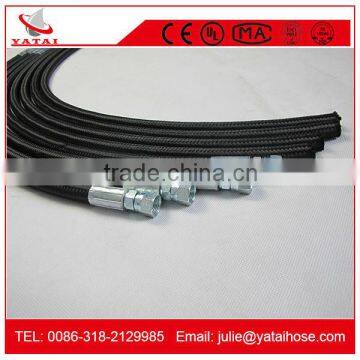

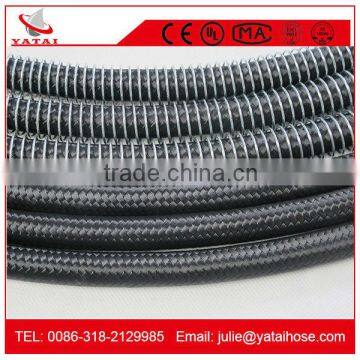

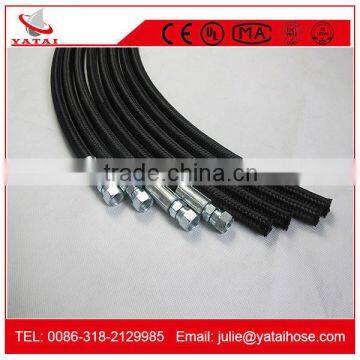

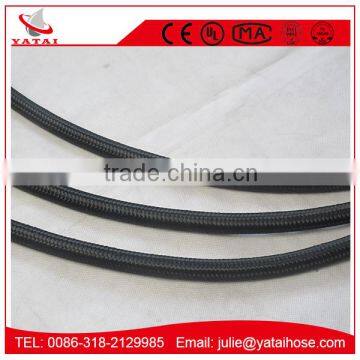

Steel Wire Braided High Pressure SAE 100 R5 LPG Hose
ITALY HYDRAULIC HOSE SAE 100 R5:
Application:
Medium pressure,suit for petroleum based hydraulic oil, air and water for use in air brakes, power steering, turbo oil lines,tilt cab cylinders,transmission coolant and filtration lines.
Tube: Oil resistant synthetic rubber.
Reinforcement: Fibre inber braid +One high tensile fibre braided (1T/B X 1W/B).
Cover: Impregnated textile braid
Temperature range: - 40ºC to + 100ºC
DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
INCH | MM | MM | MPA | PSI | MPA | PSI | MM | KG/M | M | |
5 | 3/16 | 4.8 | 13.2 | 20.7 | 3000 | 82.7 | 12000 | 76 | 0.24 | 50 |
6 | 1/4 | 6.4 | 14.8 | 20.7 | 3000 | 82.7 | 12000 | 86 | 0.29 | 50 |
8 | 5/16 | 7.9 | 17.1 | 15.5 | 2250 | 62.1 | 9000 | 102 | 0.36 | 50 |
11 | 13/32 | 10.3 | 19.5 | 13.8 | 2000 | 55.2 | 8000 | 117 | 0.48 | 50 |
13 | 1/2 | 12.7 | 23.4 | 12.1 | 1750 | 48.3 | 7000 | 140 | 0.55 | 50 |
16 | 5/8 | 15.9 | 27.4 | 10.3 | 1500 | 41.4 | 6000 | 165 | 0.65 | 50 |
22 | 7/8 | 22.2 | 31.4 | 5.5 | 800 | 22.1 | 32000 | 187 | 0.69 | 20 |
28 | 1 1/8 | 28.6 | 38.1 | 4.3 | 625 | 17.2 | 25000 | 229 | 0.84 | 20 |
35 | 1 3/8 | 35.0 | 44.4 | 3.4 | 500 | 13.8 | 2000 | 267 | 1.03 | 20 |
60 | 2 3/8 | 60.5 | 73.0 | 2.4 | 350 | 9.6 | 14000 | 610 | 2.00 | 20 |
75 | 3 | 75.5 | 90.5 | 1.4 | 200 | 5.6 | 800 | 840 | 3.00 | 20 |
Relative Products:
Packaging & Shippin
Steel Wire Braided High Pressure SAE 100 R5 LPG Hose

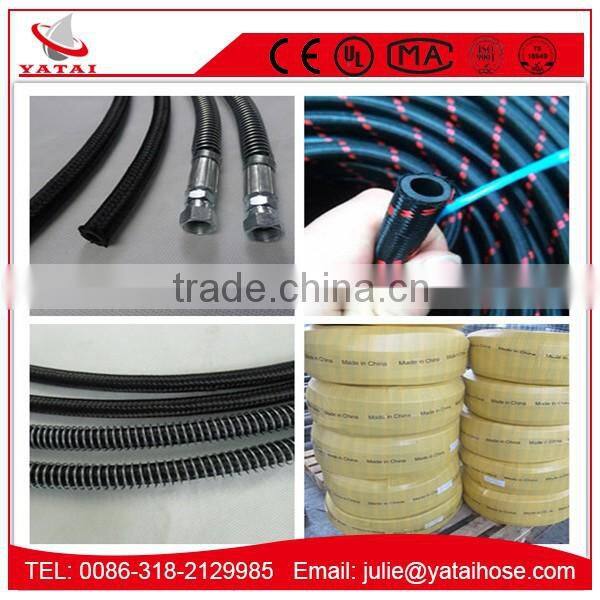

LPG Hose Pictures:
LPG Hose Buyers:
LPG Hose Processing Procedures:
Steel Wire Braided High Pressure SAE 100 R5 LPG Hose
The Relative Certificate:
