Steel Structure House Plans for Steel Structure Building 3 Storey High

A: Components of  light steel structure building:

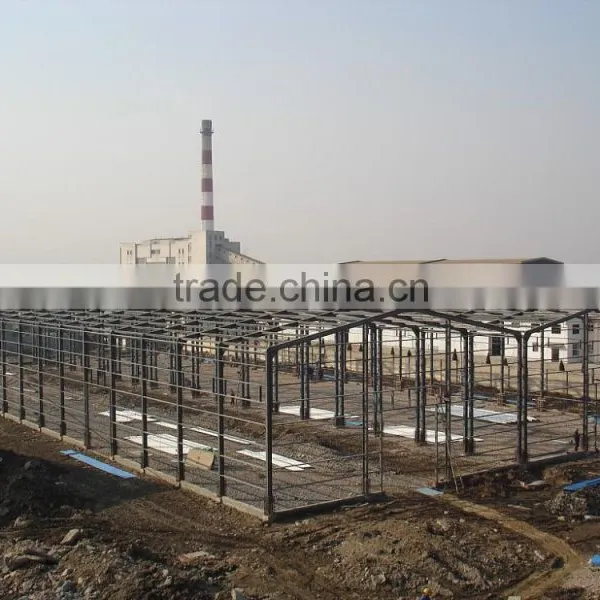

 1.     H / I  beam/column : welded together as the main support and frame

 2.     C purlin: link together as the subsidiary support and connection ( galvanized or painted)

 3.     Outer wall / roof material:

          EPS / rock wool / PU insulation sandwich panel and steel roofing sheet

 4.     Floor decking: secondary middle support

 5.     Windows : aluminum-alloy dual-pane window

 6.     Door: sandwich panel door or roller-shutter door

 7.     Crane: for goods lifting / loading.

 8.     FRP transparent sheet: to let light in.

 9.      Gutter & downpipe: water collection

10.    Various  bolts: foundation bolt/ high strength bolt/ self-tapping screw

B: The advantages of steel structure warehouse / workshop/ plant:

 1.     Economic: quick installed and saving the cost of construction

 2.     Short delivery time

 3.     Reliable quality: steel structure produced by our factory.

 4.     Large space: max span of prefab steel structure can reach 80meters

 5.     Good antiseismic performance due to high strength steel structure connection.

 6.     Flexibility:  can be dismantled and enlarged

 7.     Beautiful appearance: different colors applicable.

 8.     Long lifespan: can be used more than 30 years

C: Components photos of steel structure building for reference:

1.  Column Q235/ Q345 ( Galvanized or painted)

2.  I beam / H beam ( Galvanized or painted)

3. C purlin ( Galvanized or painted), also have Z purlin for use.

4. Floor decking sheet ( Galvanized only)

5.  Downspout and downpipe system

6.  Accessories: foundation bolts, high-strength bolts, steel corner, flashings,etc.

 7. Haiti School

8. Various steel structure warehouse / workshop /plant

Established in 2001, Weizhengheng Group covers an area of over 48,000 sq.m., with more than 1,000 employees from 9 subsidiary companies together with offices.

Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd

Weizhengheng Steel Structure Engineering Co., Ltd

Beijing Weizhengheng Metal Structure Engineering Co., Ltd

Shenyang Tianying Light Steel Color Plate Co., Ltd

Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd

Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd

Shandong Office

Manzhouli Office

Uganda Office

Our company is mainly engaged in production of various of steel coils, corrugated color steel sheets and sandwich panels, as well as large-scale steel structure design, production and installation.

2010    Big Five in Dubai

2011    Big Five in Dubai

2011    Mosbuild in Russia
2012    Usinagem in Brazil

2013    China Building & PMV Fair Jordan

2013    THABS in South Africa

2014    Ashgabat Exhibition in Turkmenistan

2014    THABS in South Africa

2010/2011/2012/2013/2014/2015    Canton Fair
To be continued...

D: Info. you need to provide for an exact quote:

1.    Size (length x width x height)

2.    Snow load ( if there are snow)

3.     Max. wind speed

4.     Roof / wall material: insulated sandwich panel or corrugated steel sheet

5.     Crane needed or not.
