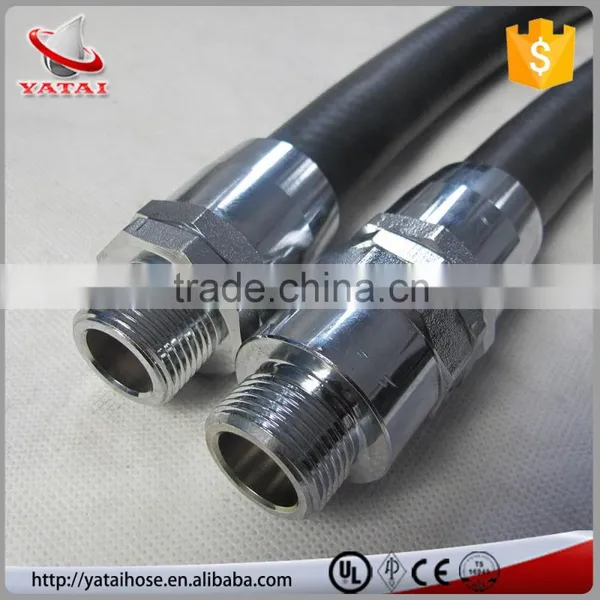

DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP photo-3
DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP photo-4
DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP photo-5
DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP photo-6
US$ 0.69 - 2.5 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
YATAI
Model Number:
6-102mm
Contact Supplier Request Quote Chat Now
Hengshui Yatai Especial Rubber Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name YATAI
Model Number 6-102mm

DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP

Product Description

      DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP

Tube : Oil resistant synthetic rubber

Reinforcement : Two,Four Six high tensile steel wire spiral layers

Cover : Abrasion and weather resistant synthetic rubber

Temperature range : -40 °c to 100 °c

Hydraulic Flexible Hose DIN EN 856 4SP

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight
inch mm mm mm MPa psi MPa psi mm kg/m
10 3/8 9.5 17.5 21.4 45.0 6500 180.0 26000 180 0.78
13 1/2 12.7 20.2 24.6 41.5 6000 166.0 24000 230 0.93
16 5/8 15.9 23.8 28.2 35.0 5000 140.0 20000 250 1.17
19 3/4 19.0 28.2 32.2 35.0 5000 140.0 20000 300 1.48
25 1 25.4 35.5 39.7 28.0 4000 112.0 16000 340 2.02
32 1-1/4 31.8 46.0 50.8 21.0 3000 84.0 12000 460 3.05
38 1-1/2 38.1 52.4 57.2 18.5 2700 74.0 10800 560 3.52
51 2 50.8 65.3 69.8 16.5 2400 66.0 9600 660 5.20

Hydraulic Flexible Hose DIN EN 856 4SH

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight
inch mm mm mm MPa psi MPa psi mm kg/m
19 3/4 19 29.2 33 42 6090 168 24360 280 1.61
25 1 25.4 36 39.9 38 5510 152 22040 340 2
32 1-1/4 31.8 42.9 47.1 32.5 4710 130 19850 460 2.64
38 1-1/2 38.1 49.8 55.1 29 4205 116 16820 560 3.36
51 2 50.8 64.2 69.7 25 3625 100 14500 700 4.98

Hydraulic Flexible Hose Sectional Drawing:

Hydraulic Flexible Hose Processing Procedures:

Hydraulic Flexible Hose Related Products:

Hydraulic Flexible Hose Equipment:

  Hydraulic Flexible Hose Pictures:

DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP

DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP

Packaging & Shipping



Hydraulic Flexible Hose Feedback and Certification:

Hydraulic Flexible Hose Raw Material :

DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP

Company Information

DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SP

HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.

QUALITY IS OUR COMPANY SOUL!!!

MAIN PRODUCT TYPE

PRODUCT DETAILS

Hydraulic Hose and Fitting

Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17)

Steel Wire Spiral Reinforcement Hose(2SP 4SP 4SH 6SP R9 R12 R13 R15)

Fibre Braided Covered Hose (R5)

Acid and Alkali Resistant Rubber Hose

Air Screw Compressor Hose

Middle Pressure Fibre Reinforcement Hose(R3 R6 1TE 2TE 3TE)

Thermoplastic Hose(SAE100R7 SAE100R8)

Nylon Hose(Single and Double Hose)

Industrial Hose

Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose

Special Hose

Concrete Pump Hose, High Pressure Drilling Hose, Inflatable Packers

Machine Equipment

Crimping Machine, Cutting Machine
