High Pressure Weather Resistant Wire Braided Hydraulic Flexible Hose
- 600000 Meter / Meters per Month
- Xingang Qingdao port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | YATAI | Model Number: | 5-102MM |
Product Description
High Pressure Weather Resistant Wire Braided Hydraulic Flexible Hose
High Pressure Weather Resistant Wire Braided Hydraulic Flexible Hose
Application:
Ideally Suited for High Pressure Hydraulic Oil Lines, Return Lines, Grease Lines, Water Lines and Power Steering Hoses
Rubber Hose Tube: Oil resistant Synthetic Rubber
Rubber Hose Reinforcement: High Tensile Steel Wire
Rubber Hose Cover: Abrasion, Ozone & Weather resistant Synthetic Rubber.
Working Temperature range: -40 °c to 121 °c.
Hydraulic Flexible Hose (SAE 100R1AT DIN EN 853 1SN)
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100 | 14280 | 89 | 0.19 | 50/100 |
6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90 | 12840 | 102 | 0.21 | 50/100 |
8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85 | 12280 | 114 | 0.24 | 50/100 |
10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72 | 10280 | 127 | 0.33 | 50/100 |
13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64 | 9180 | 178 | 0.41 | 50/100 |
16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52 | 7420 | 203 | 0.45 | 50/100 |
19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42 | 6000 | 241 | 0.58 | 50/100 |
25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20/40 |
38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20/40 |
51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20/40 |
Hydraulic Flexible Hose (SAE 100 R2AT DIN EN 853 2SN)
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
5 | 3/16 | 4.8 | 11.1 | 14.1 | 41.4 | 6000 | 160 | 23720 | 89 | 0.32 | 50/100 |
6 | 1/4 | 6.4 | 12.7 | 15.7 | 40 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
8 | 5/16 | 7.9 | 14.3 | 17.3 | 36 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
10 | 3/8 | 9.5 | 16.7 | 19.7 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
13 | 1/2 | 12.7 | 19.8 | 23.1 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
16 | 5/8 | 15.9 | 23 | 26.3 | 25 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
19 | 3/4 | 19.0 | 27 | 30.2 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
25 | 1 | 25.4 | 34.9 | 38.9 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
32 | 1 1/4 | 31.8 | 44.5 | 49.6 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20/40 |
38 | 1 1/2 | 38.1 | 50.8 | 56.0 | 9 | 1310 | 36 | 5140 | 508 | 2.65 | 20/40 |
51 | 2 | 50.8 | 63.5 | 68.6 | 8 | 1160 | 32 | 4560 | 635 | 3.42 | 20/40 |
Hydraulic Flexible Hose Drawing:
Hydraulic Flexible Hose Processing Procedures:
Hydraulic Flexible Hose Related Products:
Hydraulic Flexible Hose Equipment:

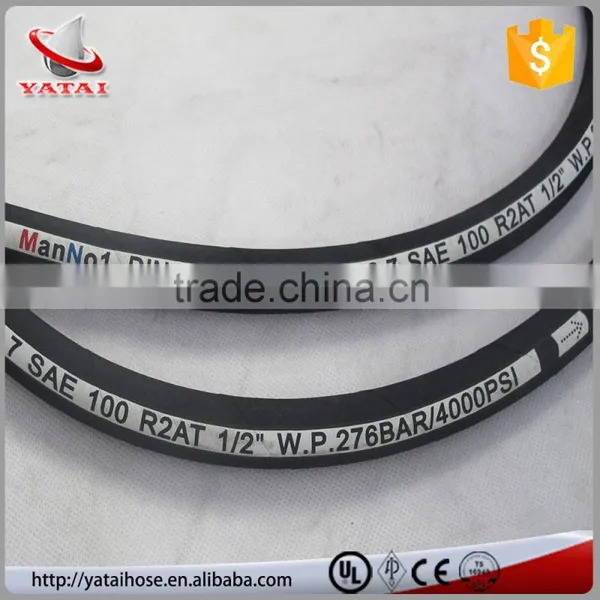

Hydraulic Flexible Hose Pictures:
Hydraulic Flexible Hose Feedback and Ceitification:
Hydraulic Flexible Hose Material :
High Pressure Weather Resistant Wire Braided Hydraulic Flexible Hose
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.
HIGH QUALITY IS OUR COMPANY SOUL!!!
we specialized in rubber hoses for more than 15 years, there are near 100 workers and
technology staff .10 person with many years experience.
Italy VP high speed braided machine of 6 sets improve production capacity and quality .
Hydraulic Flexible Hose Exhibition:
Our Factory:
Welcome to Inquiry for High Pressure Weather Resistant Wire Braided Hydraulic Flexible Hose:
:
A:Usually, 30%T/T in advanced, balance be paid against scan copy of B/L within 7 days for High Pressure Weather Resistant Wire Braided Hydraulic Flexible Hose.
Q2: How many do you accept for min order?
A:Yes. only for $100 min order.
Q3:Can you produce the hose with our own brand?
A:Yes.it is available for High Pressure Weather Resistant Wire Braided Hydraulic Flexible Hose.
Q4:What is the warrantee period?
A:There is 1 year warranty from date of EX-factory.
