Help CenterHigh Pressure Hose DIN/EN 854 1TE/2TE Oil Resistant Rubber Hose Hot Sale Hydraulic Hose Pipe Price List
Related Products
-
DIN EN 853 1SN High Pressure Steel Wire Braided Hydraulic HoseUS$ 0.9 - 3MOQ: 500 Meters -
DN 19 Wire Spiral Oil Resistant Hydraulic Flexible Hose EN 856 4SPUS$ 0.69 - 2.5MOQ: 100 Meters
-
4SP High Pressure Manufacture Wire Spiral Flexible Hydraulic HoseUS$ 0.7 - 2.5MOQ: 100 Meters
-
DN 25 Wire Braided Oil Resistant High Temperature Flexible Rubber HoseUS$ 0.63 - 2.5MOQ: 100 Meters
-
DN 19 Wire Braided High Pressure Flexible Hydraulic Hose ManufacturerUS$ 0.63 - 2.5MOQ: 100 Meters
High Pressure Hose DIN/EN 854 1TE/2TE Oil Resistant Rubber Hose Hot Sale Hydraulic Hose Pipe Price List
EN 856 4SH Hydraulic Rubber Hose DIN EN 853 2SN/SAE 100 R2 AT
SAE 100 R7 Hydraulic Rubber Hose
High Pressure Hose DIN/EN 854 1TE/2TE Oil Resistant Rubber Hose Hot Sale Hydraulic Hose Pipe Price List

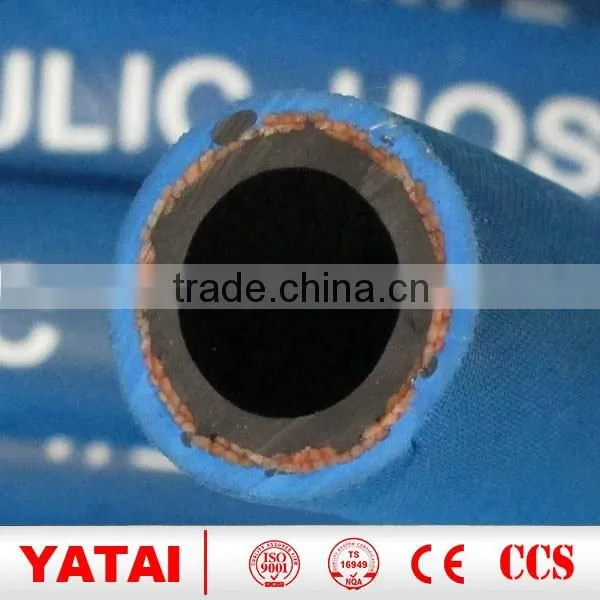

HOSE CONSTRUCTION: DIN/EN 854 1TE/2TE
Tube: oil resistant synthetic rubber
Reinforcement: one textile braid /wire braid
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°Cto +120°C
I.D |
O.D |
Workingpressure |
Testpressure |
Burstpressure |
BendRadius |
Weight |
||
mm |
lnch |
mm |
bar |
psi |
bar |
bar |
mm |
kg/m |
6.4 |
1/4 |
12.7 |
28 |
400 |
55 |
110 |
65 |
0.12 |
7.9 |
5/16 |
14.3 |
28 |
400 |
55 |
110 |
75 |
0.14 |
9.5 |
3/8 |
15.9 |
28 |
400 |
55 |
110 |
75 |
0.16 |
12.7 |
1/2 |
19.8 |
28 |
400 |
55 |
110 |
100 |
0.23 |
15.9 |
5/8 |
23 |
25 |
350 |
49 |
100 |
125 |
0.29 |
19 |
3/4 |
26.6 |
21 |
305 |
49 |
83 |
140 |
0.38 |
25.4 |
1 |
35 |
17 |
350 |
49 |
108 |
150 |
0.46 |
Main products
Main Product Type |
Product Details |
Hydraulic Hose and Fitting |
Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17) |
Steel Wire Spiral Reinforcement Hose (2SP 4SP 4SH 6SP R9 R12 R13 R15) | |
Fabric Braided Covered Hose(R5) | |
Acid and Alkali Resistant Rubber Hose | |
Air Screw Compressor Hose | |
Fabric Reinforcement Hose(R3 R6 1TE 2TE 3TE) | |
Thermoplastic Hose(R7 R8) | |
Nylon Hose(Single and Double Hose) | |
Industrial Hose |
Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose |
Special Hose |
Concrete Hose, Drilling Hose, Inflatable Packer |
Machine Equipment |
Crimping Machine, Cutting Machine |
High Pressure Hose DIN/EN 854 1TE/2TE Oil Resistant Rubber Hose Hot Sale Hydraulic Hose Pipe Price List
High Pressure Hose DIN/EN 854 1TE/2TE Oil Resistant Rubber Hose Hot Sale Hydraulic Hose Pipe Price List
Raw Materials for Rubber Hose:
High Pressure Hose DIN/EN 854 1TE/2TE Oil Resistant Rubber Hose Hot Sale Hydraulic Hose Pipe Price List
Exhibition:
Certificate:
Hose Equipment and Processing Procedures:
High Pressure Hose DIN/EN 854 1TE/2TE Oil Resistant Rubber Hose Hot Sale Hydraulic Hose Pipe Price List
Q1. Who is Yatai?
Yatai is a reliable manufacturer and exporter of hydraulic hose, rubber hose and PVC hose in China for more than 16 years in the market.
Q2. What are you offering?
1) Hydraulic Hose (R1AT/1SN, R2AT/2SN, 4SP, 4SH, R12, R13, R15...)
2) Rubber Hose (Air/Water hose, Oil/fuel hose, Suction and discharge hose, Sandblast hose, truck tank hose, fire hose, oilfield hose...)
Q3. How Can I get to Yatai?
Yatai is in Hebei, you can fly to Shijiahzuang airport or by bullet train to hengshui railway station, then we will pick you up.
Q4. What is the delivery time for one 20ft container?
Usually it is 20 days after receipt of deposit.
Q5. What is your payment term?
Usually it is T/T 30% in advance; T/T 70% against copy of B/L.
Q6. What is your price term?
The price is based on FOB, CFR or CIF.
Q7. What is your port?
Xingang port, Qingdao port,
Q8. Quality control, warranty and guarantee
We control the quality from raw material. We only work with stated enterprise and their quality is stable; Our workers have in rich experience, our production machinery is advanced; Before packaging, we make very strictly test and inspection by QC.
We guarantee quality within one year.
Using Instruction:
A. When choosing hose, please pay attention to the folloings:
Working environment: working temperature, weather, and the connection with other materials.
Conveyable Matter: Liquid, gas, solid, mixture of above matters.
Convey ways: delivery matter under the pressure, delivery and suction under vacuum.
Working condition: the pressure and temperature for conveying matter, use frquency, impulse and movement.
Installation: Bending,vibration of the system, the risk of damaged is caused by hitting and friction, application of the right connecting mode.
B. There is limited life for the hose assemble;please pay attention that the followings wound can reduce the hose useful life:
a. Making the bend radius smaller than the min bend radius.
b. Twisting, stretching, weld line, squeeze or corrode the hose.
c. To be used exceeded max temperature or lower the min temperature.
d. To be used exceeded the impulse pressure of the max working pressure(the impulse pressure means the rapid rise of pressure).
e. The quality of fitting is not up to the standard and assembling is not well.
C. Requirements for using hose:
a. The pressure(including the impulse pressure)filled in the hose must not be exceeded the max working pressure.
b. Hose can not be used under the temperature not stipulated or suggested including the conveyable matter.
c. Hose can not be used under the bend radius that is smaller than the min bend radius stipulated or suggested, or it will block the matter passing, and reduce the hose useful life. The hose should be prevent from twisting or warping around the connection part, because the bending for this part will damage the reinforcement, as a result, the hose will be damaged quickly.
d. The hose can not be used when it is twisted.
e. The edge of hose fitting should be smooth; the size of mandril, sleeve or other accessory must be in confirmed. Less or more control of assembling power will also damage the assembly,.
f. There is a limited life for hose, please check and change it regularly.
