YATAI Oil Resistant High Pressure Flexible Smooth Hydraulic Hose Pipe
Main Product Type |
Product Details |
Hydraulic Hose and Fitting |
Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17) |
Steel Wire Spiral Reinforcement Hose (2SP 4SP 4SH 6SP R9 R12 R13 R15) | |
Fabric Braided Covered Hose(R5) | |
Acid and Alkali Resistant Rubber Hose | |
Air Screw Compressor Hose | |
Fabric Reinforcement Hose(R3 R6 1TE 2TE 3TE) | |
Thermoplastic Hose(R7 R8) | |
Nylon Hose(Single and Double Hose) | |
Industrial Hose |
Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose |
Special Hose |
Concrete Hose, Drilling Hose, Inflatable Packer |
Machine Equipment |
Crimping Machine, Cutting Machine |

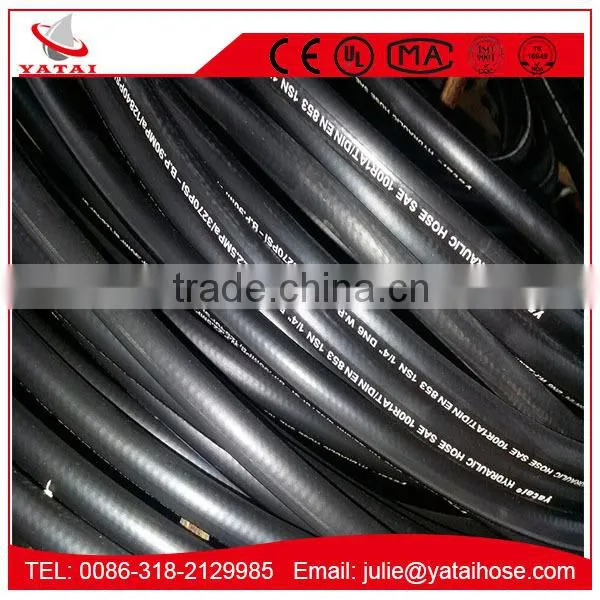

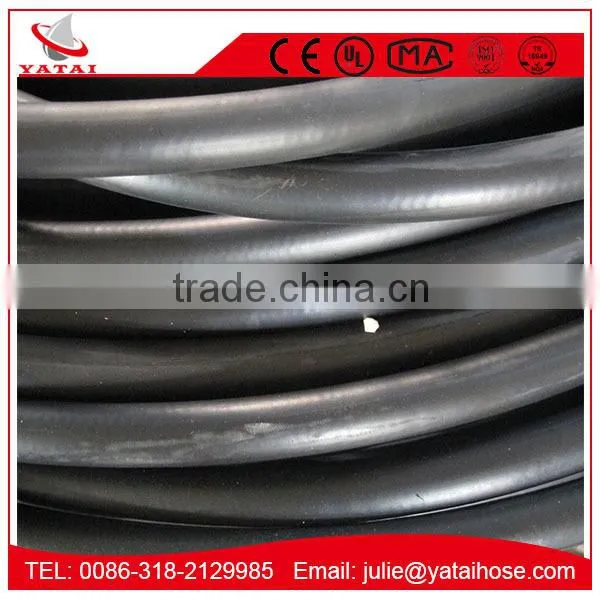

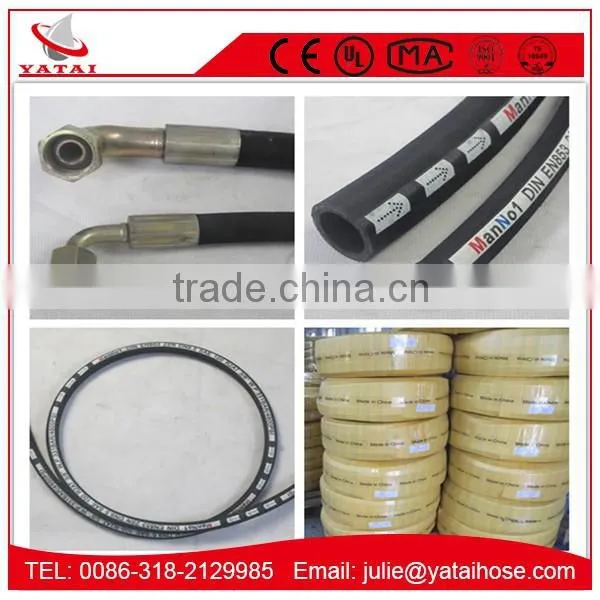

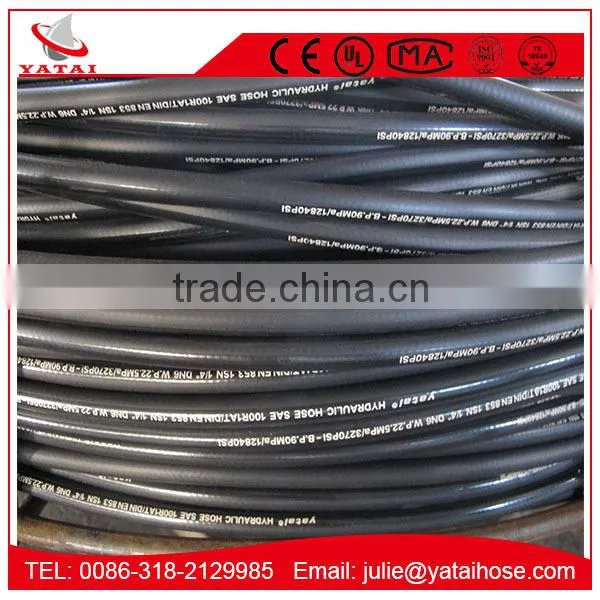

YATAI Oil Resistant High Pressure Flexible Smooth Hydraulic Hose Pipe
Application:
Ideally Suited for High Pressure Hydraulic Oil Lines, Return Lines, Grease Lines, Water Lines and Power Steering Hoses
Rubber Hose Tube: Oil resistant Synthetic Rubber
Rubber Hose Reinforcement: High Tensile Steel Wire
Rubber Hose Cover: Abrasion, Ozone & Weather resistant Synthetic Rubber.
Working Temperature range: -40 °c to 121 °c.

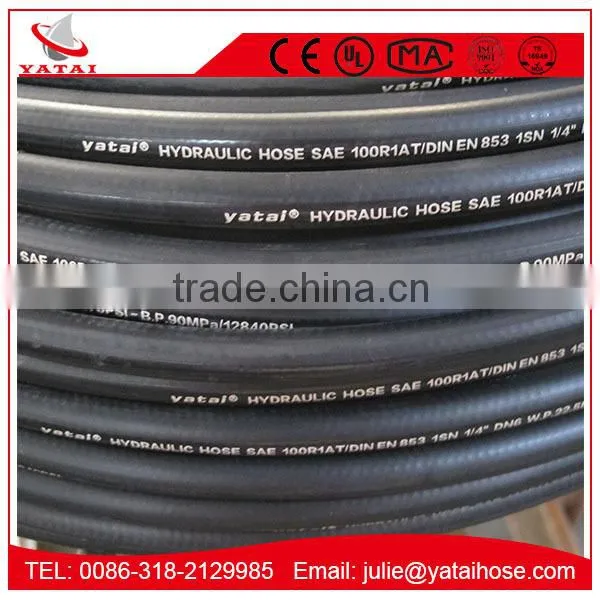

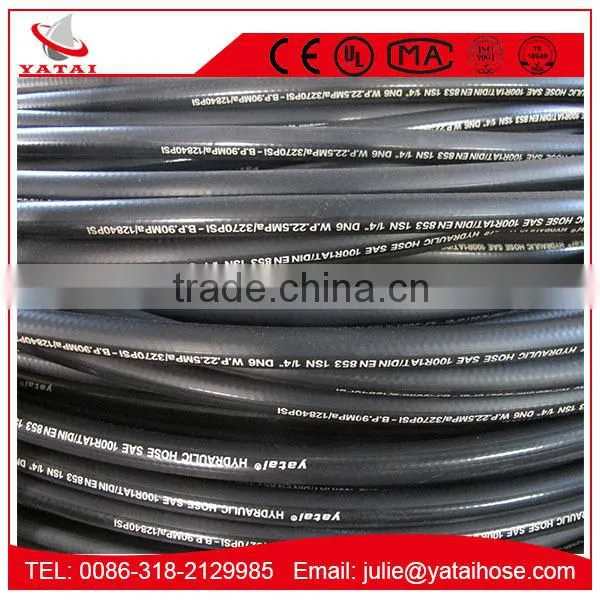

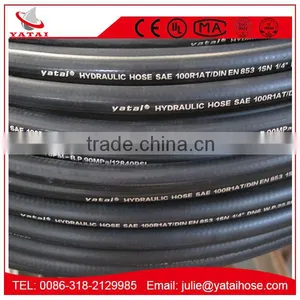

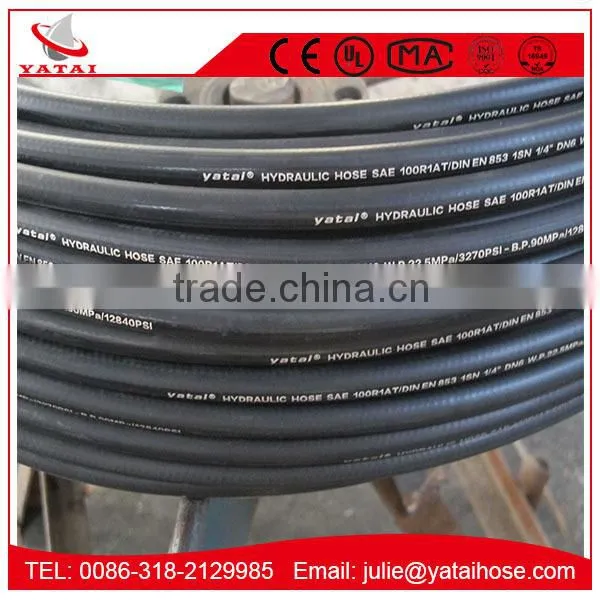

SINGLE WIRE BRAIDED HOSES (SAE 100R1AT DIN EN 853 1SN)
DN |
Hose I.D |
Wire O.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
m |
|
5 |
3/16 |
4.8 |
9.5 |
11.8 |
25.0 |
3630 |
100 |
14280 |
89 |
0.19 |
50/100 |
6 |
1/4 |
6.4 |
11.1 |
13.4 |
22.5 |
3270 |
90 |
12840 |
102 |
0.21 |
50/100 |
8 |
5/16 |
7.9 |
12.7 |
15.0 |
21.5 |
3120 |
85 |
12280 |
114 |
0.24 |
50/100 |
10 |
3/8 |
9.5 |
15.1 |
17.4 |
18.0 |
2615 |
72 |
10280 |
127 |
0.33 |
50/100 |
13 |
1/2 |
12.7 |
18.3 |
20.6 |
16.0 |
2320 |
64 |
9180 |
178 |
0.41 |
50/100 |
16 |
5/8 |
15.9 |
21.4 |
23.7 |
13.0 |
1890 |
52 |
7420 |
203 |
0.45 |
50/100 |
19 |
3/4 |
19.0 |
25.4 |
27.7 |
10.5 |
1530 |
42 |
6000 |
241 |
0.58 |
50/100 |
25 |
1 |
25.4 |
33.3 |
35.6 |
8.8 |
1280 |
35.0 |
5020 |
305 |
0.88 |
50 |
32 |
1 1/4 |
31.8 |
40.5 |
43.5 |
6.3 |
920 |
25.0 |
3600 |
419 |
1.23 |
20/40 |
38 |
1 1/2 |
38.1 |
46.8 |
50.6 |
5.0 |
730 |
20.0 |
2860 |
508 |
1.51 |
20/40 |
51 |
2 |
50.8 |
60.2 |
64.0 |
4.0 |
580 |
16.0 |
2280 |
635 |
1.97 |
20/40 |
TWO WIRE BRAIDED HOSE(SAE 100 R2AT DIN EN 853 2SN)
DN |
Hose I.D |
Wire O.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
m |
|
5 |
3/16 |
4.8 |
11.1 |
14.1 |
41.4 |
6000 |
160 |
23720 |
89 |
0.32 |
50/100 |
6 |
1/4 |
6.4 |
12.7 |
15.7 |
40 |
5800 |
160 |
22840 |
102 |
0.36 |
50/100 |
8 |
5/16 |
7.9 |
14.3 |
17.3 |
36 |
5250 |
140 |
20000 |
114 |
0.45 |
50/100 |
10 |
3/8 |
9.5 |
16.7 |
19.7 |
33.1 |
4800 |
132 |
18840 |
127 |
0.54 |
50/100 |
13 |
1/2 |
12.7 |
19.8 |
23.1 |
27.6 |
4000 |
110 |
15720 |
178 |
0.68 |
50/100 |
16 |
5/8 |
15.9 |
23 |
26.3 |
25 |
3630 |
100 |
14280 |
203 |
0.8 |
50/100 |
19 |
3/4 |
19.0 |
27 |
30.2 |
21.5 |
3120 |
85 |
12280 |
241 |
0.94 |
50/100 |
25 |
1 |
25.4 |
34.9 |
38.9 |
16.5 |
2400 |
65 |
9420 |
305 |
1.35 |
50 |
32 |
1 1/4 |
31.8 |
44.5 |
49.6 |
12.5 |
1820 |
50 |
7140 |
419 |
2.15 |
20/40 |
38 |
1 1/2 |
38.1 |
50.8 |
56.0 |
9 |
1310 |
36 |
5140 |
508 |
2.65 |
20/40 |
51 |
2 |
50.8 |
63.5 |
68.6 |
8 |
1160 |
32 |
4560 |
635 |
3.42 |
20/40 |
YATAI Oil Resistant High Pressure Flexible Smooth Hydraulic Hose Pipe:
