Home > Products > DIN Hydraulic Hose > YATAI Oil Resistant High Pressure Flexible Smooth Rubber Hose

Share|

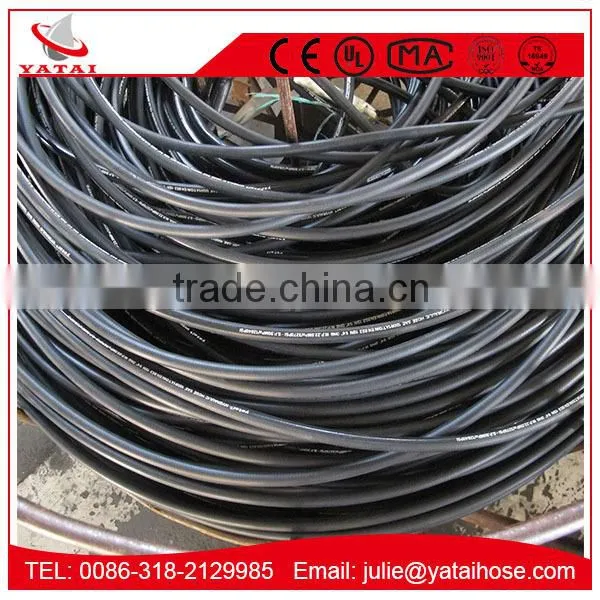

YATAI Oil Resistant High Pressure Flexible Smooth Rubber Hose

Name: YATAI Oil Resistant High Pressure Flexible Smooth Rubber Hose
Brand: YATAI
Price: USD $0.6 - 2.5 / Meter

FOB Price

USD $0.6 - $2.5 / Meter

500 Meters(Min.Order)

Supply Ability 100000000 Meter / Meters per Month
Port Xingang Port
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Hebei, China

Brand Name:

YATAI

Model Number:

6-102mm

Product Description

YATAI Oil Resistant High Pressure Flexible Smooth Rubber Hose

Relative Products:

Company Information

HENGSHUI YATAI EEPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.

QUALITY IS OUR COMPANY SOUL!!!

Main export to USA, UK, France, Russia, Brazil, Poland, Dubai, Chile,Asia and so on

Main products:

Main Product Type	Product Details
Hydraulic Hose and Fitting	Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17)
	Steel Wire Spiral Reinforcement Hose (2SP 4SP 4SH 6SP R9 R12 R13 R15)
	Fabric Braided Covered Hose(R5)
	Acid and Alkali Resistant Rubber Hose
	Air Screw Compressor Hose
	Fabric Reinforcement Hose(R3 R6 1TE 2TE 3TE)
	Thermoplastic Hose(R7 R8)
	Nylon Hose(Single and Double Hose)
Industrial Hose	Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose
Special Hose	Concrete Hose, Drilling Hose, Inflatable Packer
Machine Equipment	Crimping Machine, Cutting Machine

Product Description

YATAI Oil Resistant High Pressure Flexible Smooth Rubber Hose

Application:

Ideally Suited for High Pressure Hydraulic Oil Lines, Return Lines, Grease Lines, Water Lines and Power Steering Hoses

Rubber Hose Tube: Oil resistant Synthetic Rubber

Rubber Hose Reinforcement: High Tensile Steel Wire

Rubber Hose Cover: Abrasion, Ozone & Weather resistant Synthetic Rubber.

Working Temperature range: -40 °c to 121 °c.

SINGLE WIRE BRAIDED HOSES (SAE 100R1AT DIN EN 853 1SN)

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	m
5	3/16	4.8	9.5	11.8	25.0	3630	100	14280	89	0.19	50/100
6	1/4	6.4	11.1	13.4	22.5	3270	90	12840	102	0.21	50/100
8	5/16	7.9	12.7	15.0	21.5	3120	85	12280	114	0.24	50/100
10	3/8	9.5	15.1	17.4	18.0	2615	72	10280	127	0.33	50/100
13	1/2	12.7	18.3	20.6	16.0	2320	64	9180	178	0.41	50/100
16	5/8	15.9	21.4	23.7	13.0	1890	52	7420	203	0.45	50/100
19	3/4	19.0	25.4	27.7	10.5	1530	42	6000	241	0.58	50/100
25	1	25.4	33.3	35.6	8.8	1280	35.0	5020	305	0.88	50
32	1 1/4	31.8	40.5	43.5	6.3	920	25.0	3600	419	1.23	20/40
38	1 1/2	38.1	46.8	50.6	5.0	730	20.0	2860	508	1.51	20/40
51	2	50.8	60.2	64.0	4.0	580	16.0	2280	635	1.97	20/40

TWO WIRE BRAIDED HOSE(SAE 100 R2AT DIN EN 853 2SN)

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	m
5	3/16	4.8	11.1	14.1	41.4	6000	160	23720	89	0.32	50/100
6	1/4	6.4	12.7	15.7	40	5800	160	22840	102	0.36	50/100
8	5/16	7.9	14.3	17.3	36	5250	140	20000	114	0.45	50/100
10	3/8	9.5	16.7	19.7	33.1	4800	132	18840	127	0.54	50/100
13	1/2	12.7	19.8	23.1	27.6	4000	110	15720	178	0.68	50/100
16	5/8	15.9	23	26.3	25	3630	100	14280	203	0.8	50/100
19	3/4	19.0	27	30.2	21.5	3120	85	12280	241	0.94	50/100
25	1	25.4	34.9	38.9	16.5	2400	65	9420	305	1.35	50
32	1 1/4	31.8	44.5	49.6	12.5	1820	50	7140	419	2.15	20/40
38	1 1/2	38.1	50.8	56.0	9	1310	36	5140	508	2.65	20/40
51	2	50.8	63.5	68.6	8	1160	32	4560	635	3.42	20/40

Packaging & Shipping

YATAI Oil Resistant High Pressure Flexible Smooth Rubber Hose:

Our Services

Welcome to Inquiry For YATAI Oil Resistant High Pressure Flexible Smooth Rubber Hose

Contact Us

Hengshui Yatai Especial Rubber Products Co., Ltd.: Contact nameJulie Ren; Phone86-318-2129985; AddressNo.1449,Yongan Road Hengshui,Hebei
