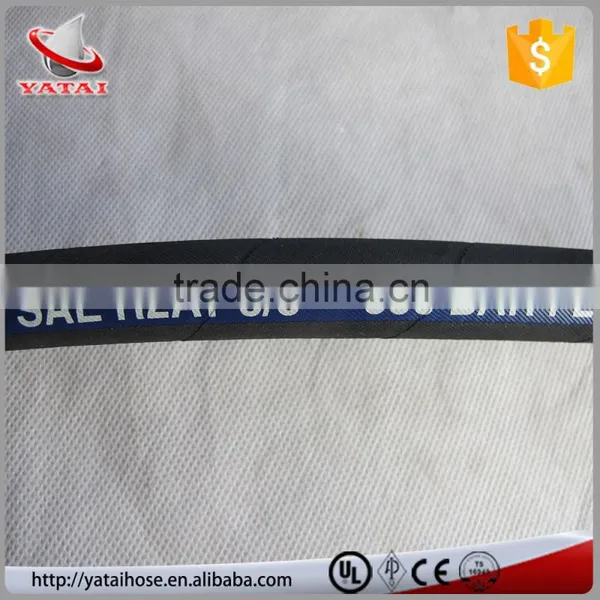

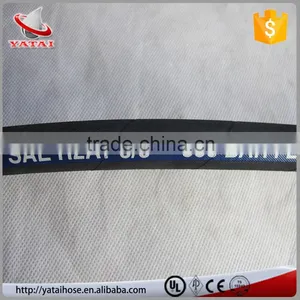

YATAI Manufacture Wire Braided Hydraulic Flexible Hose DIN EN 853 2SN
YATAI Manufacture Wire Braided Hydraulic Flexible Hose DIN EN 853 2SN
Application:
Ideally Suited for High Pressure Hydraulic Oil Lines, Return Lines, Grease Lines, Water Lines and Power Steering Hoses
Rubber Hose Tube: Oil resistant Synthetic Rubber
Rubber Hose Reinforcement: High Tensile Steel Wire
Rubber Hose Cover: Abrasion, Ozone & Weather resistant Synthetic Rubber.
Working Temperature range: -40 °c to 121 °c.
Hydraulic Flexible Hose DIN EN 853 2SN (SAE 100R1AT DIN EN 853 1SN)
DN |
Hose I.D |
Wire O.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
m |
|
5 |
3/16 |
4.8 |
9.5 |
11.8 |
25.0 |
3630 |
100 |
14280 |
89 |
0.19 |
50/100 |
6 |
1/4 |
6.4 |
11.1 |
13.4 |
22.5 |
3270 |
90 |
12840 |
102 |
0.21 |
50/100 |
8 |
5/16 |
7.9 |
12.7 |
15.0 |
21.5 |
3120 |
85 |
12280 |
114 |
0.24 |
50/100 |
10 |
3/8 |
9.5 |
15.1 |
17.4 |
18.0 |
2615 |
72 |
10280 |
127 |
0.33 |
50/100 |
13 |
1/2 |
12.7 |
18.3 |
20.6 |
16.0 |
2320 |
64 |
9180 |
178 |
0.41 |
50/100 |
16 |
5/8 |
15.9 |
21.4 |
23.7 |
13.0 |
1890 |
52 |
7420 |
203 |
0.45 |
50/100 |
19 |
3/4 |
19.0 |
25.4 |
27.7 |
10.5 |
1530 |
42 |
6000 |
241 |
0.58 |
50/100 |
25 |
1 |
25.4 |
33.3 |
35.6 |
8.8 |
1280 |
35.0 |
5020 |
305 |
0.88 |
50 |
32 |
1 1/4 |
31.8 |
40.5 |
43.5 |
6.3 |
920 |
25.0 |
3600 |
419 |
1.23 |
20/40 |
38 |
1 1/2 |
38.1 |
46.8 |
50.6 |
5.0 |
730 |
20.0 |
2860 |
508 |
1.51 |
20/40 |
51 |
2 |
50.8 |
60.2 |
64.0 |
4.0 |
580 |
16.0 |
2280 |
635 |
1.97 |
20/40 |
Hydraulic Flexible Hose DIN EN 853 2SN (SAE 100 R2AT DIN EN 853 2SN)
DN |
Hose I.D |
Wire O.D |
Hose O.D |
Working Pressure |
Burst Pressure |
Minimum Bend Radius |
Weight |
Length |
|||
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
m |
|
5 |
3/16 |
4.8 |
11.1 |
14.1 |
41.4 |
6000 |
160 |
23720 |
89 |
0.32 |
50/100 |
6 |
1/4 |
6.4 |
12.7 |
15.7 |
40 |
5800 |
160 |
22840 |
102 |
0.36 |
50/100 |
8 |
5/16 |
7.9 |
14.3 |
17.3 |
36 |
5250 |
140 |
20000 |
114 |
0.45 |
50/100 |
10 |
3/8 |
9.5 |
16.7 |
19.7 |
33.1 |
4800 |
132 |
18840 |
127 |
0.54 |
50/100 |
13 |
1/2 |
12.7 |
19.8 |
23.1 |
27.6 |
4000 |
110 |
15720 |
178 |
0.68 |
50/100 |
16 |
5/8 |
15.9 |
23 |
26.3 |
25 |
3630 |
100 |
14280 |
203 |
0.8 |
50/100 |
19 |
3/4 |
19.0 |
27 |
30.2 |
21.5 |
3120 |
85 |
12280 |
241 |
0.94 |
50/100 |
25 |
1 |
25.4 |
34.9 |
38.9 |
16.5 |
2400 |
65 |
9420 |
305 |
1.35 |
50 |
32 |
1 1/4 |
31.8 |
44.5 |
49.6 |
12.5 |
1820 |
50 |
7140 |
419 |
2.15 |
20/40 |
38 |
1 1/2 |
38.1 |
50.8 |
56.0 |
9 |
1310 |
36 |
5140 |
508 |
2.65 |
20/40 |
51 |
2 |
50.8 |
63.5 |
68.6 |
8 |
1160 |
32 |
4560 |
635 |
3.42 |
20/40 |
Hydraulic Flexible Hose DIN EN 853 2SN Drawing:
Hydraulic Flexible Hose DIN EN 853 2SN Processing Procedures:
Hydraulic Flexible Hose DIN EN 853 2SN Related Products:
Hydraulic Flexible Hose DIN EN 853 2SN Equipment:
Hydraulic Flexible Hose DIN EN 853 2SN Pictures:
Hydraulic Flexible Hose DIN EN 853 2SN Feedback and Ceitification:
Hydraulic Flexible Hose DIN EN 853 2SN Material :
YATAI Manufacture Wire Braided Hydraulic Flexible Hose DIN EN 853 2SN
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.
HIGH QUALITY IS OUR COMPANY SOUL!!!
we specialized in rubber hoses for more than 15 years, there are near 100 workers and
technology staff .10 person with many years experience.
Italy VP high speed braided machine of 6 sets improve production capacity and quality .
Hydraulic Flexible Hose DIN EN 853 2SN Exhibition:
Our Factory:
Welcome to Inquiry for YATAI Manufacture Wire Braided Hydraulic Flexible Hose DIN EN 853 2SN:
:
A:Usually, 30%T/T in advanced, balance be paid against scan copy of B/L within 7 days for YATAI Manufacture Wire Braided Hydraulic Flexible Hose DIN EN 853 2SN.
Q2: How many do you accept for min order?
A:Yes. only for $100 min order.
Q3:Can you produce the hose with our own brand?
A:Yes.it is available for YATAI Manufacture Wire Braided Hydraulic Flexible Hose DIN EN 853 2SN.
Q4:What is the warrantee period?
A:There is 1 year warranty from date of EX-factory.
