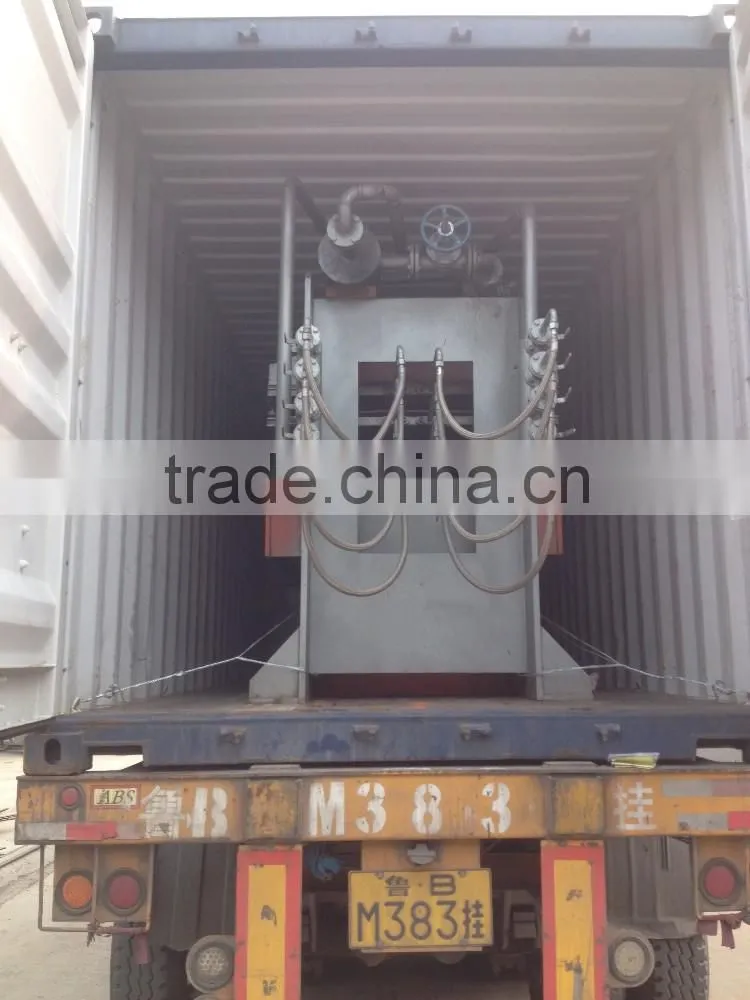

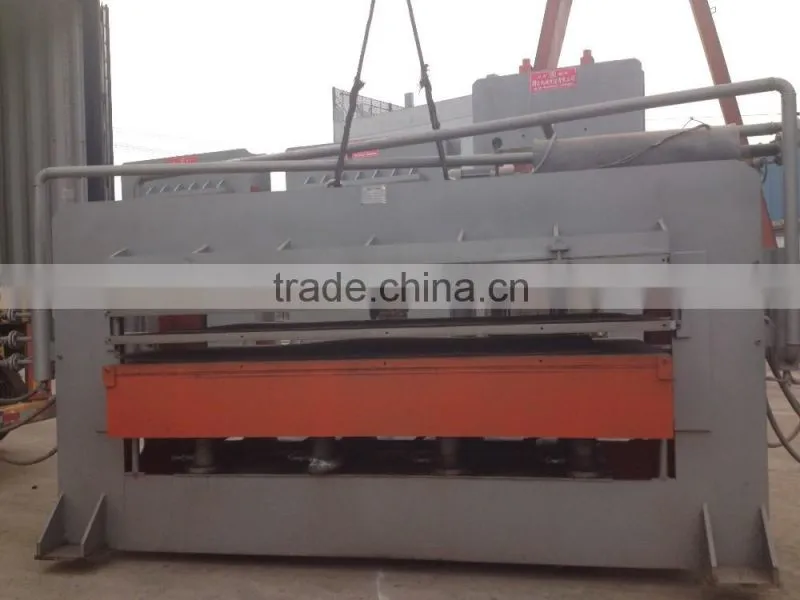

hydraulic hot press 4'*8' BY21-4*8/120ton(3)D
- 20 Set / Sets per Month
- Qingdao
- T/T
-
new hydraulic plywood hot press machine/hot press for plywood BY21-4*8/120ton(3)D
-
melamine boards press/hydraulic hot press BY21-4*8/120ton(3)D
-
hydraulic woodworking hot press/hydraulic door hot press for kinds of furnitures 4'*8' BY21-4*8/120ton(3)D
-
Pneumatic composer machine
-
Woodworking Hydraulic composer pneumatic composer
-
Hydarulic clamp carrier press machine composer
Product Details
| Condition: | New | Type: | Hot Press Machine | Place of Origin: | China |
| Brand Name: | SEFE | Model Number: | BY214*8/900(3-15)D | Voltage: | 380V |
| Power(W): | 5.5K | Dimension(L*W*H): | 4900*1600*2150MM | Weight: | 7,000kgs-10,000kgs |
| Certification: | CE ISO9001 | Warranty: | 1 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
in bulk or wood box.
Product Description
hydraulic hot press 4'*8' BY21-4*8/120ton(3)D
1. full-automatic and manual integration.
2.CE, ISO9001
3.Woodworking Machinery,plywood hot press,veneer hot press.
4.Model: BY214*8/900(3-15)D
5.Save Electricity 20% at least.
Model | BY21-4'*8'/1200-11 |
Frame style | Combination frame |
Quantity and Diameter of Cylinder | 6 units Φ320mm |
Nominal Pressure | 1200Tons |
Quantity of layers | 11 layers |
Separation between layers | 70mm |
Stroke of Cylinder | 1050mm |
No-load closing time | About 15s |
Hydraulic system control method | Manually/Automatic controlled |
Hydraulic system pressure | 25MPa |
Main motor | 11KW |
Pressurized motor | 7.5KW |
Main pump | Shanghai Aviation 250 pump |
Pressurized pump | 10ml/rev plunger pump |
Heating platen(working table size) | 2700*1370*42mm |
Heating Meduim in the heating platen | steam or heat transfer oils |
main frame steel plate thickness | 35,22,12mm |
Upper, Bottom crossbeam | 900,800,400mm |
Movable crossbeam | 2700*1370*400mm |
Dimensions of Main frame | 3560*1370*4240mm |
Weight | 32000KG |
Production Capacity | about 30 sheets of plywood in one hour |
1. Packing in Bulk or wood box.
2. Shipping: 20-30 days after deposit.
BASED ON MORE THAN TEN YEARS EXPORT EXPERIENCES IN WOODWORKING MACHINERY,WE OFFER A FULL LINE OF HIGH QUANLITY CHINA HOT PRESS,PRE-PRESS,SANDER,WOOD VENEER DRYER MACHINE.
